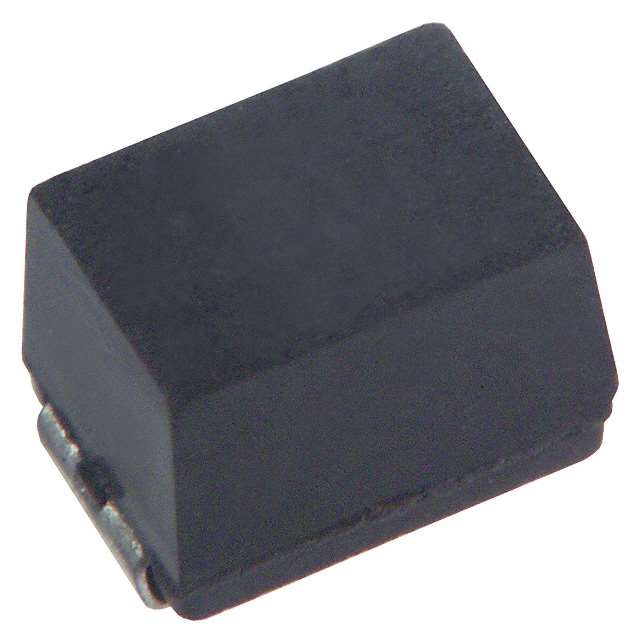

ELJ-FBR Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 220NH 700MA 300MOHM SM
| Part | Mounting Type | Q @ Freq | Shielding | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Frequency - Self Resonant | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Inductance Frequency - Test | Inductance | Type | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] | Current Rating (Amps) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Surface Mount | 25.2 MHz 30 | Unshielded | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 230 MHz | 3.4 mm | 0.134 in | 1812 (4532 Metric) | 1 MHz | 220 nH | Wirewound | 85 °C | -20 C | 300 mOhm | 700 mA | 20 % |
Panasonic Industrial Automation Sales | Surface Mount | 25.2 MHz 30 | Unshielded | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | 90 MHz | 3.4 mm | 0.134 in | 1812 (4532 Metric) | 1 MHz | 820 nH | Wirewound | 85 °C | -20 C | 500 mOhm | 0.5 A | 20 % |
