AHU2 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB DPDT 3A 125V
| Part | Mechanical Life | Electrical Life | Actuator Type | Panel Cutout Dimensions [diameter] | Circuit | Voltage Rating - AC | Switch Function | Current Rating (Amps) | Illumination Type, Color | Actuator Marking | Features | Mounting Type | Color - Actuator/Cap | Ingress Protection | Type | Termination Style | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

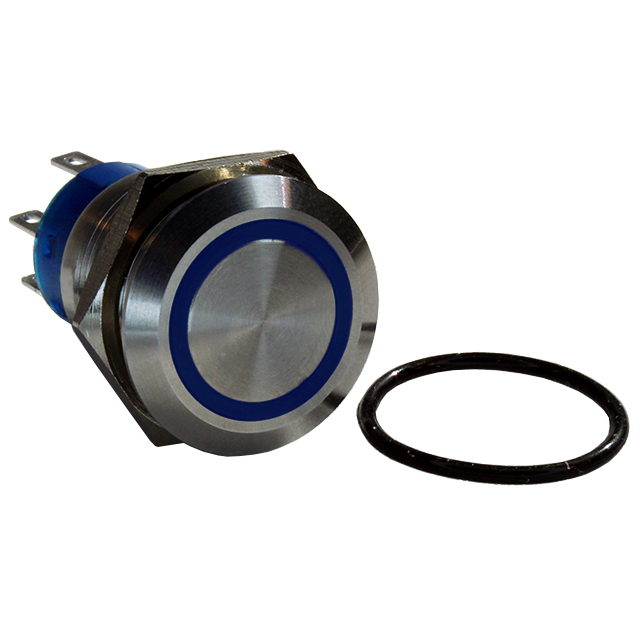

 CIT Relay and Switch | 500000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-On | 3 A | Blue LED | No Marking | Stainless Steel | Panel Mount Front | Silver | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | 12 VDC |
 CIT Relay and Switch | 500000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-On | 3 A | LED Red | No Marking | Panel Mount Front | Black | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | ||
 CIT Relay and Switch | 1000000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-Mom | 3 A | LED Red | No Marking | Stainless Steel | Panel Mount Front | Silver | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | |

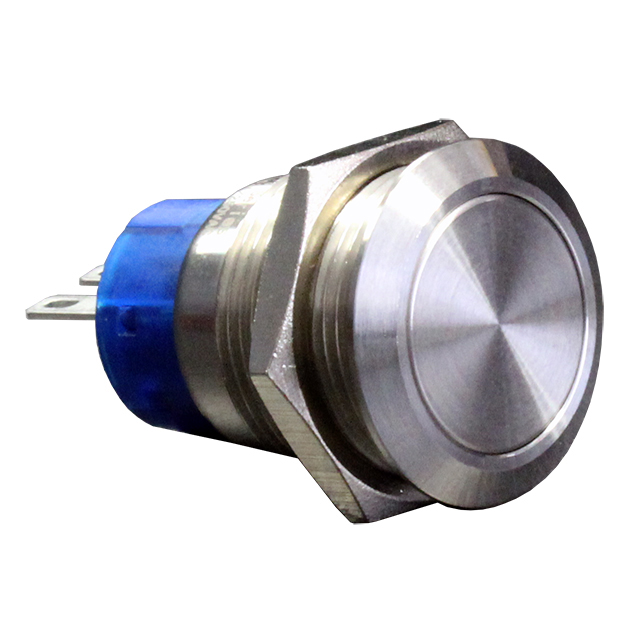

 CIT Relay and Switch | 500000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-On | 3 A | No Marking | Stainless Steel | Panel Mount Front | Silver | IP67 - Dust Tight Waterproof | Anti-Vandal | Solder Quick Connect - 0.110" (2.8mm) | ||

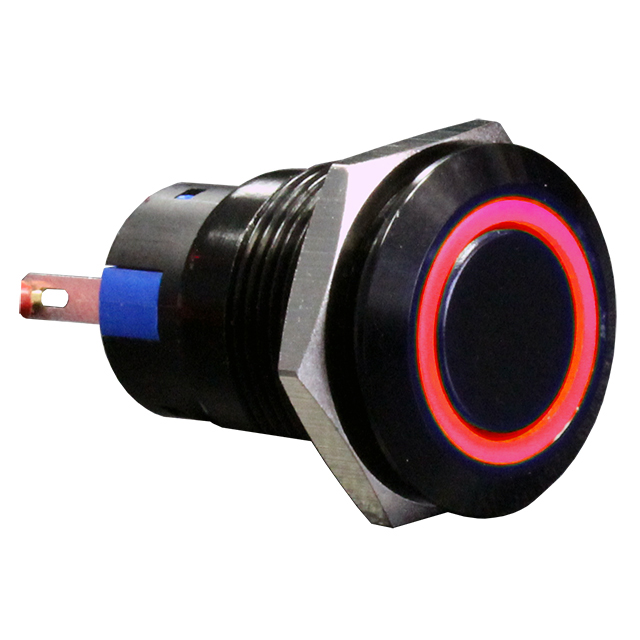

 CIT Relay and Switch | 1000000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-Mom | 3 A | LED Red | No Marking | Panel Mount Front | Black | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | ||
 CIT Relay and Switch | 1000000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-Mom | 3 A | LED Red | No Marking | Stainless Steel | Panel Mount Front | Silver | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | |
 CIT Relay and Switch | 500000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-On | 3 A | Blue LED | No Marking | Stainless Steel | Panel Mount Front | Silver | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | |
CIT Relay and Switch | 500000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-On | 3 A | LED Red | No Marking | Panel Mount Front | Black | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | ||
 CIT Relay and Switch | 500000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-On | 3 A | Blue LED | No Marking | Stainless Steel | Panel Mount Front | Silver | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) | |

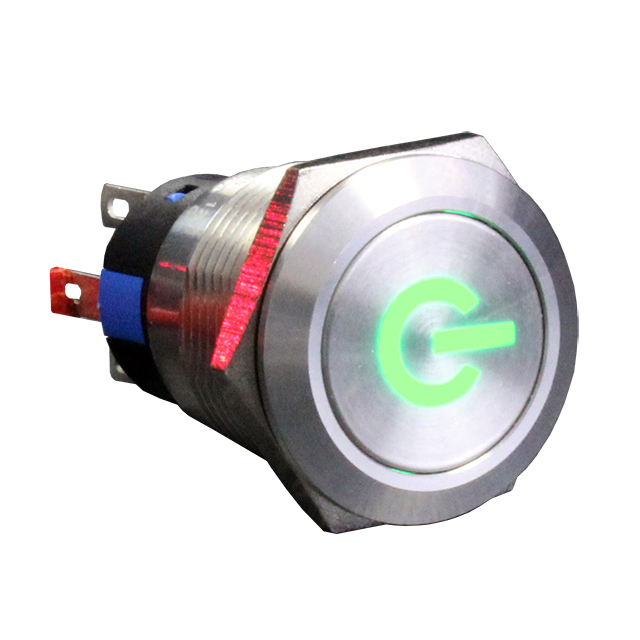

 CIT Relay and Switch | 1000000 Cycles | 50000 Cycles | Button Flush Round | 19 mm | DPDT | 125 V | On-Mom | 3 A | Green LED | No Marking | Stainless Steel | Panel Mount Front | Silver | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Solder Quick Connect - 0.110" (2.8mm) |
