896-046 Series
Manufacturer: EDAC Inc.
Catalog

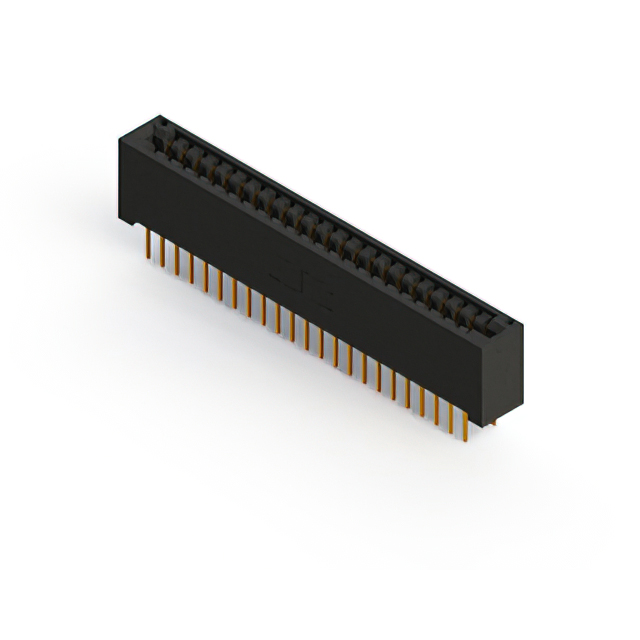

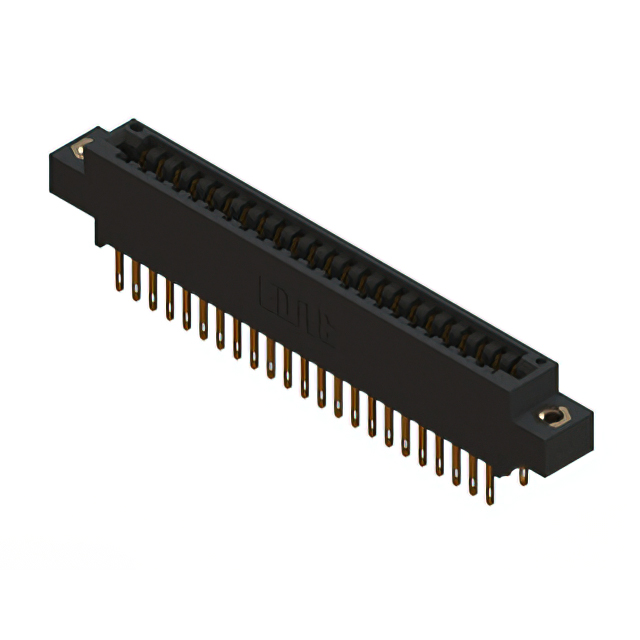

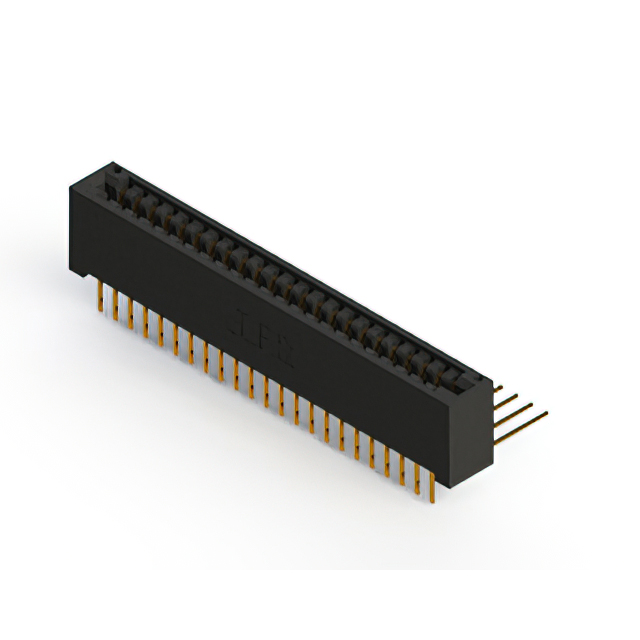

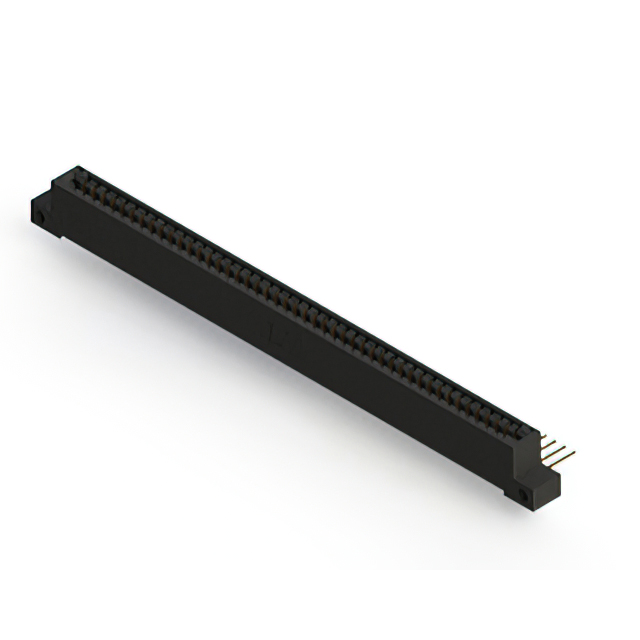

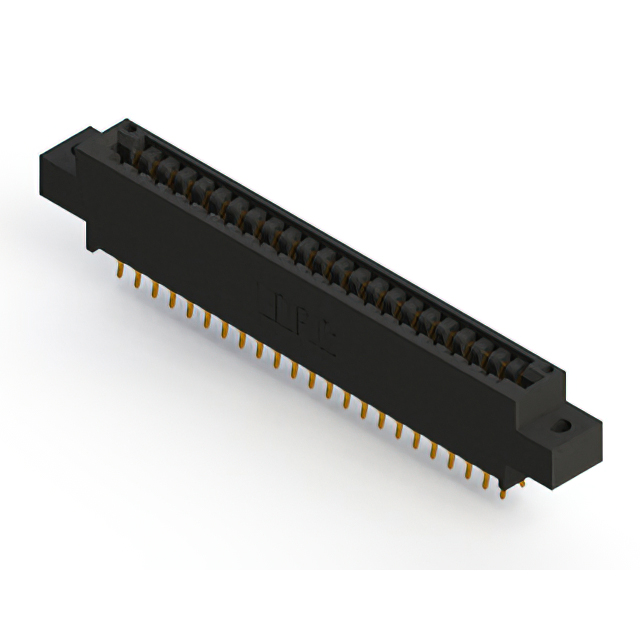

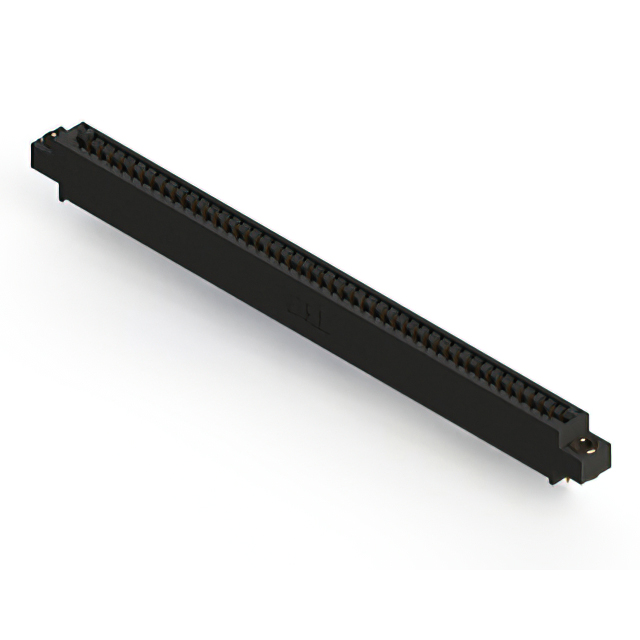

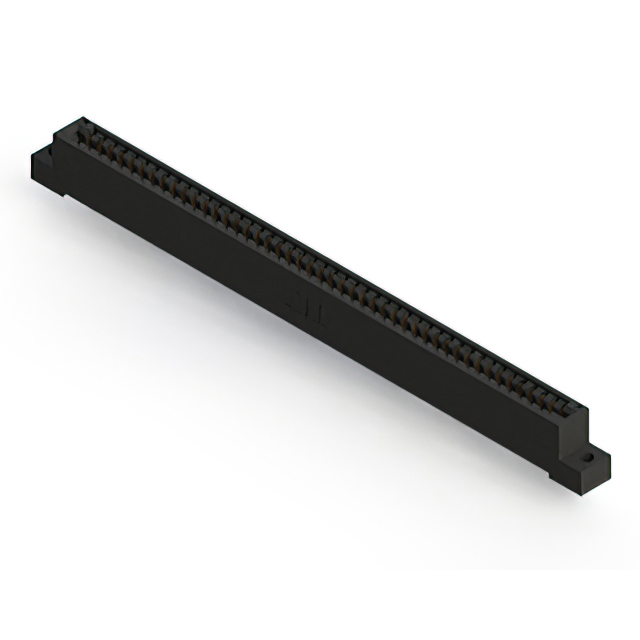

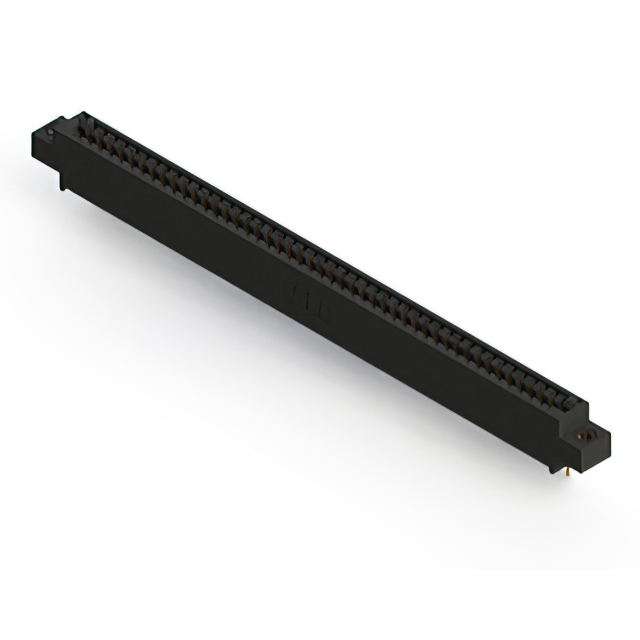

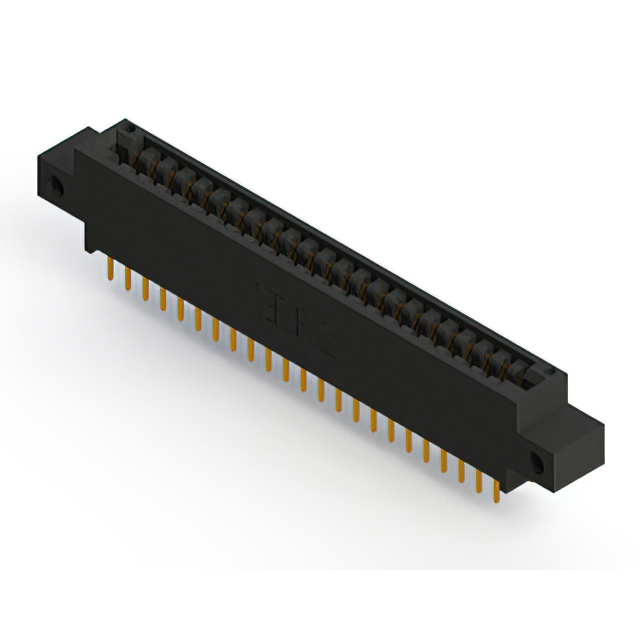

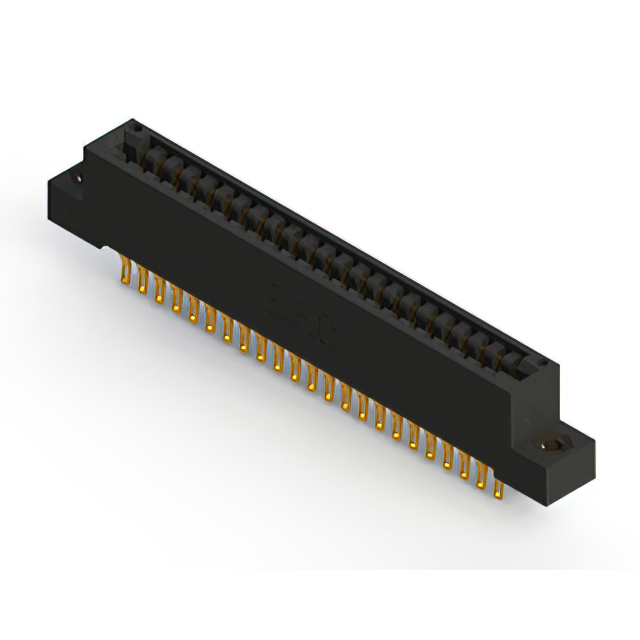

CARD EDGE CONNECTOR, 46 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .128, BLACK INSULATOR,
...
| Part | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Card Type | Mounting Type | Number of Rows | Number of Positions | Contact Material | Contact Type | Termination Rows | Color | Material - Insulation | Pitch [x] | Pitch [x] | Termination | Contact Finish | Gender | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | Non Specified - Single Edge | Through Hole Right Angle | 1 | 46 | Copper Alloy | Cantilever | 1 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder | Gold | Female | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | |||
 EDAC Inc. | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | Non Specified - Dual Edge | Through Hole | 2 | 46 | Copper Alloy | Cantilever | 2 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder Eyelet(s) | Gold | Female | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | Non Specified - Single Edge | Through Hole | 1 | 46 | Copper Alloy | Cantilever | 1 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Wire Wrap | Gold | Female | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | Non Specified - Single Edge | Through Hole | 1 | 46 | Copper Alloy | Cantilever | 1 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder | Gold | Female | 10 Áin | 0.25 Ám | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
 EDAC Inc. | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | Non Specified - Dual Edge | Board Edge Straddle Mount | 2 | 46 | Copper Alloy | Cantilever | 2 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder Eyelet(s) | Gold | Female | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||||
 EDAC Inc. | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | Non Specified - Dual Edge | Through Hole | 2 | 46 | Copper Alloy | Cantilever | 2 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder | Gold | Female | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | Non Specified - Dual Edge | Board Edge Straddle Mount | 2 | 46 | Copper Alloy | Cantilever | 2 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder | Gold | Female | 10 Áin | 0.25 Ám | Card Extender | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | Non Specified - Single Edge | Through Hole Right Angle | 1 | 46 | Copper Alloy | Cantilever | 1 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder | Gold | Female | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
 EDAC Inc. | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | Non Specified - Dual Edge | Through Hole | 2 | 46 | Copper Alloy | Cantilever | 2 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Wire Wrap | Gold | Female | 10 Áin | 0.25 Ám | ||||||
 EDAC Inc. | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | Non Specified - Dual Edge | Through Hole Right Angle | 2 | 46 | Copper Alloy | Cantilever | 2 | Black | Polyphenylene Sulfide (PPS) | 0.125 in | 3.18 mm | Solder | Gold | Female | 10 Áin | 0.25 Ám |
