1059410 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

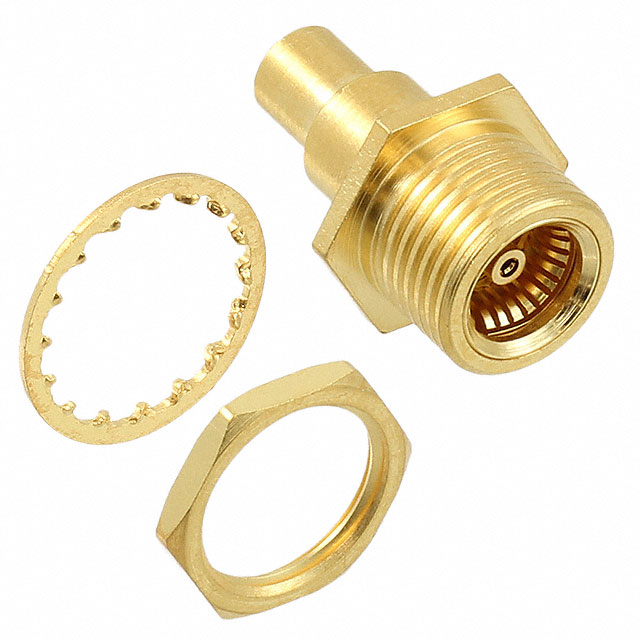

CONN OSP JACK STR 50 OHM SOLDER
| Part | Center Contact Plating | Body Finish | Dielectric Material | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Mating Cycles | Fastening Type | Mounting Feature | Contact Termination | Frequency - Max [Max] | Impedance | Center Contact Material | Housing Color | Number of Ports | Connector Style | Connector Type | Mounting Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 125 °C | Stainless Steel | 500 V | 5000 | Snap-On | Bulkhead - Front Side Nut | Solder | 22 GHz | 50 Ohms | Beryllium Copper | Gold | 1 | OSP | Female Socket Jack | Panel Mount | Solder |
