HAT2287 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

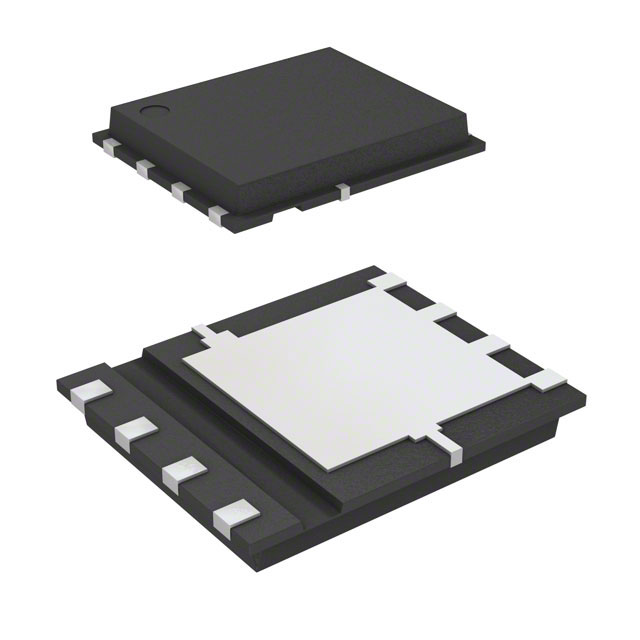

MOSFET N-CH 200V 17A 8WPAK
| Part | Vgs (Max) | FET Type | Rds On (Max) @ Id, Vgs | Operating Temperature | Gate Charge (Qg) (Max) @ Vgs [Max] | Input Capacitance (Ciss) (Max) @ Vds | Drain to Source Voltage (Vdss) | Technology | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | Supplier Device Package | Mounting Type | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 30 V | N-Channel | 94 mOhm | 150 °C | 26 nC | 1200 pF | 200 V | MOSFET (Metal Oxide) | 10 V | 8-PowerWDFN | 8-WPAK (3) | Surface Mount | 17 A |
