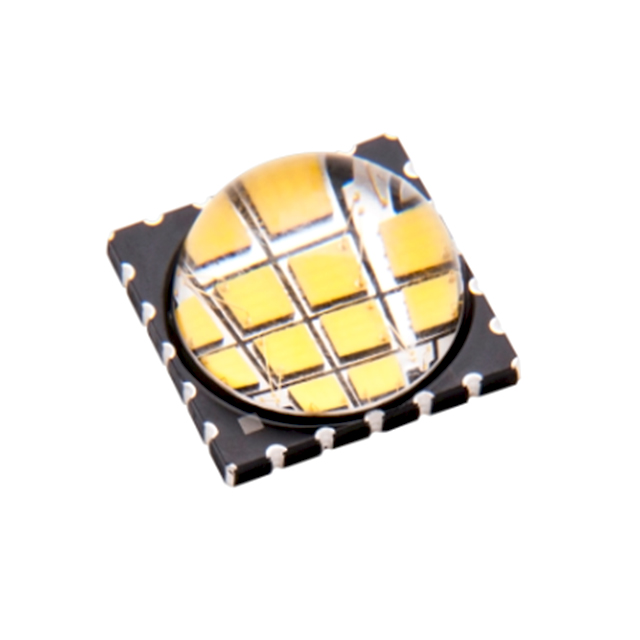

LZC-00 Series

Catalog

LED EMITTER UV VIOLET SMD

Part	Operating Temperature	Type	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Wavelength [Max]	Wavelength [Min]	Wavelength	Voltage - Forward (Vf) (Typ)	Orientation	Mounting Type	Package / Case	Thermal Resistance of Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Supplier Device Package	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test	CCT (K)	Current - Max [Max]
ams-OSRAM USA INC. LZC-00UB00-00U5	130 °C	Ultraviolet (UV)	1 A	115 °	395 nm	390 nm	393 nm	44 V	Top View	Surface Mount	24-SMD No Lead Exposed Pad
ams-OSRAM USA INC. LZC-00UB00-00U4	130 °C	Ultraviolet (UV)	1 A	115 °	390 nm	385 nm		44 V	Top View	Surface Mount	24-SMD No Lead Exposed Pad
ams-OSRAM USA INC. LZC-00CW0R-0055				110 °						Surface Mount	24-SMD No Lead Exposed Pad	0.7 °C/W	9 mm	9 mm	0.354 in	0.354 in	76 lm/W	70	SMD	Cool White	5.6 mm	0.22 in	2014 lm	5500 K	1.2 A
