FR01FC10 Series

Catalog

SW ROTARY DIP BCD COMP 0.1A 5V

Part	Body Material	Mechanical Life	Length [x]	Length [x]	Electrical Life	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination Style	Actuator Level	Number of Positions	Height Above Board [z]	Height Above Board [z]	Circuit	Contact Material	Mounting Type	Voltage Rating	Pitch	Pitch	Actuator Type
NKK Switches FR01FC10P	Polyamide (PA) Nylon Glass Filled	10000 Steps	0.394 in	10 mm	10000 Cycles	100 mA	85 °C	-25 °C	Gold	PC Pin	Flush Recessed	10	0.15 in	3.81 mm	BCD Complement	Copper Alloy	Through Hole	5 V	2.54 mm	0.1 "	Rotary for Tool
NKK Switches FR01FC10P-S	Polyamide (PA) Nylon Glass Filled	10000 Steps	0.394 in	10 mm	10000 Cycles	100 mA	85 °C	-25 °C	Gold	PC Pin	Flush Recessed	10	0.15 in	3.81 mm	BCD Complement	Copper Alloy	Through Hole	5 V	2.54 mm	0.1 "	Rotary for Tool
NKK Switches FR01FC10H-06XL-S	Polyamide (PA) Nylon Glass Filled	10000 Steps	0.394 in	10 mm	10000 Cycles	100 mA	85 °C	-25 °C	Gold	PC Pin	Flush Recessed	10	0.394 in	10 mm	BCD Complement	Copper Alloy	Right Angle Through Hole	5 V	2.54 mm	0.1 "	Rotary for Tool

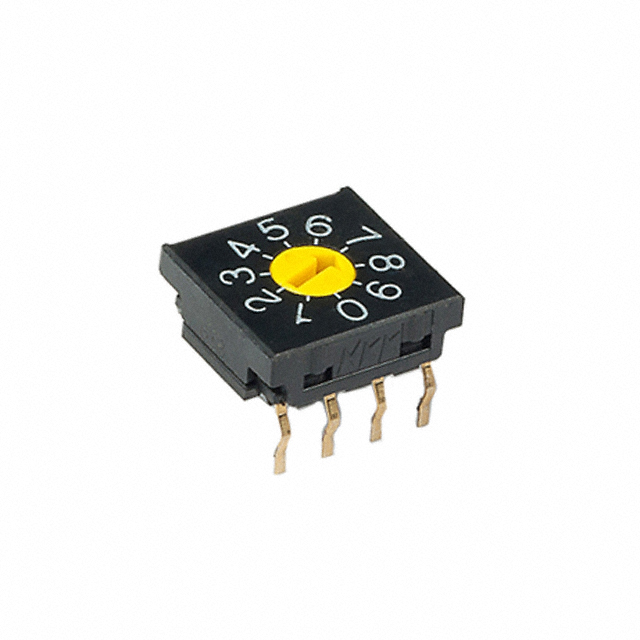

NKK Switches FR01FC10P-W-S	Polyamide (PA) Nylon Glass Filled	10000 Steps	0.394 in	10 mm	10000 Cycles	100 mA	85 °C	-25 °C	Gold	PC Pin	Flush Recessed	10	0.15 in	3.81 mm	BCD Complement	Copper Alloy	Through Hole	5 V	2.54 mm	0.1 "	Rotary for Tool

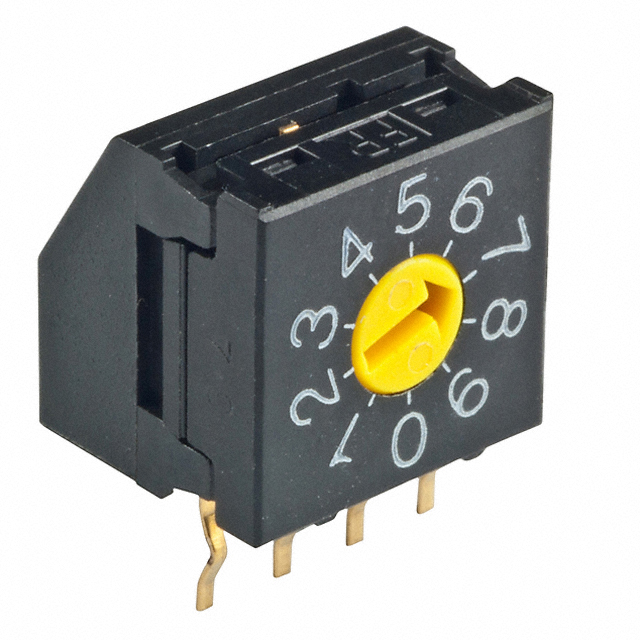

NKK Switches FR01FC10H-06XL	Polyamide (PA) Nylon Glass Filled	10000 Steps	0.394 in	10 mm	10000 Cycles	100 mA	85 °C	-25 °C	Gold	PC Pin	Flush Recessed	10	0.394 in	10 mm	BCD Complement	Copper Alloy	Right Angle Through Hole	5 V	2.54 mm	0.1 "	Rotary for Tool
