292141 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

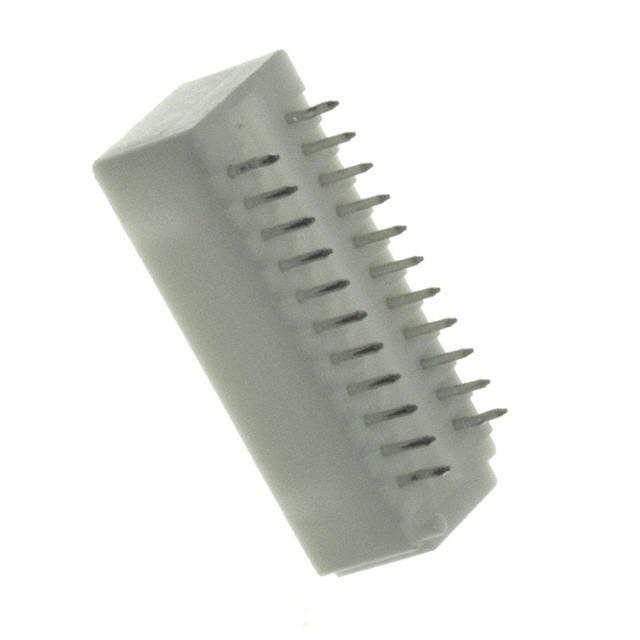

BOARD CONNECTOR, 22 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, NATURAL INSULATOR, PLUG
| Part | Pitch - Mating [x] | Pitch - Mating [x] | Shrouding | Insulation Color | Insulation Material | Voltage Rating | Features | Number of Rows | Current Rating (Amps) | Number of Positions | Contact Type | Contact Length - Post | Contact Length - Post [x] | Number of Positions Loaded | Connector Type | Style | Overall Contact Length | Overall Contact Length | Mounting Type | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Applications | Contact Material | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Fastening Type | Contact Shape | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.079 in | 2 mm | Shrouded - 4 Wall | Natural | Polyamide (PA66) Nylon 6/6 | 125 VAC | Board Guide | 2 | Varies by Wire Gauge | 22 positions | Male Pin | 3.2 mm | 0.126 in | All | Header | Board to Cable/Wire | 9.8 mm | 0.386 in | Through Hole | UL94 V-0 | 6.5 mm | 0.256 in | General Purpose | Brass | Tin | 0.185 in | 4.7 mm | 0.295 in | 7.5 mm | Detent Lock | Circular | Solder |
