0700-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

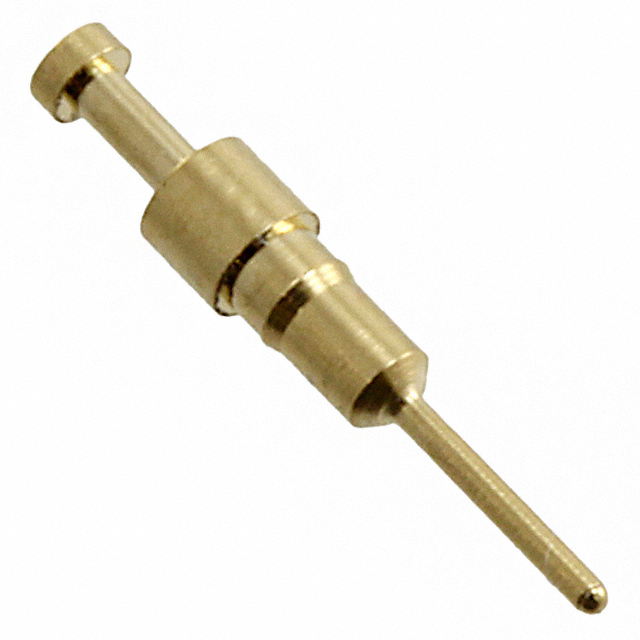

TERM TURRET PIN L=4.01MM GOLD
| Part | Contact Material | Insulation | Contact Finish | Terminal Type | Mounting Type | Length - Above Board [x] | Length - Above Board [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Number of Turrets | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | Non-Insulated | Gold | Double End Pin | Through Hole | 4.01 mm | 0.158 in | 1.45 mm | 0.057 in | 0.053 in | 1.35 mm | 0.072 " | 1.83 mm | 0.417 in | 10.59 mm | Single | 50 µin | 1.27 µm | 6.58 mm | 0.259 " |
 Mill-Max Manufacturing Corp. | Brass Alloy | Non-Insulated | Tin-Lead | Double End Pin | Through Hole | 4.01 mm | 0.158 in | 1.45 mm | 0.057 in | 0.053 in | 1.35 mm | 0.072 " | 1.83 mm | 0.417 in | 10.59 mm | Single | 200 Áin | 5.08 Ám | 6.58 mm | 0.259 " |
 Mill-Max Manufacturing Corp. | Brass Alloy | Non-Insulated | Gold | Double End Pin | Through Hole | 4.01 mm | 0.158 in | 1.45 mm | 0.057 in | 0.053 in | 1.35 mm | 0.072 " | 1.83 mm | 0.417 in | 10.59 mm | Single | 10 Áin | 0.25 Ám | 6.58 mm | 0.259 " |
Mill-Max Manufacturing Corp. | Brass Alloy | Non-Insulated | Tin | Double End Pin | Through Hole | 1.45 mm | 0.057 in | 0.072 " | 1.83 mm | 0.417 in | 10.59 mm | 200 Áin | 5.08 Ám | 6.58 mm | 0.259 " |
