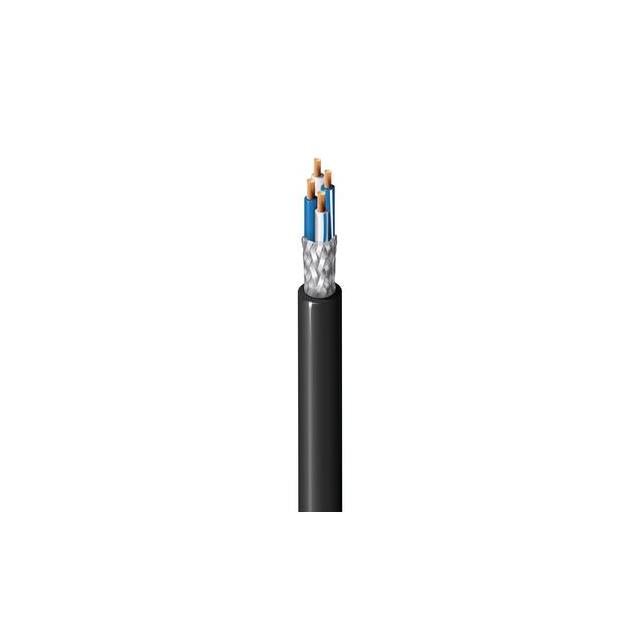

1192A Series
Manufacturer: Belden Inc.
Beta
⌘K
4 #24 PE SH PVC BLK MTT
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Conductor Insulation | Shield Type | Usage | Length [x] | Length [x] | Wire Gauge | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 92 % | Copper Tinned | 40 AWG | 42 | Black | Polyethylene (PE) | Braid | Audio | 100 ft | 30.5 m | 24 AWG | 4 | 75 ░C | -30 ░C | Microphone | 0.044 in | 1.118 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 100 V | 0.245 " | 6.22 mm | ||
Belden Inc. | 92 % | Copper Tinned | 40 AWG | 42 | Black | Polyethylene (PE) | Braid | Audio | 24 AWG | 4 | 75 ░C | -30 ░C | Microphone | 0.044 in | 1.118 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 100 V | 0.245 " | 6.22 mm | 304.8 m | 1000 ft | ||
Belden Inc. | 92 % | Copper Tinned | 40 AWG | 42 | Green | Polyethylene (PE) | Braid | Audio | 24 AWG | 4 | 75 ░C | -30 ░C | Microphone | 0.044 in | 1.118 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 100 V | 0.245 " | 6.22 mm | 304.8 m | 1000 ft | ||
Belden Inc. | 92 % | Copper Tinned | 40 AWG | 42 | Black | Polyethylene (PE) | Braid | Audio | 24 AWG | 4 | 75 ░C | -30 ░C | Microphone | 0.044 in | 1.118 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 100 V | 0.245 " | 6.22 mm | 152.4 m | 500 ft | ||
Belden Inc. | 92 % | Copper Tinned | 40 AWG | 42 | Green | Polyethylene (PE) | Braid | Audio | 24 AWG | 4 | 75 ░C | -30 ░C | Microphone | 0.044 in | 1.118 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 100 V | 0.245 " | 6.22 mm | 304.8 m | 1000 ft | ||
Belden Inc. | 92 % | Copper Tinned | 40 AWG | 42 | Gray | Polyethylene (PE) | Braid | Audio | 24 AWG | 4 | 75 ░C | -30 ░C | Microphone | 0.044 in | 1.118 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 100 V | 0.245 " | 6.22 mm | 304.8 m | 1000 ft | ||
Belden Inc. | 92 % | Copper Tinned | 40 AWG | 42 | Red | Polyethylene (PE) | Braid | Audio | 24 AWG | 4 | 75 ░C | -30 ░C | Microphone | 0.044 in | 1.118 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 100 V | 0.245 " | 6.22 mm | 304.8 m | 1000 ft |
