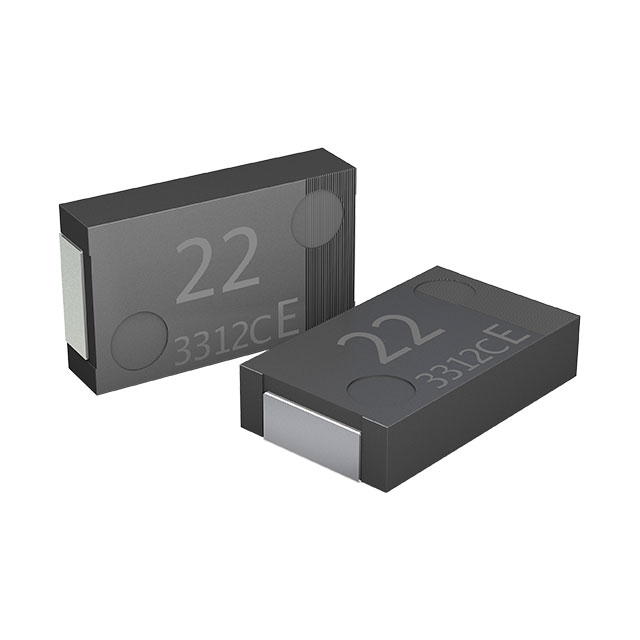

EEF-LR Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

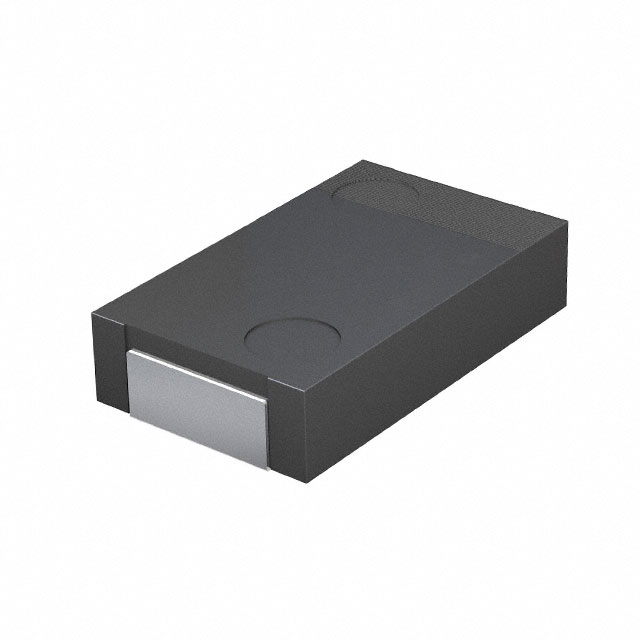

CAP ALUMINUM POLYMER 180UF 2.5VDC 20%( 7.3 X 4.3 X 1MM) SMD 0.0045 OHM 8.5A 2000H 105°C T/R
| Part | Capacitance | Type | ESR (Equivalent Series Resistance) | Tolerance | Package / Case | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ripple Current @ High Frequency | Lifetime @ Temp. | Voltage - Rated | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 180 çF | Polymer | 4.5 mOhms | 20 % | 7343 Metric | 2917 | 0.039 " | 1 mm | 8.5 A | 2000 Hrs | 2.5 V | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Surface Mount | 105 ░C | -55 °C |
 Panasonic Industrial Automation Sales | 180 çF | Polymer | 4.5 mOhms | 20 % | 7343 Metric | 2917 | 0.039 " | 1 mm | 7.5 A | 2000 Hrs | 2.5 V | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Surface Mount | 105 ░C | -55 °C |
