MISM-7LB-10-15 Series
Manufacturer: LITTELFUSE
Beta
⌘K

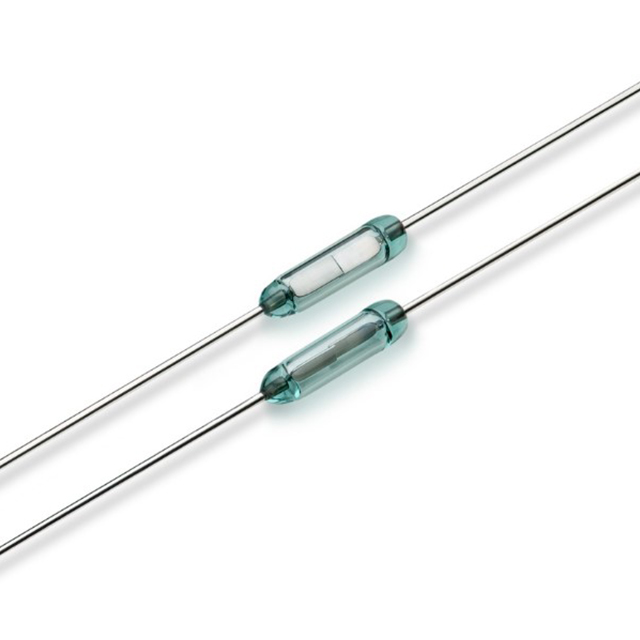

SWITCH REED SPST-NO 180MA 120V
| Part | Height Above Board [z] | Height Above Board [z] | Voltage - Switching AC | Size - Body [x] | Size - Body [diameter] | Size - Body [x] | Size - Body [diameter] | Circuit | Power - Rated | Operate Time | Current - Carry | Voltage - Switching DC | Type | Capacitance | Termination Style | Current - Switching | Length - Overall [x] | Length - Overall [x] | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Operate Range [Max] | Operate Range [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 2.28 mm | 0.09 in | 120 V | 7 mm | 0.071 " | 0.276 " | 1.8 mm | SPST-NO | 10 W | 450 µs | 500 mA | 170 V | Glass Body Reed | 0.3 pF | Gull Wing | 180 mA 250 mA | 0.54 in | 13.72 mm | 0.2 ms | 125 °C | -40 C | 15 | 10 | Surface Mount |
