pvb3 Series

Manufacturer: E-Switch

Catalog

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 5A/250VAC; 2A/24VDC; IP67

Part	Mechanical Life	Electrical Life	Illumination Voltage (Nominal)	Termination Style	Illumination Type, Color	Type	Color - Actuator/Cap	Actuator Type	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Mounting Type

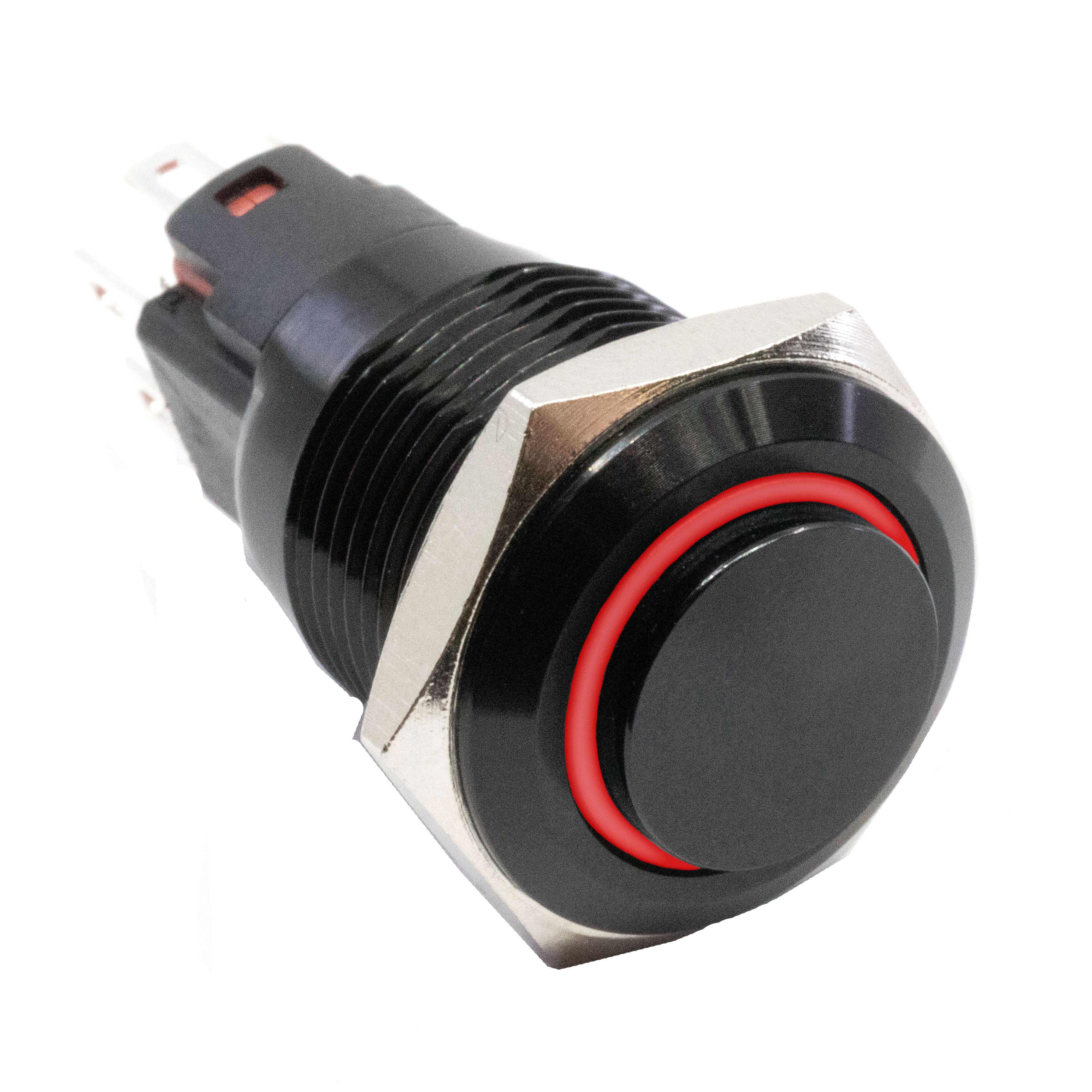

E-Switch PVB3H2B0113R1	1000000 Cycles	50000 Cycles	1.8 VDC 2.8 VDC	Solder Quick Connect - 0.110" (2.8mm)	Blue Green LED Red	Anti-Vandal Illuminated	Black	Button Round	On-Mom	24 V	220 V	SPDT	IP65 - Dust Tight Water Resistant	55 °C	-25 °C	2 A 500 mA	16 mm	Panel Mount Front

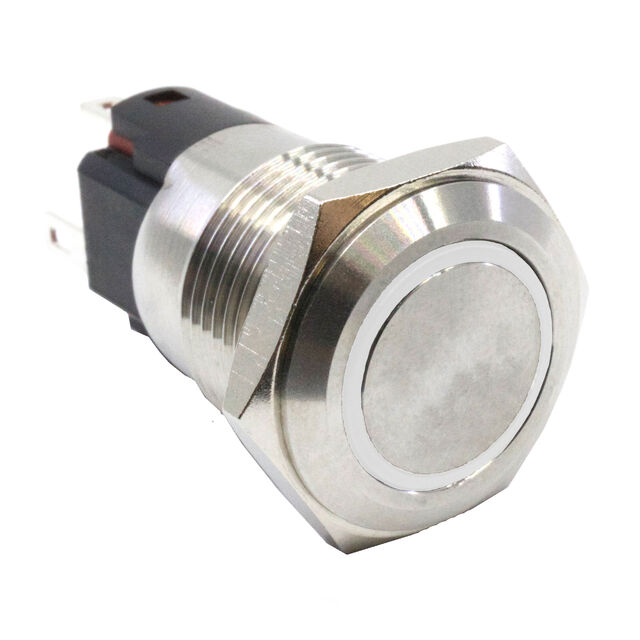

E-Switch PVB3F2B0SS301	1000000 Cycles	50000 Cycles	2.8 VDC	Solder Quick Connect - 0.110" (2.8mm)	LED White	Anti-Vandal Illuminated	Silver	Button Flush Round	On-Mom	24 V	220 V	SPDT	IP65 - Dust Tight Water Resistant	55 °C	-25 °C	2 A 500 mA	16 mm	Panel Mount Front

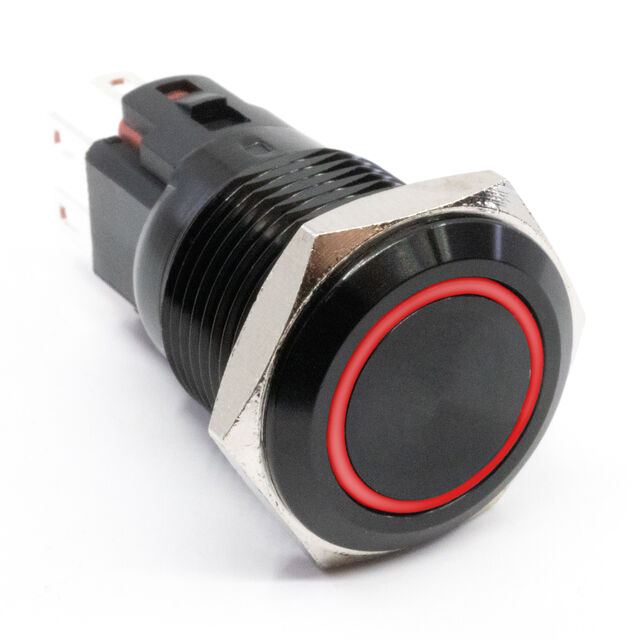

E-Switch PVB3F2B0113R1	1000000 Cycles	50000 Cycles	1.8 VDC 2.8 VDC	Solder Quick Connect - 0.110" (2.8mm)	Blue Green LED Red	Anti-Vandal Illuminated	Black	Button Flush Round	On-Mom	24 V	220 V	SPDT	IP65 - Dust Tight Water Resistant	55 °C	-25 °C	2 A 500 mA	16 mm	Panel Mount Front
E-Switch PVB3F2B0SS644	1000000 Cycles	50000 Cycles	12 VDC	Solder Quick Connect - 0.110" (2.8mm)	Blue LED	Anti-Vandal Illuminated	Silver	Button Flush Round	On-Mom	24 V	220 V	SPDT	IP65 - Dust Tight Water Resistant	55 °C	-25 °C	2 A 500 mA	16 mm	Panel Mount Front

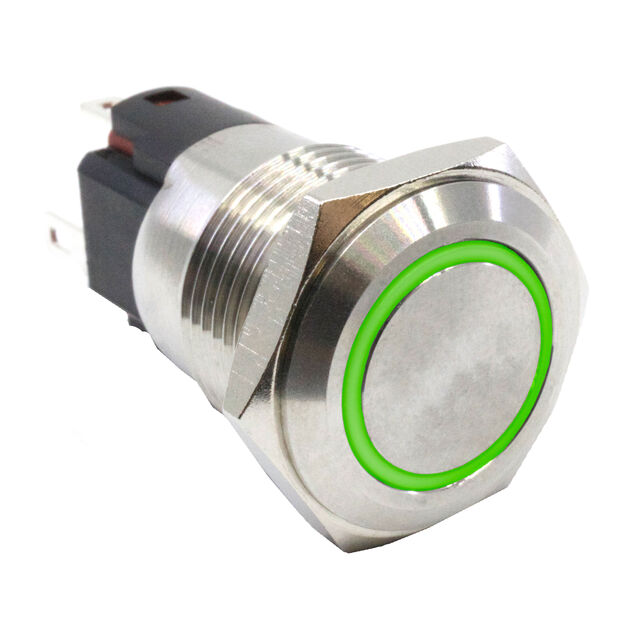

E-Switch PVB3F230SS334	500000 Cycles	50000 Cycles	12 VDC	Solder Quick Connect - 0.110" (2.8mm)	Green LED	Anti-Vandal Illuminated	Silver	Button Flush Round	On-On	24 V	220 V	SPDT	IP65 - Dust Tight Water Resistant	55 °C	-25 °C	2 A 500 mA	16 mm	Panel Mount Front
E-Switch PVB3H230SS3R1	500000 Cycles	50000 Cycles	1.8 VDC 2.8 VDC	Solder Quick Connect - 0.110" (2.8mm)	Blue Green LED Red	Anti-Vandal Illuminated	Silver	Button Round	On-On	24 V	220 V	SPDT	IP65 - Dust Tight Water Resistant	55 °C	-25 °C	2 A 500 mA	16 mm	Panel Mount Front
