A15 Series

Catalog

COMP O= .640,L= 1.63,W= .042

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Free Length [x]	Free Length [x]	Rate	Wire Diameter [diameter]	Wire Diameter [diameter]	End Style	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Finish	Material	Diameter - Outside	Diameter - Outside	Free Length	Free Length	Diameter - Inside [diameter]

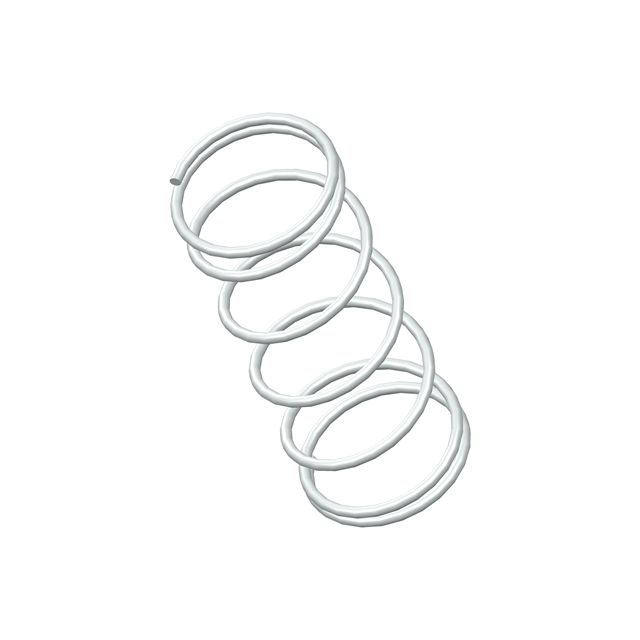

Century Spring Corp A15-47CS	0.64 in	16.25 mm	41.4 mm	1.63 "	3.7 lbs/in	1.07 mm	0.042 in	Closed	0.556 in	14.12 mm	Compression	None	Stainless Steel

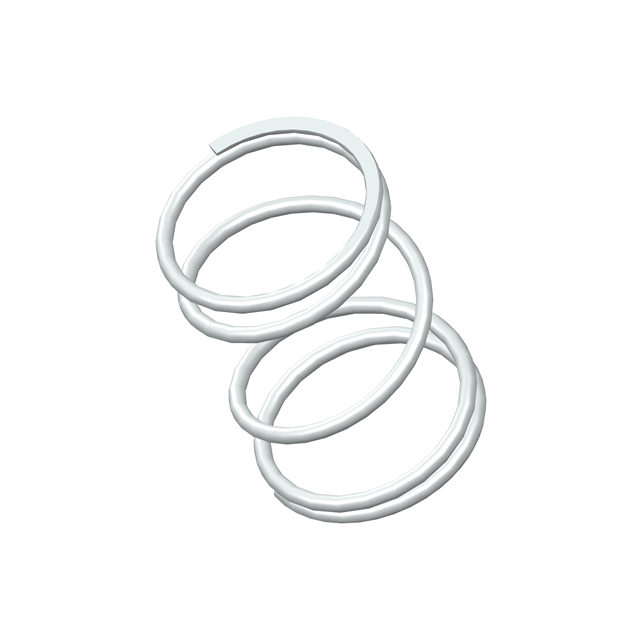

Century Spring Corp A15-52CS	0.859 in	21.82 mm	31.75 mm	1.25 " (inch)	14 lbs/in	1.55 mm	0.061 in	Closed & Ground	0.737 in	18.72 mm	Compression	None	Stainless Steel

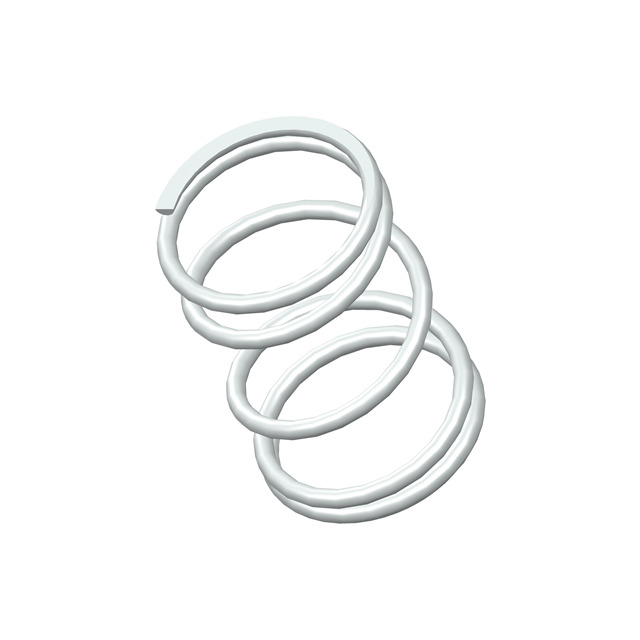

Century Spring Corp A15-57CS	0.546 in	13.87 mm	20.57 mm	0.81 "	14 lbs/in	1.14 mm	0.045 in	Closed & Ground	0.456 in	11.58 mm	Compression	None	Stainless Steel

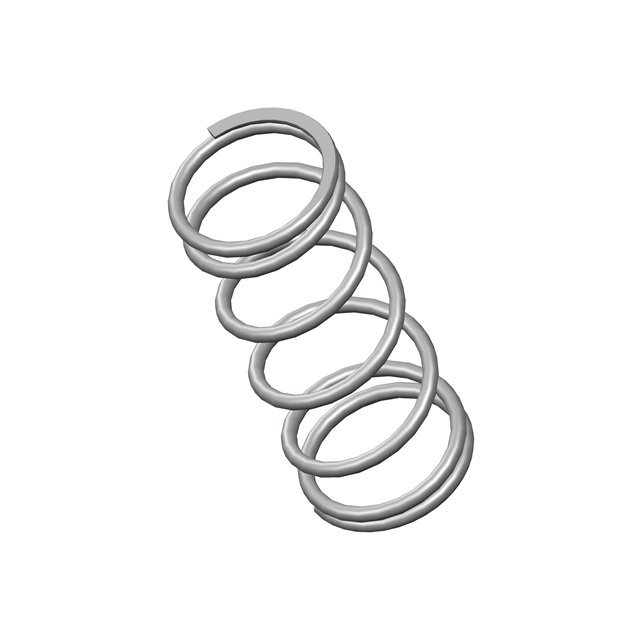

Century Spring Corp A15-24CS	0.453 in	11.51 mm	28.7 mm	1.13 "	11 lbs/in	1.02 mm	0.04 in	Closed & Ground	0.373 in	9.47 mm	Compression	Gold Iridite	Spring Steel
Century Spring Corp A15-33CS			20.57 mm	0.81 "	21 lbs/in	1.19 mm	0.047 in	Closed & Ground	0.374 in	9.5 mm	Compression	None	Stainless Steel	0.468 in	11.89 mm

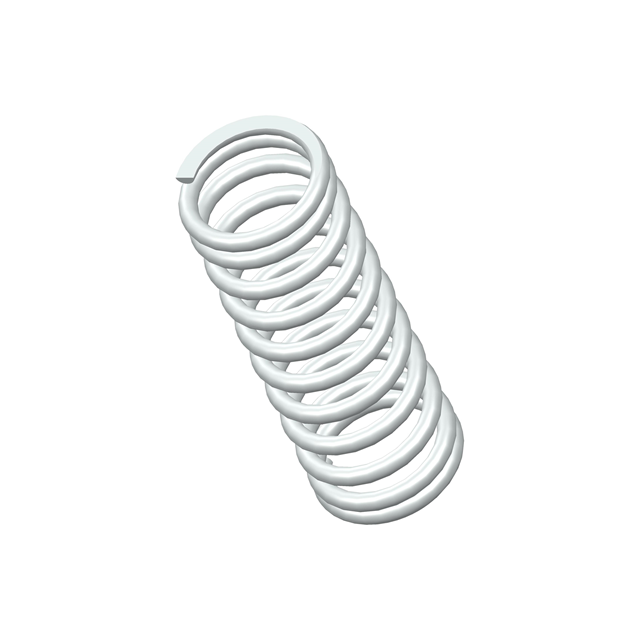

Century Spring Corp A15-22CS	0.266 in	6.76 mm	19.05 mm	0.75 "	12 lbs/in	0.81 mm	0.032 in	Closed & Ground	0.202 in	5.13 mm	Compression	None	Stainless Steel

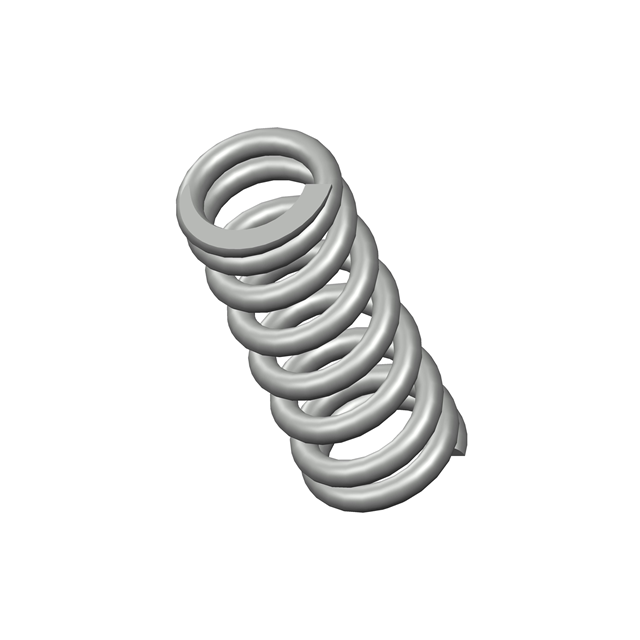

Century Spring Corp A15-49CS	0.109 "	2.77 mm	7.11 mm	0.28 "	33 lbs/in	0.46 mm	0.018 in	Closed & Ground	0.073 in	1.85 mm	Compression	None	Music Wire

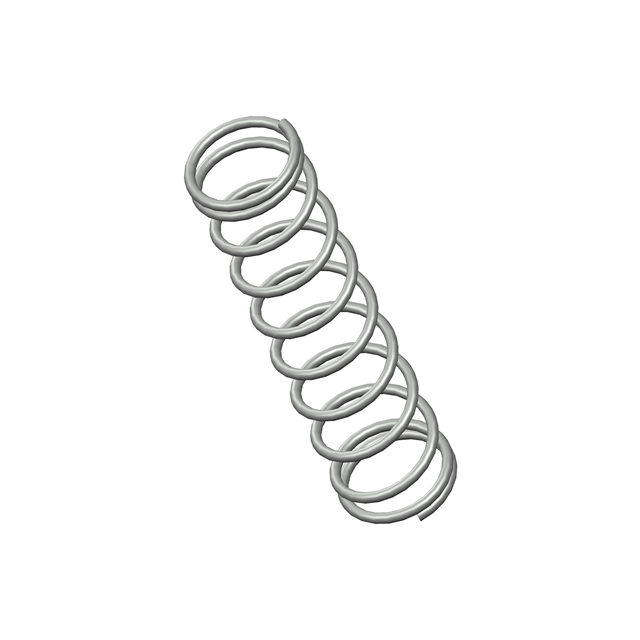

Century Spring Corp A15-54CS	0.36 in	9.14 mm			6 lbs/in	0.84 mm	0.033 in	Closed	0.294 in	7.47 mm	Compression	None	Music Wire			38.86 mm	1.53 "
Century Spring Corp A15-48CS	0.188 in	4.78 mm	44.45 mm	1.75 "	25 lbs/in	0.84 mm	0.033 in	Closed & Ground		0.122 "	Compression	None	Stainless Steel					3.1 mm

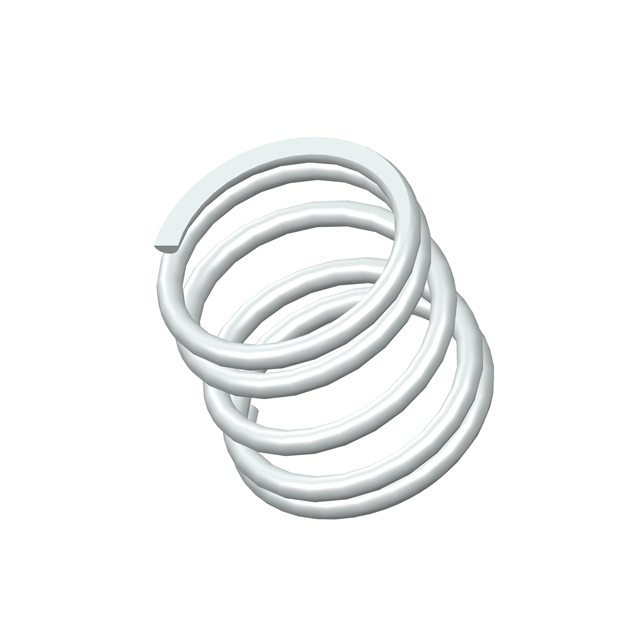

Century Spring Corp A15-43CS	0.562 "	14.27 mm	13.46 mm	0.53 "	23 lbs/in	1.32 mm	0.052 in	Closed & Ground	0.458 "	11.63 mm	Compression	None	Stainless Steel
