PPTC021 Series

Catalog

CONN HDR 2POS 0.1 TIN PCB

Part	Contact Material	Insulation Material	Contact Shape	Insulation Height	Insulation Height	Number of Rows	Fastening Type	Contact Finish - Post	Insulation Color	Number of Positions	Mounting Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions Loaded	Termination	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post

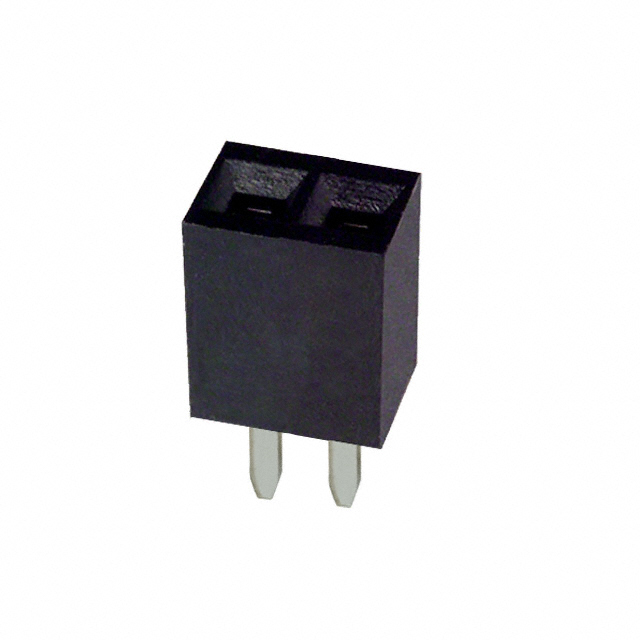

Sullins Connector Solutions PPTC021LFBN-RC	Phosphor Bronze	Polyester	Square	0.335 "	8.51 mm	1	Push-Pull	Tin	Black	2	Through Hole	Header	0.126 "	3.2 mm	0.1 "	2.54 mm	Female Socket	All	Solder	UL94 V-0	250 V	3 A	-40 C	105 ░C

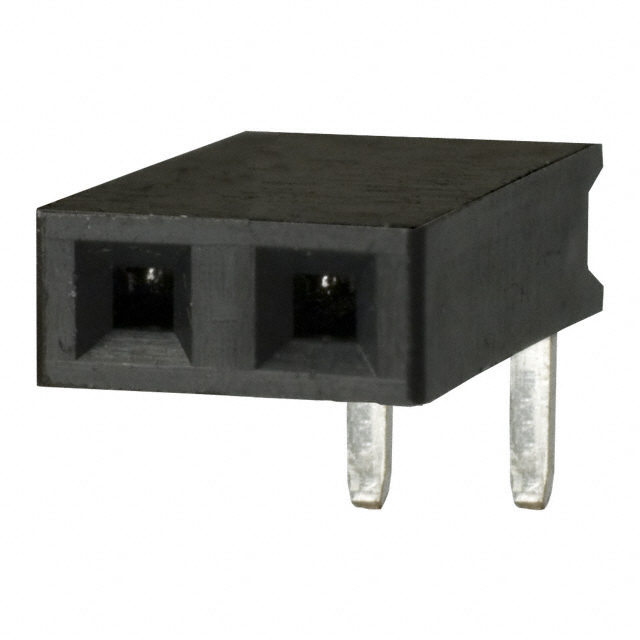

Sullins Connector Solutions PPTC021LGBN	Phosphor Bronze	Polyester	Square	0.1 in	2.54 mm	1	Push-Pull	Tin	Black	2	Right Angle Through Hole	Header			0.1 "	2.54 mm	Female Socket	All	Solder	UL94 V-0	250 V	3 A	-40 C	105 ░C	0.124 in	3.15 mm
Sullins Connector Solutions PPTC021KFXC	Phosphor Bronze	Polyester	Square	0.28 in	7.1 mm	1	Push-Pull	Tin	Black	2	Surface Mount	Header Top or Bottom Entry			0.1 "	2.54 mm	Female Socket	All	Solder	UL94 V-0	250 V	3 A	-40 C	105 ░C
