325-064 Series
Manufacturer: EDAC Inc.
Beta
⌘K

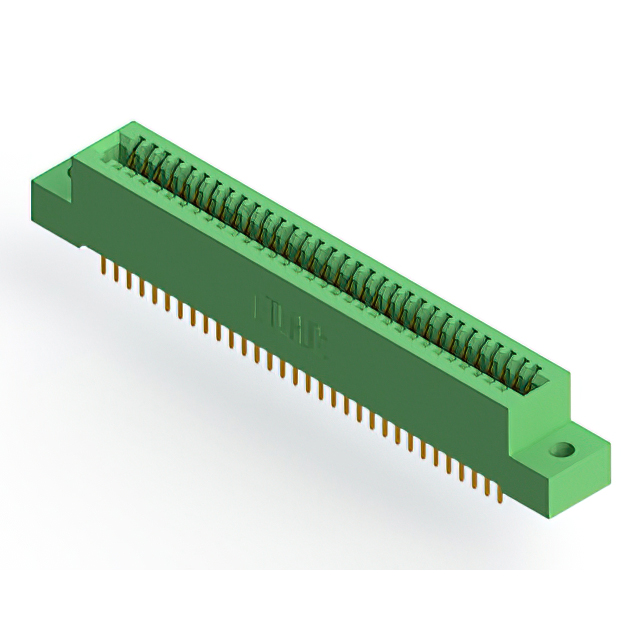

CONN EDGE DUAL FMALE 64POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Termination | Card Thickness | Card Thickness | Color | Flange Feature | Contact Material | Contact Finish | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Gender | Mounting Type | Pitch | Pitch | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Solder Eyelet(s) | 3.18 mm | 0.125 in | Green | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Solder | 3.18 mm | 0.125 in | Green | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | 0.16 " | 4.06 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Solder | 3.18 mm | 0.125 in | Green | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | ||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Solder Eyelet(s) | 3.18 mm | 0.125 in | Green | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Solder Eyelet(s) | 3.18 mm | 0.125 in | Green | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | ||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Solder | 3.18 mm | 0.125 in | Green | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Wire Wrap | 3.18 mm | 0.125 in | Green | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 32 | Dual | -65 ░C | 125 °C | Non Specified - Dual Edge | Wire Wrap | 3.18 mm | 0.125 in | Green | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | 2 | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | 0.1 " | 2.54 mm | 64 | 0.16 " | 4.06 mm |
