627W3W Series
Manufacturer: EDAC Inc.
Beta
⌘K

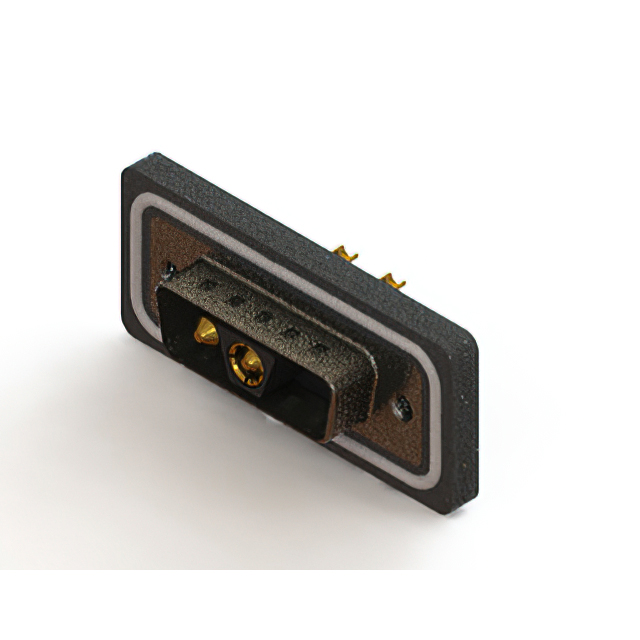

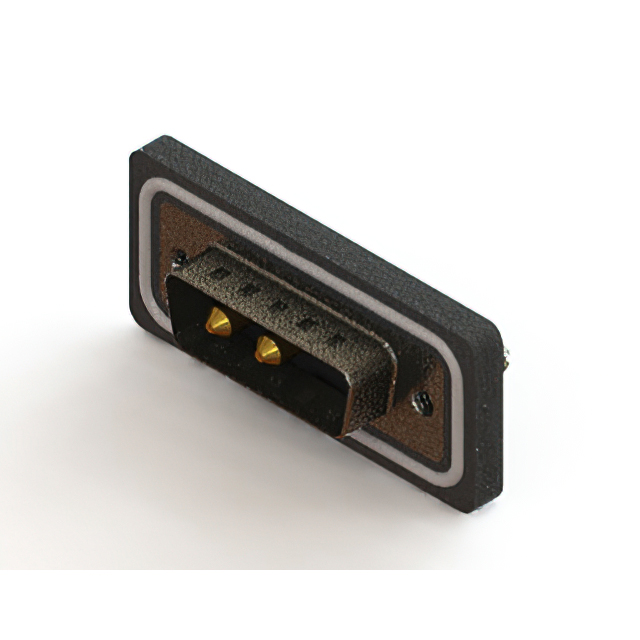

CONN D-SUB PLUG 3POS PNL MNT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Contact Material | Color | Flange Feature | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout | Features | Mounting Type | Number of Positions | Number of Rows | Connector Type | Ingress Protection | Material Flammability Rating | Current Rating (Amps) | Contact Finish | Contact Type | Shell Material, Finish | Termination | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell (M3) | Combo D-Sub | 30 Áin | 0.76 Ám | 3WK3 A DA | 2 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Female Sockets and Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 40 A | Gold | Power | Nickel Plated Steel | |||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell (M3) | Combo D-Sub | 15 µin | 0.38 µm | 2 (DA A) - 3W3 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 10 A | Gold | Power | Nickel Plated Steel | Solder | |||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Board Side (M3) | Combo D-Sub | 15 µin | 0.38 µm | 2 (DA A) - 3W3 | Board Lock Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 10 A | Gold | Power | Nickel Plated Steel | Solder | |||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell (M3) | Combo D-Sub | 5 µin | 0.127 µm | 3WK3 A DA | 2 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Female Sockets and Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 10 A | Gold | Power | Nickel Plated Steel | |||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell (M3) | Combo D-Sub | 5 µin | 0.127 µm | 3WK3 A DA | 2 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Female Sockets and Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 30 A | Gold | Power | Nickel Plated Steel | |||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell | Combo D-Sub | 15 µin | 0.38 µm | 3WK3 A DA | 2 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Female Sockets and Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 20 A | Gold | Power | Nickel Plated Steel | 4-40 | ||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell | Combo D-Sub | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 10 A | Gold | Power | Nickel Plated Steel | Solder | 4-40 | ||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell (M3) | Combo D-Sub | 2 (DA A) - 3W3 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 10 A | Gold | Power | Nickel Plated Steel | Solder | Flash | ||||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Housing/Shell | Combo D-Sub | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 20 A | Gold | Power | Nickel Plated Steel | 4-40 | |||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | Black | Board Side (4-40) | Combo D-Sub | 2 (DA A) - 3W3 | Board Lock Grounding Indents Shielded | Panel Mount | 3 | 1 | Plug Male Pins | IP67 - Dust Tight Waterproof | UL94 V-0 | 30 A | Gold | Power | Nickel Plated Steel | Solder | Flash |
