NPTC281 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

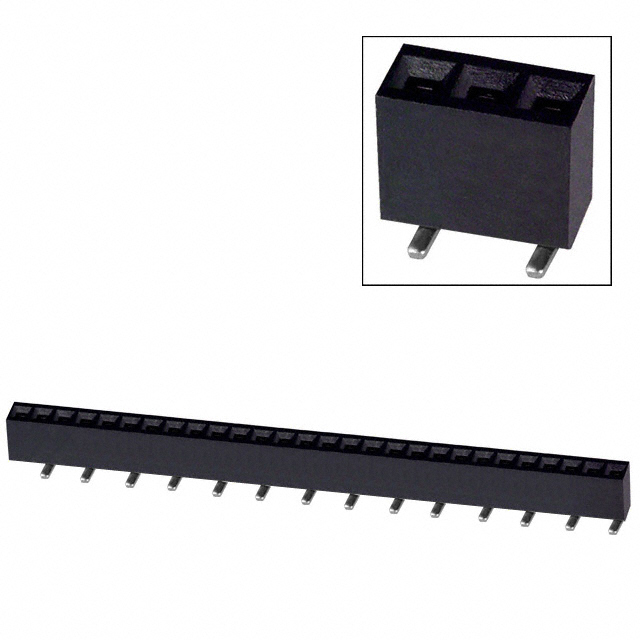

CONN HDR 28POS 0.1 TIN SMD
| Part | Contact Shape | Insulation Material | Contact Material | Number of Rows | Contact Type | Insulation Color | Mounting Type | Connector Type | Voltage Rating | Material Flammability Rating | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions Loaded | Current Rating (Amps) | Fastening Type | Contact Finish - Post | Termination | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | 1 | Female Socket | Black | Surface Mount | Header Top or Bottom Entry | 250 V | UL94 V-0 | 28 | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm | All | 3 A | Push-Pull | Tin | Solder | -40 C | 105 ░C |
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | 1 | Female Socket | Surface Mount | Header Top or Bottom Entry | 250 V | UL94 V-0 | 28 | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm | All | 3 A | Push-Pull | Tin | Solder | -40 C | 105 ░C |
