CC-1-0909 Series

Manufacturer: Visual Communications Company - VCC

Catalog

PMI DIA .319" (8.10MM) R/G 24V

Part	Voltage	Voltage	Wavelength - Peak	Lamp Color	Lens Style	Viewing Angle	Lens Color	Current	Millicandela Rating [custom]	Millicandela Rating [custom]	Type	Termination Style	Lens Size	Lens Size	Voltage [custom]	Voltage [custom]	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Voltage	Voltage [custom]

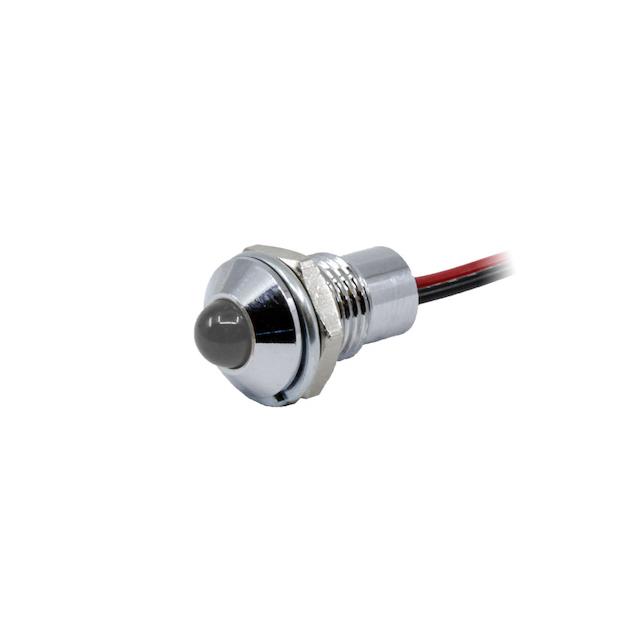

Visual Communications Company - VCC CC-1-0909-9910-I	1.95 V	2.1 V	574 nm 650 nm	Green Red	Round with Domed Top	60 °	Green Red	20 mA 20 mA	198 mcd	697 mcd	LED	Wire Leads - 6.000" (152.40mm)	5 mm	T-1 3/4	24 V	24 V	Round	0.32 "	8.1 mm	DC
Visual Communications Company - VCC CC-1-0909-9907-I	1.95 V	2.1 V	574 nm 650 nm	Green Red	Round with Domed Top	60 °	Green Red	20 mA 20 mA	198 mcd	697 mcd	LED	Wire Leads - 6.000" (152.40mm)	5 mm	T-1 3/4			Round	0.32 "	8.1 mm	DC	5 V 5 V
Visual Communications Company - VCC CC-1-0909-9908-I	1.95 V	2.1 V	574 nm 650 nm	Green Red	Round with Domed Top	60 °	Green Red	20 mA 20 mA	198 mcd	697 mcd	LED	Wire Leads - 6.000" (152.40mm)	5 mm	T-1 3/4		12 V	Round	0.32 "	8.1 mm	DC		12 V
Visual Communications Company - VCC CC-1-0909-9920-I	1.95 V	2.1 V	574 nm 650 nm	Green Red	Round with Domed Top	60 °	Green Red	20 mA 20 mA	198 mcd	697 mcd	LED	Wire Leads - 6.000" (152.40mm)	5 mm	T-1 3/4			Round	0.32 "	8.1 mm	AC	120 V 120 V
Visual Communications Company - VCC CC-1-0909-9912-I	1.95 V	2.1 V	574 nm 650 nm	Green Red	Round with Domed Top	60 °	Green Red	20 mA 20 mA	198 mcd	697 mcd	LED	Wire Leads - 6.000" (152.40mm)	5 mm	T-1 3/4			Round	0.32 "	8.1 mm	DC	48 V 48 V
Visual Communications Company - VCC CC-1-0909-9914-I	1.95 V	2.1 V	574 nm 650 nm	Green Red	Round with Domed Top	60 °	Green Red	20 mA 20 mA	198 mcd	697 mcd	LED	Wire Leads - 6.000" (152.40mm)	5 mm	T-1 3/4			Round	0.32 "	8.1 mm	DC	60 V
