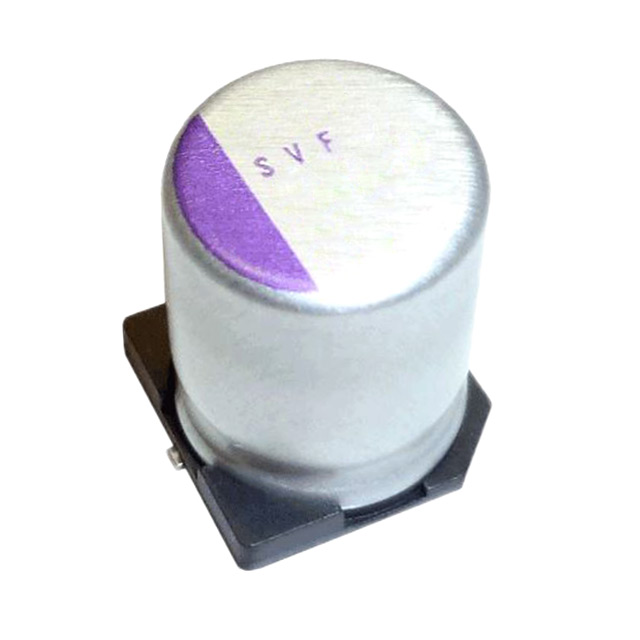

20SVF Series

Catalog

CAP ALUMINUM POLYMER 560UF 20VDC 20%( 10 X 12.6MM) SMD 0.012 OHM 1.7A 1000H 125°C T/R

Part	ESR (Equivalent Series Resistance)	Mounting Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ Low Frequency	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Voltage - Rated	Applications	Ripple Current @ High Frequency	Type	Capacitance	Height - Seated (Max)
Panasonic Electronic Components 20SVF560M	12 mOhms	Surface Mount	0.406 "	0.406 in	10.3 mm	10.3 mm	85 mA	1000 Hrs	-55 C	125 °C	0.394 in	10 mm	0.5 in	12.7 mm	Radial Can - SMD	20 %	20 V	General Purpose	1.7 A	Polymer	560 µF
Panasonic Electronic Components 20SVF56M	30 mOhms	Surface Mount			0.209 in 5.3 mm	0.209 in 5.3 mm	44 mA	1000 Hrs	-55 C	125 °C	0.197 in	5 mm	0.236 "		Radial Can - SMD	20 %	20 V	General Purpose	880 mA	Polymer	56 µF	6 mm
Panasonic Electronic Components 20SVF120M	25 mOhm	Surface Mount	0.26 in	0.26 in	6.6 mm	6.6 mm	50.5 mA	1000 Hrs	-55 C	125 °C	0.248 "	6.3 mm	0.236 "		Radial Can - SMD	20 %	20 V	General Purpose	1.01 A	Polymer	120 µF	6 mm
Panasonic Electronic Components 20SVF180M	25 mOhm	Surface Mount	0.327 in	0.327 in	8.3 mm	8.3 mm	50.5 mA	1000 Hrs	-55 C	125 °C	0.315 in	8 mm	0.276 in	7 mm	Radial Can - SMD	20 %	20 V	General Purpose	1.01 A	Polymer	180 µF
Panasonic Electronic Components 20SVF390M	14 mOhms	Surface Mount	0.327 in	0.327 in	8.3 mm	8.3 mm	78 mA	1000 Hrs	-55 C	125 °C	0.315 in	8 mm	0.472 in		Radial Can - SMD	20 %	20 V	General Purpose	1.56 A	Polymer	390 µF	12 mm
