726-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 16POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Contact Type	Termination	Card Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Color	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch	Pitch	Contact Material	Number of Positions/Bay/Row	Mounting Type	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Rows

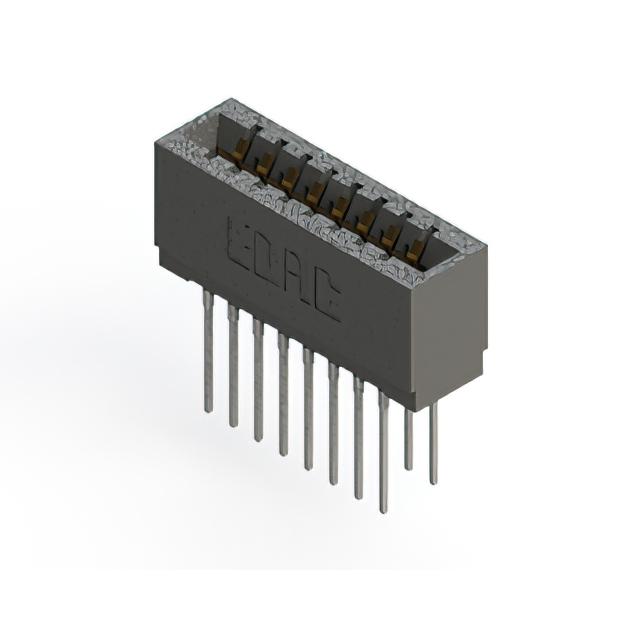

EDAC Inc. 726-016-545-201	Polyester Thermoplastic	2	2	Cantilever	Press-Fit Wire Wrap	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Black	Dual	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	8	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

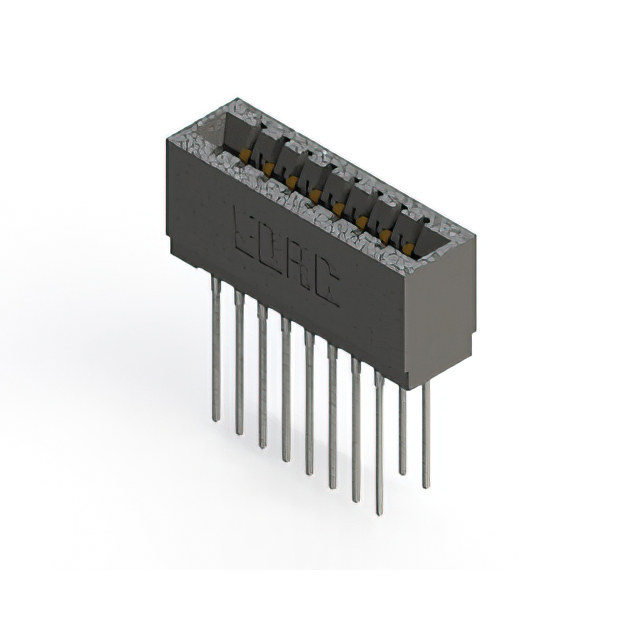

EDAC Inc. 726-016-553-201	Polyester Thermoplastic	2	2	Cantilever	Press-Fit Wire Wrap	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Black	Dual	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	8	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

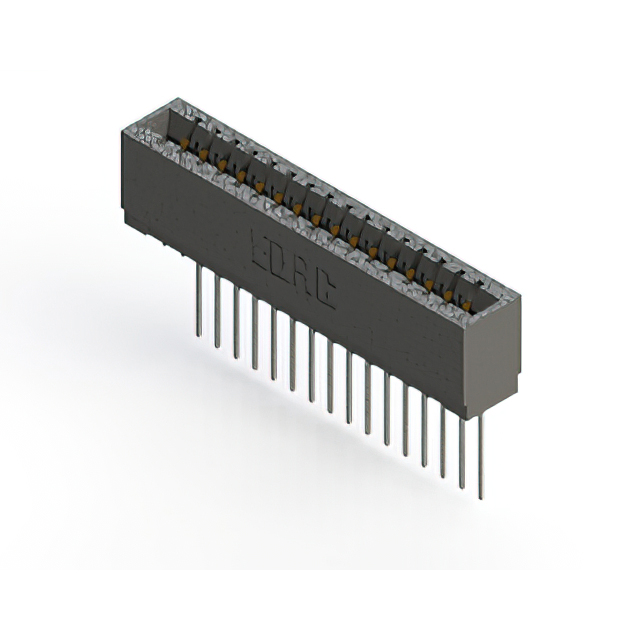

EDAC Inc. 726-016-553-101	Polyester Thermoplastic			Cantilever	Press-Fit Wire Wrap	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	Black	Single	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	16	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

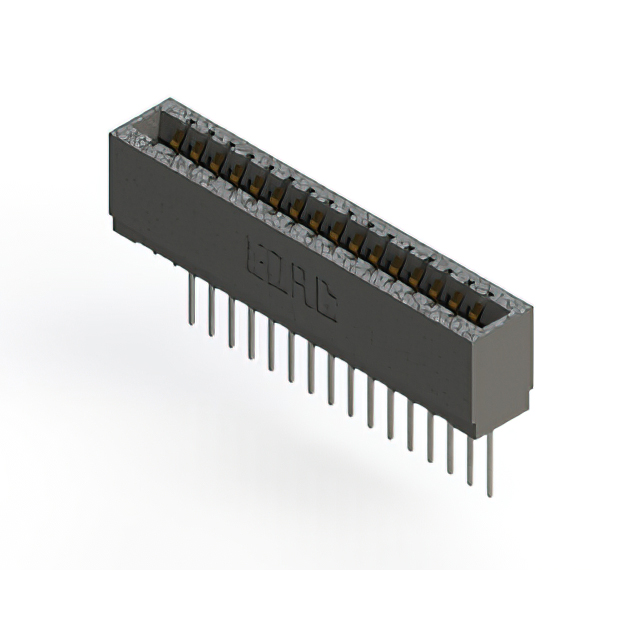

EDAC Inc. 726-016-545-101	Polyester Thermoplastic			Cantilever	Press-Fit Wire Wrap	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	Black	Single	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	16	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

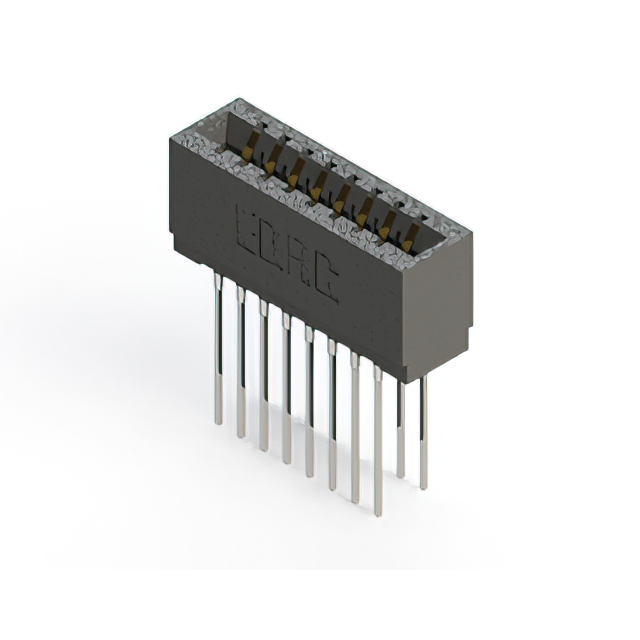

EDAC Inc. 726-016-541-201	Polyester Thermoplastic	2	2	Cantilever	Press-Fit Wire Wrap	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Black	Dual	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	8	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

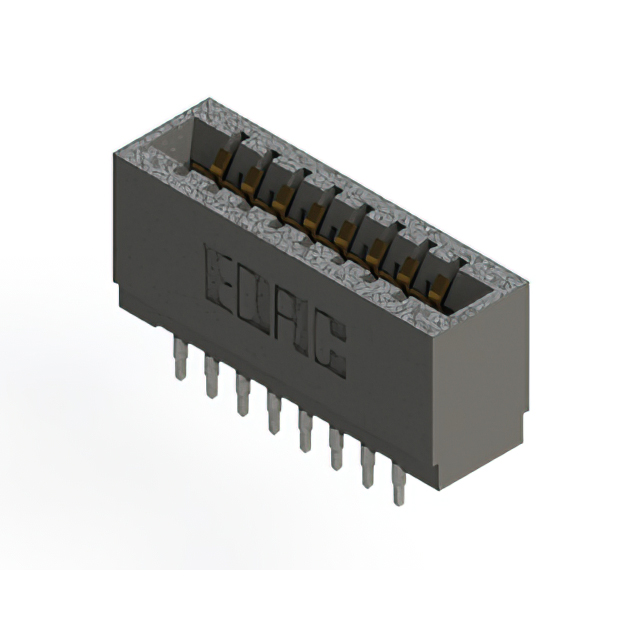

EDAC Inc. 726-016-525-201	Polyester Thermoplastic	2	2	Cantilever	Press-Fit	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Black	Dual	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	8	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

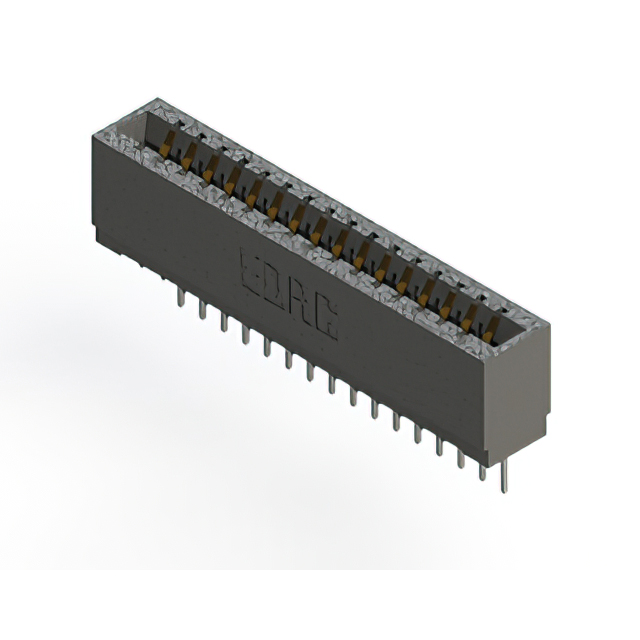

EDAC Inc. 726-016-527-101	Polyester Thermoplastic			Cantilever	Press-Fit	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	Black	Single	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	16	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

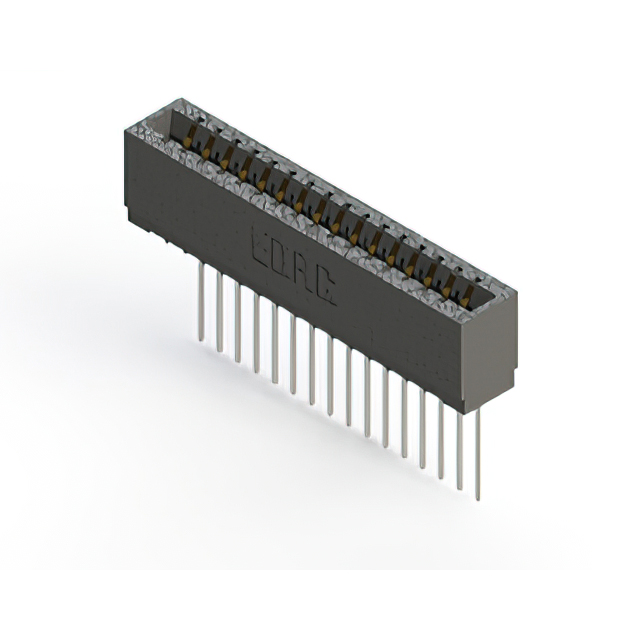

EDAC Inc. 726-016-541-101	Polyester Thermoplastic			Cantilever	Press-Fit Wire Wrap	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	Black	Single	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	16	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

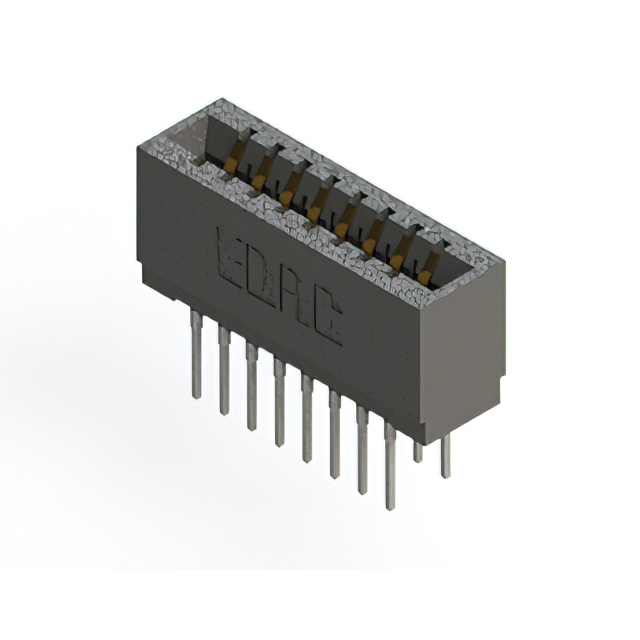

EDAC Inc. 726-016-527-201	Polyester Thermoplastic	2	2	Cantilever	Press-Fit	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Black	Dual	-40 C	105 ░C	16	3.18 mm	0.125 in	Copper Alloy	8	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
