OSTNR06 Series

Catalog

3.5MM TERM BLOCK HEADER W/ FLANG

Part	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Housing Material	Contact Material	Current - UL	Color	Pitch	Pitch	Positions Per Level	Number of Positions	Number of Levels	Header Orientation	Voltage - UL	Mounting Type	Contact Mating Finish	Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Insulation Height	Insulation Height

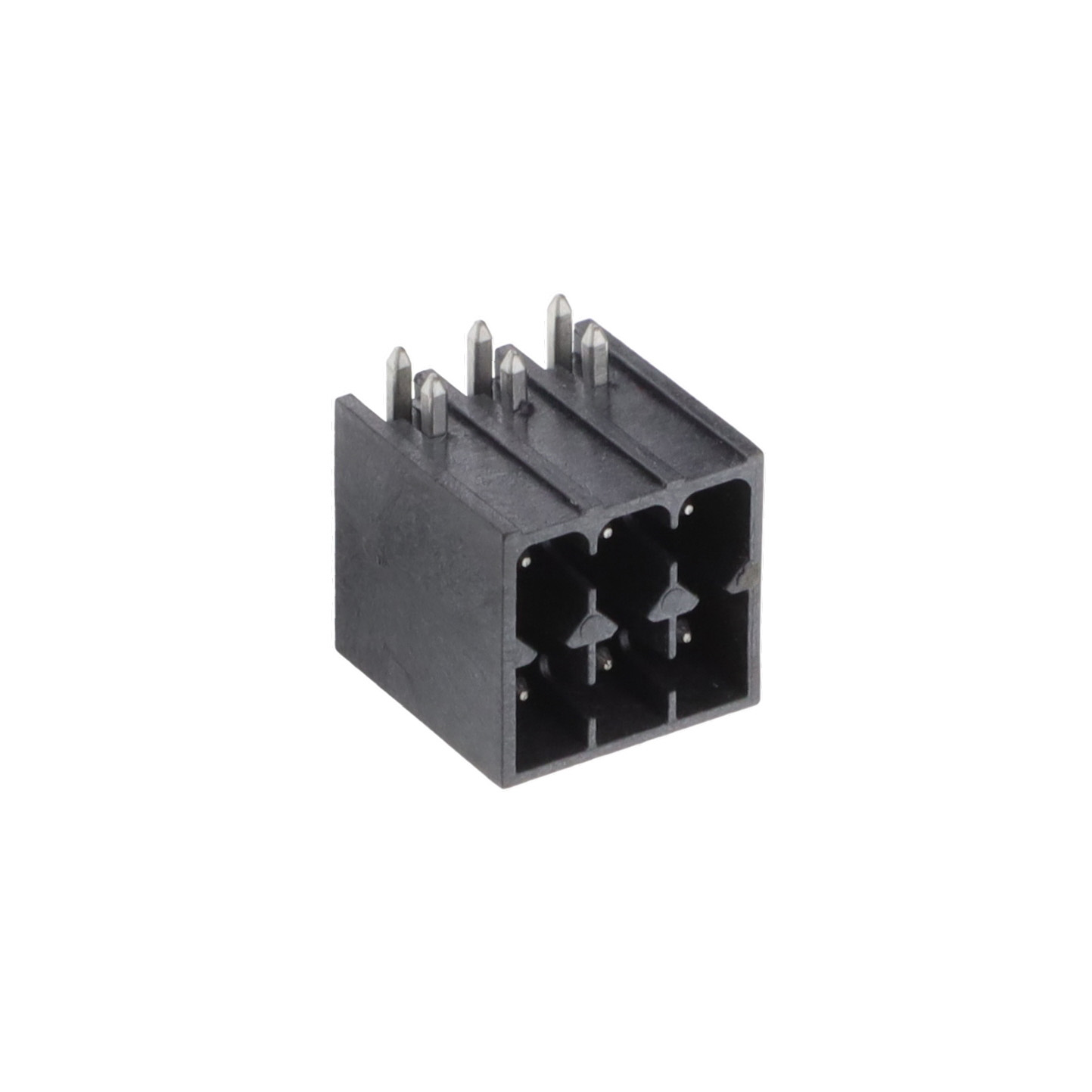

On Shore Technology Inc. OSTNR061101	10.8 mm	0.425 in	UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	Black	3.5 mm	0.138 "	3	6	2	90° Right Angle	150 V	Through Hole	Tin	Header Male Pins Shrouded (4 Side)	Solder	115 °C	-40 C

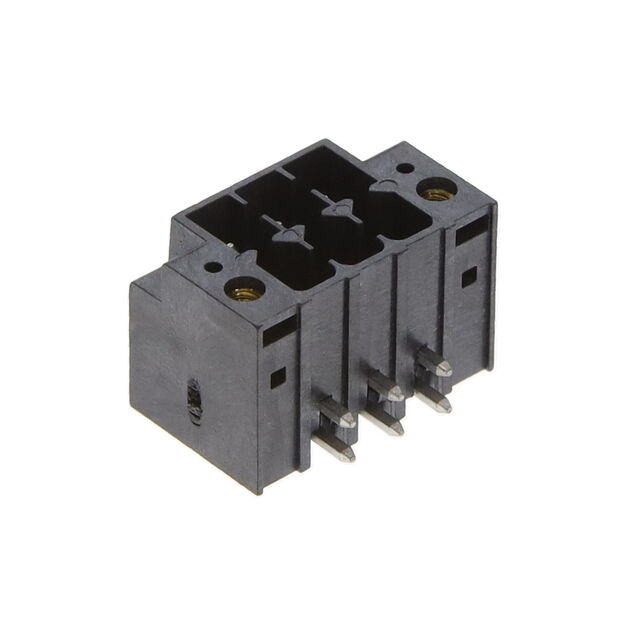

On Shore Technology Inc. OSTNR061201	10.8 mm	0.425 in	UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	Black	3.5 mm	0.138 "	3	6	2	90° Right Angle	150 V	Through Hole	Tin	Header Male Pins Shrouded (4 Side)	Solder	115 °C	-40 C	Mating Flange

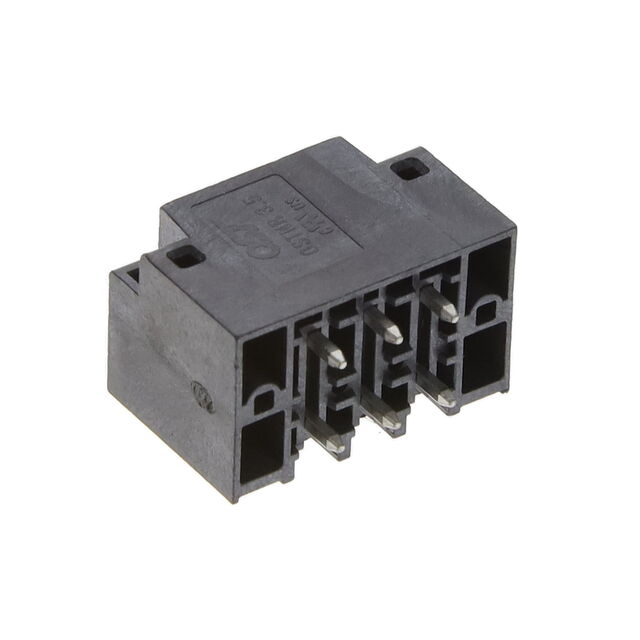

On Shore Technology Inc. OSTNR061200			UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	Black	3.5 mm	0.138 "	3	6	2	Vertical	300 V	Through Hole	Tin	Header Male Pins Shrouded (4 Side)	Solder	115 °C	-40 C	Mating Flange	11.6 mm	0.457 in

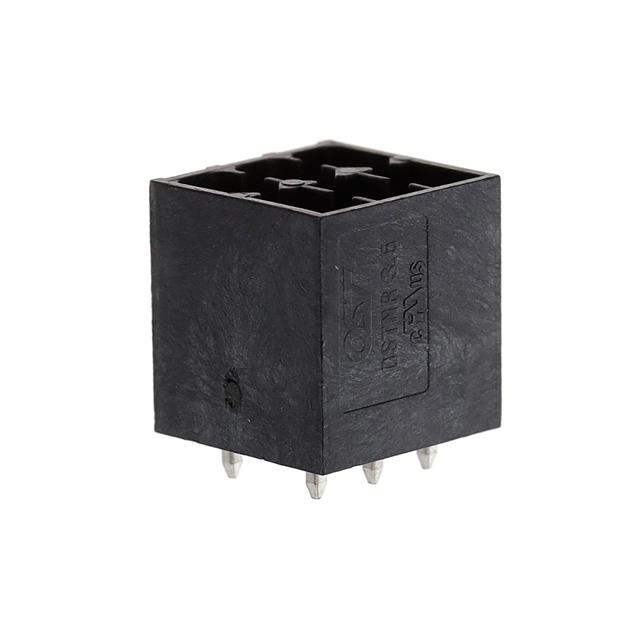

On Shore Technology Inc. OSTNR061100			UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	Black	3.5 mm	0.138 "	3	6	2	Vertical	300 V	Through Hole	Tin	Header Male Pins Shrouded (4 Side)	Solder	115 °C	-40 C		11.6 mm	0.457 in
