BM2SCQ123 Series

Quasi-resonant AC/DC Converter with Built-in 1700 V SiC-MOSFET

Catalog

Quasi-resonant AC/DC Converter with Built-in 1700 V SiC-MOSFET

Part	Supplier Device Package	Voltage - Breakdown	Internal Switch(s)	Control Features	Mounting Type	Package / Case	Frequency - Switching	Power (Watts)	Output Isolation	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fault Protection	Power - Output	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Main Purpose	Contents	Voltage - Output	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Utilized IC / Part
Rohm Semiconductor BM2SCQ123T-LBZ	TO-220-6M	1700 V		Soft Start	Through Hole	TO-220-6 Full Pack Formed Leads	30 kHz 120 kHz	1.5 W	Isolated	27.5 V	15 V	-40 C	105 ░C	Over Current Over Voltage

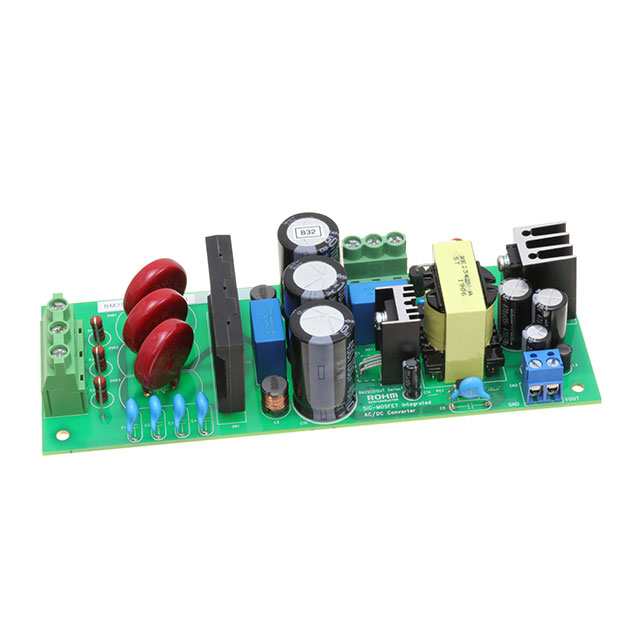

Rohm Semiconductor BM2SCQ123T-EVK-001															48 W	Board(s)	1 Isolated Output Isolated	1	Fully Populated	AC/DC Primary Side	Board(s)	24 V	Flyback	210 VAC 300 V	480 VAC 900 V	2 A	BM2SCQ123

Catalog

Quasi-resonant AC/DC Converter with Built-in 1700 V SiC-MOSFET

Description

BM2SCQ123T-LBZ is a quasi-resonant AC/DC converter that provides an optimum system for all products which has an electrical outlet. Quasi-resonant operation enables soft switching and helps to keep the EMI low. This IC can be designed easily because it includes the 1700 V/4 A SiC (Silicon-Carbide) MOSFET. Design with a high degree of flexibility is achieved with current detection resistors as external devices. The burst operation reduces an input power at light load. It includes various protection functions, such as soft start function, burst operation, over current limiter per cycle, over-voltage protection function, overload protection function.Clickherefor the board designed to fully evaluate BM2SCQ123T-LBZ. In addition you can choose from a variety of power and topologyevaluation boards.
