MDCG-4-22-33 Series

MDCG-4 22-33

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

MDCG-4 22-33

Part	Release Time	Size - Body [x]	Size - Body [diameter]	Size - Body [x]	Size - Body [diameter]	Capacitance	Termination Style	Voltage - Switching AC [custom]	Operate Time	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Switching DC	Mounting Type	Power - Rated	Length - Overall [x]	Length - Overall	Current - Switching	Type	Current - Carry	Operate Range [Max]	Operate Range [Min]
Littelfuse/Commercial Vehicle Products MDCG-4-22-33	0.2 ms	15.24 mm	2.28 mm	0.6 in	0.09 in	0.2 pF	Axial	140 V	0.6 ms	SPST-NO	125 °C	-40 °C	200 V	Through Hole	10 W	1.59 in	40.39 mm	350 mA 500 mA	Glass Body Reed	1.2 A	33 AT	22

Catalog

MDCG-4 22-33

Key Features

• Normally open switch capable of switching 200Vdc or 0.5A at up to 10 Watts

• Available sensitivity range of 12-38 AT

Description

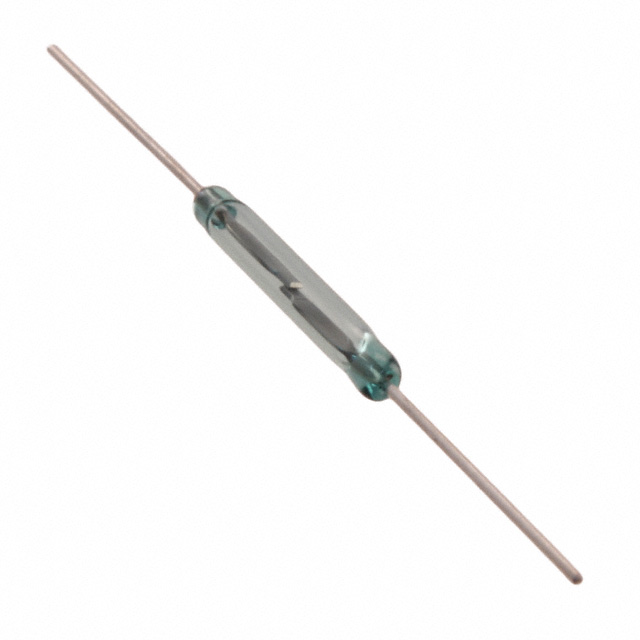

A sub-miniature, normally open switch with a 15.24mm long x 2.28mm diameter (0.600" x 0.090") glass envelope. Capable of switching 200Vdc at 10W. Available sensitivity range of 12-38 AT. High insulation resistance of 1010 ohms minimum and contact resistance of less than 100 milliohms. Available in surface mount version (MDSM-4). Ideally suited for reed relays, security, metering, limit sensing, telecom and office equipment applications.
