05K432 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION N TYPE ADAPTER
| Part | Insertion Loss | Mating Cycles | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Dielectric Material | Frequency - Max [Max] | Convert To (Adapter End) | Impedance | Adapter Type | Style | Mounting Feature | Conversion Type | Convert From (Adapter End) | Center Contact Plating | Adapter Series | Mounting Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

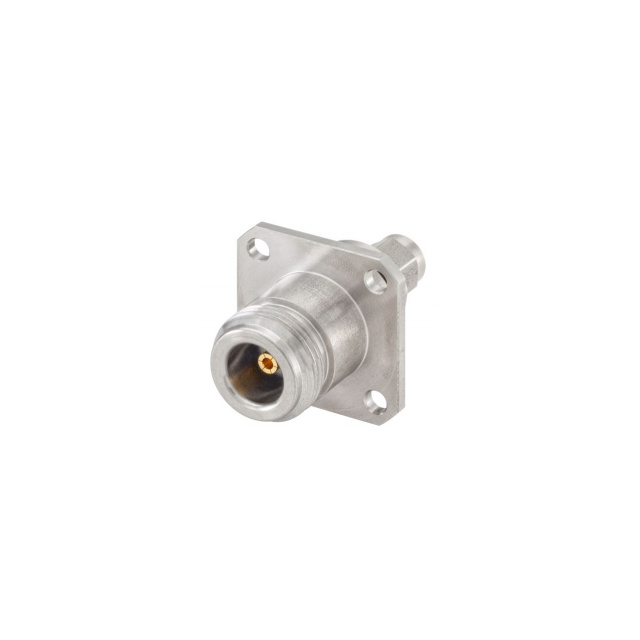

 Rosenberger | 0.42 dB | 500 | Beryllium Copper Brass | 85 °C | -40 C | Stainless Steel | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | 18 GHz | SMA Plug Male Pin | 50 Ohms | Plug to Jack | Straight | Flange | Between Series | Female Socket N Jack | Gold | RPC-N to SMA | Panel Mount | |

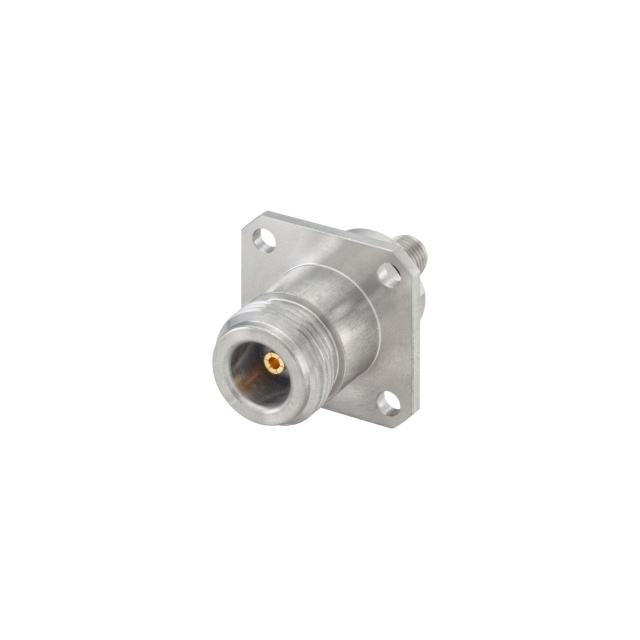

 Rosenberger | 0.42 dB | 500 | Beryllium Copper Brass | 85 °C | -40 C | Stainless Steel | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | 18 GHz | SMA Jack Female Socket | 50 Ohms | Jack to Jack | Straight | Flange | Between Series | Female Socket N Jack | Gold | RJC-N to SMA | Panel Mount | Female to Female |
