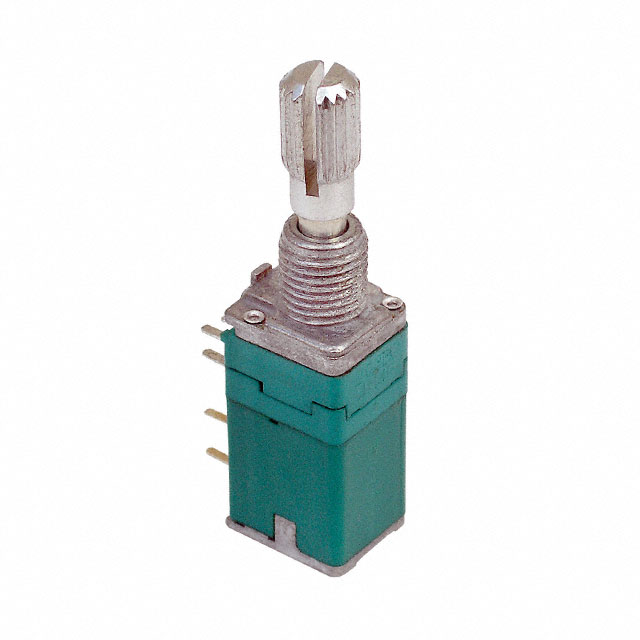

PTM902 Series

Catalog

PANEL CONTROL - 9MM-ST-CARBON /TRAY PACKAGING

Part	Power (Watts)	Power (Watts)	Bushing Thread	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)	Termination Style	Tolerance	Actuator Type	Built in Switch	Actuator Length [x]	Actuator Length [x]	Rotation	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Number of Gangs	Mounting Type	Resistive Material	Adjustment Type	Taper	Number of Turns	Power (Watts)	Resistance (Ohms) [custom]	Resistance (Ohms)
Bourns Inc. PTM902-820K-103B1	0.05 W	50 mW	M7 x 0.75	6 mm	0.236 in	10k	Board Locks PC Pins	20 %	Knurled and Slotted	Push-Push SPDT	0.787 in	20 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Linear	1
Bourns Inc. PTM902-020F-104B2	0.05 W	50 mW	M7 x 0.75	6 mm	0.236 in	100k	Board Locks PC Pins	20 %	Flatted	Push-Push SPDT	0.787 in	20 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Linear	1
Bourns Inc. PTM902-025K-503A2		25 mW	M7 x 0.75	6 mm	0.236 in		Board Locks PC Pins	20 %	Knurled and Slotted	Push-Push SPDT	0.984 in	25 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Logarithmic	1	1/40	50 kOhms
Bourns Inc. PTM902-120K-503B2	0.05 W	50 mW	M7 x 0.75	6 mm	0.236 in		Board Locks PC Pins	20 %	Knurled and Slotted		0.787 in	20 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Linear	1		50 kOhms
Bourns Inc. PTM902-125S-103B2	0.05 W	50 mW	M7 x 0.75	6 mm	0.236 in	10k	Board Locks PC Pins	20 %	Slotted		0.984 in	25 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Linear	1
Bourns Inc. PTM902-020K-204A2		25 mW	M7 x 0.75	6 mm	0.236 in		Board Locks PC Pins	20 %	Knurled and Slotted	Push-Push SPDT	0.787 in	20 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Logarithmic	1	1/40
Bourns Inc. PTM902-020K-503B1	0.05 W	50 mW	M7 x 0.75	6 mm	0.236 in		Board Locks PC Pins	20 %	Knurled and Slotted	Push-Push SPDT	0.787 in	20 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Linear	1		50 kOhms

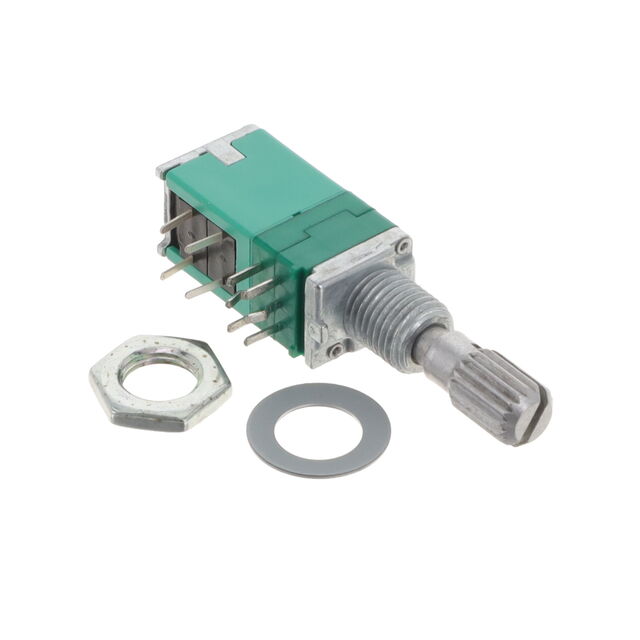

Bourns Inc. PTM902-020K-103B1	0.05 W	50 mW	M7 x 0.75	6 mm	0.236 in	10k	Board Locks PC Pins	20 %	Knurled and Slotted	Push-Push SPDT	0.787 in	20 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Linear	1
Bourns Inc. PTM902-020K-504A2		25 mW	M7 x 0.75	6 mm	0.236 in		Board Locks PC Pins	30 %	Knurled and Slotted	Push-Push SPDT	0.787 in	20 mm	300 ░	9.5 mm	0.374 "	0.447 "	11.35 mm	2	Panel Mount	Carbon	Side Adjustment	Logarithmic	1	1/40		500 kOhms
