V7-3S1 Series

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Pretravel	Pretravel	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Circuit	Differential Travel	Differential Travel	Switch Function	Operating Position	Operating Position	Differential Travel [x]	Differential Travel [x]	Differential Travel	Release Force
Honeywell Sensing and Productivity Solutions V7-3S17D8-000-3	Quick Connect	125 V	100 mA	Round (Pin Plunger)	1.2 mm	0.047 in	Chassis Mount	100000 Cycles	85 °C	-40 C	50 gf	1.27 mm	0.05 "	10000000 Cycles	SPDT	0.15 mm	0.006 in	On-Mom	14.7 mm	0.579 in

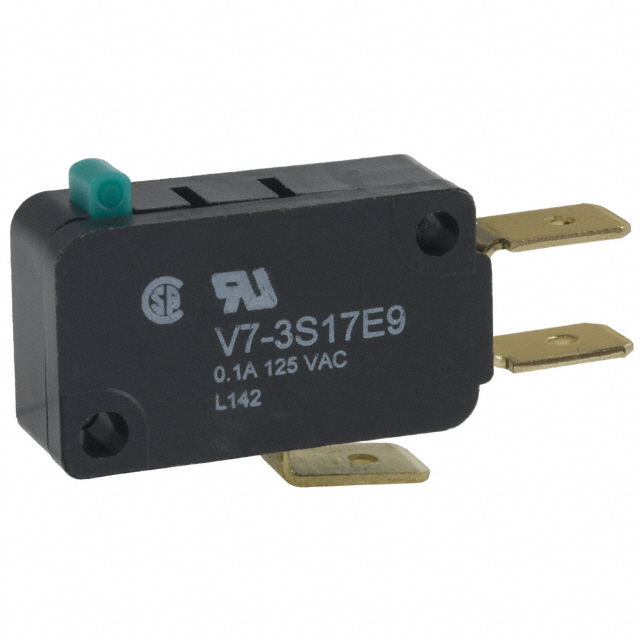

Honeywell Sensing and Productivity Solutions V7-3S17E9	Quick Connect - 0.250" (6.3mm)	125 V	100 mA	Round (Pin Plunger)	1.2 mm	0.047 in	Chassis Mount	100000 Cycles	85 °C	-40 C	50 gf	1.27 mm	0.05 "	10000000 Cycles	SPDT			On-Mom	14.7 mm	0.579 in	0.01 in	0.25 mm

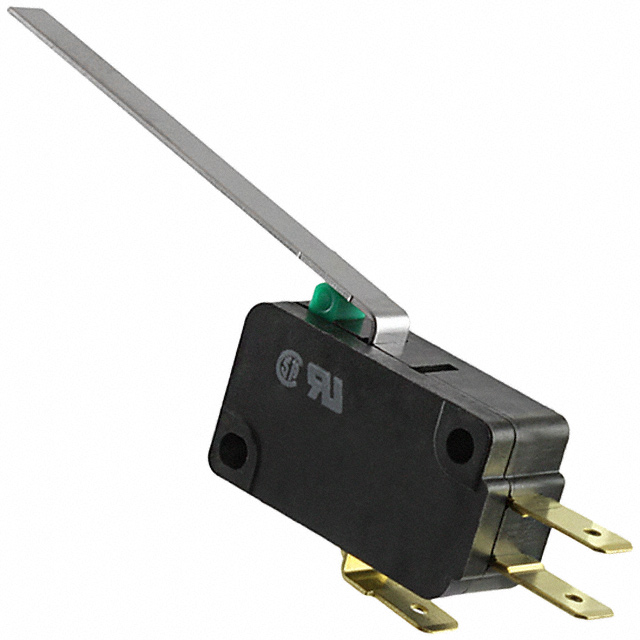

Honeywell Sensing and Productivity Solutions V7-3S17D8-148	Quick Connect	125 V	100 mA	Lever Straight	11.7 mm	0.46 in	Chassis Mount	100000 Cycles	85 °C	-40 C	8 gf	5.2 mm	0.205 "	10000000 Cycles	SPDT		2.6 mm	On-Mom	15.3 mm	0.602 in			0.103 in	0.51 gf
