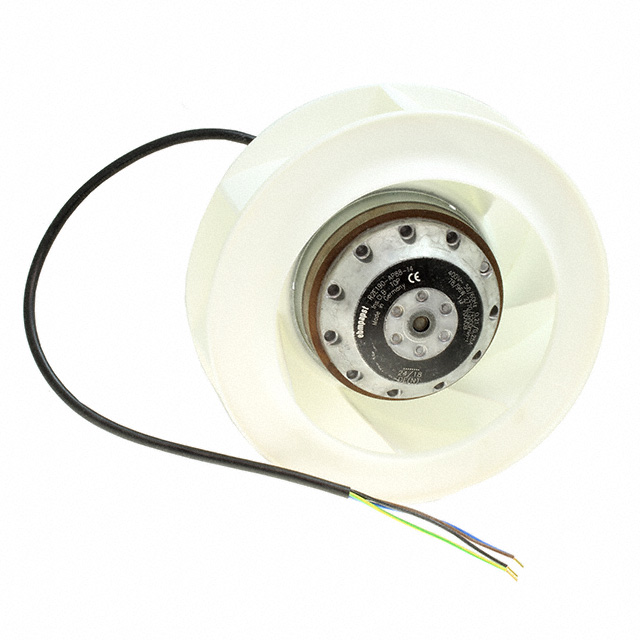

R2E190 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
MOTORIZED IMPELLER
| Part | Material - Blade | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Size / Dimension [diameter] | Size / Dimension | Power (Watts) | RPM | Fan Type | Bearing Type | Width [x] | Voltage - Rated | Ingress Protection | Termination | Approval Agency | Voltage Range [Min] | Voltage Range [Max] | Weight | Weight | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon | 270 mA | -25 °C | 55 °C | Capacitor Thermal Overload Protector (TOP) | 190 mm | Round | 100 W | 3150 RPM | Motorized Impellers | Ball | 73 mm | 400 VAC | IP44 | 4 Wire Leads | CE | |||||||||
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | -25 °C | 75 ░C | 190 mm | Round | 70 W | 2450 RPM | Motorized Impellers | Ball | 68.5 mm | 115 VAC | IP44 | 4 Wire Leads | UL | 100 VAC | 130 VAC | 2.6 lbs | 1.2 kg | 341.4 CFM | 9.56 m³/min | |||||
ebm-papst Inc. | Polyamide (PA) Nylon | 0.35 A | -25 °C | 50 °C | Capacitor Thermal Overload Protector (TOP) | 190 mm | Round | 80 W | 2580 RPM | Motorized Impellers | Ball | 68.5 mm | 230 VAC | IP44 | 3 Position Rectangular Connector | CCC CE CSA UL | 50 °C | -25 °C | |||||||
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | -25 °C | 75 ░C | 190 mm | Round | 70 W | 2500 RPM | Motorized Impellers | Ball | 68.5 mm | 230 VAC | IP44 | 4 Wire Leads | UL | 2.6 lbs | 1.2 kg | 347.3 CFM | 9.72 m³/min | 68 dB | ||||||
 ebm-papst Inc. | Polypropylene (PP) | 0.25 A | -25 °C | 40 °C | Capacitor Thermal Overload Protector (TOP) | 190 mm | Round | 96 W | 3200 RPM | Motorized Impellers | Ball | 68.5 mm | 400 VAC | IP44 | 4 Wire Leads with Splice Terminals | CE | 40 °C | -25 °C |
