74AC11000 Series

4-ch, 2-input, 3-V to 5.5-V NAND gates

Catalog

4-ch, 2-input, 3-V to 5.5-V NAND gates

Part	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Max Propagation Delay @ V, Max CL	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Inputs	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Current - Quiescent (Max) [Max]	Number of Circuits	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case	Package / Case	Package / Case
Texas Instruments 74AC11000D	85 °C	-40 C	2.1 V	3.85 V	6.5 ns	16-SOIC	5.5 V	3 V	Surface Mount	2	0.9 V	1.65 V	4 µA	4	NAND Gate	24 mA	24 mA	16-SOIC	0.154 in 3.9 mm

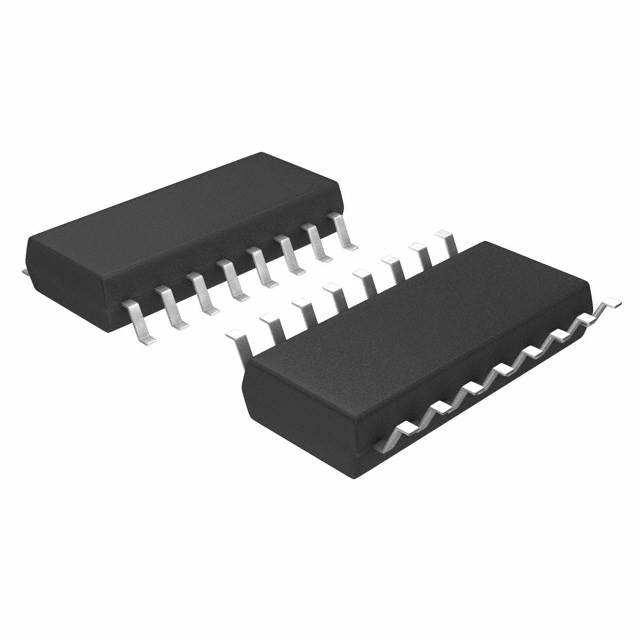

Texas Instruments 74AC11000NSR	85 °C	-40 C	2.1 V	3.85 V	6.5 ns	16-SO	5.5 V	3 V	Surface Mount	2	0.9 V	1.65 V	4 µA	4	NAND Gate	24 mA	24 mA	16-SOIC		5.3 mm	0.209 in
Texas Instruments 74AC11000NS
Texas Instruments 74AC11000DR	85 °C	-40 C	2.1 V	3.85 V	6.5 ns	16-SOIC	5.5 V	3 V	Surface Mount	2	0.9 V	1.65 V	4 µA	4	NAND Gate	24 mA	24 mA	16-SOIC	0.154 in 3.9 mm

Catalog

4-ch, 2-input, 3-V to 5.5-V NAND gates

Description

This device contains four independent 2-input NAND gates. It performs the Boolean function Y =A • BorY =A+Bin positive logic. The 74AC11000 is characterized for operation from -40°C to 85°C. This device contains four independent 2-input NAND gates. It performs the Boolean function Y =A • BorY =A+Bin positive logic. The 74AC11000 is characterized for operation from -40°C to 85°C.
