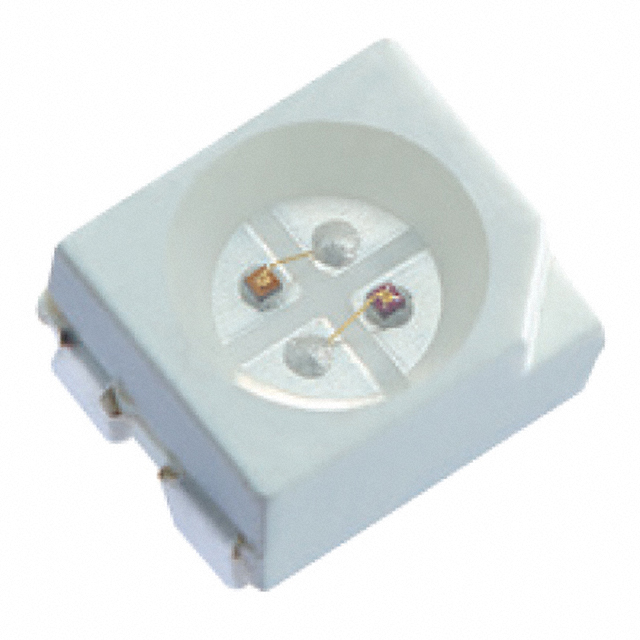

XZMYKVG45 Series
Manufacturer: SunLED
Beta
⌘K
LED GRN/YLW CLEAR 4PLCC SMD
| Part | Wavelength - Peak | Height (Max) [z] | Lens Style | Viewing Angle | Lens Color | Current - Test | Mounting Type | Lens Size [diameter] | Supplier Device Package | Configuration | Millicandela Rating | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Lens Transparency | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 574nm Green 590nm Yellow | 2.1 mm | Round with Flat Top | 120 ° | Colorless | 20 mA 20 mA | Surface Mount | 2.4 mm Dia | 4-PLCC | Independent | 79 mcd 238 mcd | 1.3 mm 2.8 mm | 3.2 mm | 4-PLCC | 570 nm 590 nm | 2.1 V | 2 V | Clear | Green Yellow |
 SunLED | 574nm Green 590nm Yellow | 2.1 mm | Round with Flat Top | 120 ° | Colorless | 20 mA 20 mA | Surface Mount | 2.4 mm Dia | 4-PLCC | Independent | 79 mcd 238 mcd | 2.8 mm | 3.2 mm | 4-PLCC | 570 nm 590 nm | 2.1 V | 2 V | Clear | Green Yellow |
