206764 Series

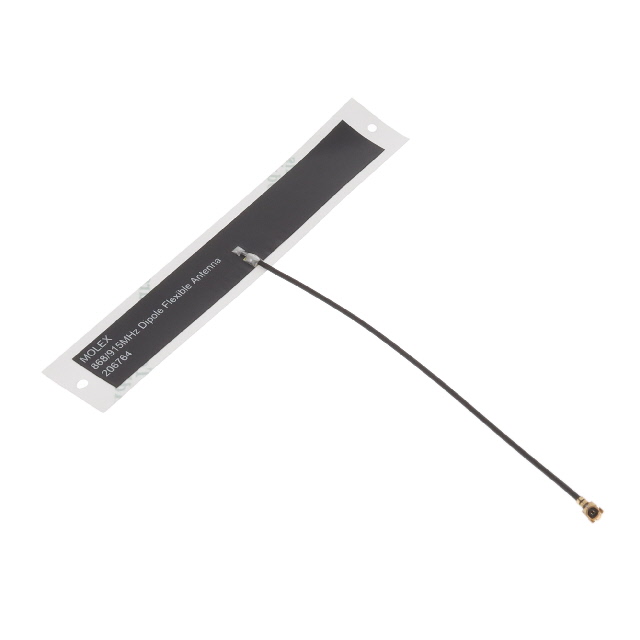

ISM 868/915MHz Dipole Flexible Antenna, 150.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors

Manufacturer: Molex

Catalog

ISM 868/915MHz Dipole Flexible Antenna, 150.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors

Part	Applications	Height (Max)	Height (Max) [Max]	Frequency Group [Max]	Frequency Group [Min]	RF Family/Standard	Return Loss	Frequency (Center/Band)	Gain	Antenna Type	Features	Features	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Termination	Number of Bands
Molex 2067640250
Molex 2067640100	General Purpose	0.1 mm	0.004 in	1 GHz	300 MHz	General ISM Lora	-9 dB	868 MHz 915 MHz	1.2 dBi	Flat Patch	Cable	100 mm	Adhesive	870 MHz 928 MHz	863 MHz 902 MHz	IPEX MHF1 (U.FL)	2
Molex 2067640150	General Purpose	0.1 mm	0.004 in	1 GHz	300 MHz	General ISM Lora	-9 dB	868 MHz 915 MHz	1.1 dBi	Flat Patch	Cable - 150mm		Adhesive	870 MHz 928 MHz	863 MHz 902 MHz	IPEX MHF1 (U.FL)	2
Molex 2067640200	General Purpose	0.1 mm	0.004 in	1 GHz	300 MHz	General ISM Lora	-9 dB	868 MHz 915 MHz		Flat Patch	Cable	200 mm	Adhesive	870 MHz 928 MHz	863 MHz 902 MHz	IPEX MHF1 (U.FL)	2

ISM 868/915MHz Dipole Flexible Antenna, 150.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
