Q-PTFE Series

Manufacturer: Qualtek

Catalog

HEAT SHRINK TUBING & SLEEVES 0 AWG TEFLON

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Length [x]	Length [x]	Shrink Temperature	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Shelf Life	Type
Qualtek Q-PTFE-0AWG-02-QB48IN-5	0.47 in	11.94 mm	40 °C	14 °F	-50 °F	40 °C	260 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	4 ft	1.22 m	350 °C	Chemical Resistant Flame Retardant	0.015 in	0.38 mm	1	2	0.337 in	8.56 mm	Clear	144 Months	Tubing Semi Rigid
Qualtek Q-PTFE-4AWG-02-QB48IN-5	0.37 in	9.4 mm	40 °C	14 °F	-50 °F	40 °C	260 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	4 ft	1.22 m	350 °C	Chemical Resistant Flame Retardant	0.015 in	0.38 mm	1	2	0.214 in	5.44 mm	Clear	144 Months	Tubing Semi Rigid
Qualtek Q-PTFE-16AWG-02-QB48IN-25	0.093 "	2.36 mm	40 °C	14 °F	-50 °F	40 °C	260 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	4 ft	1.22 m	350 °C	Chemical Resistant Flame Retardant	0.012 in	0.3 mm	1	2	0.06 in	1.52 mm	Clear	144 Months	Tubing Semi Rigid

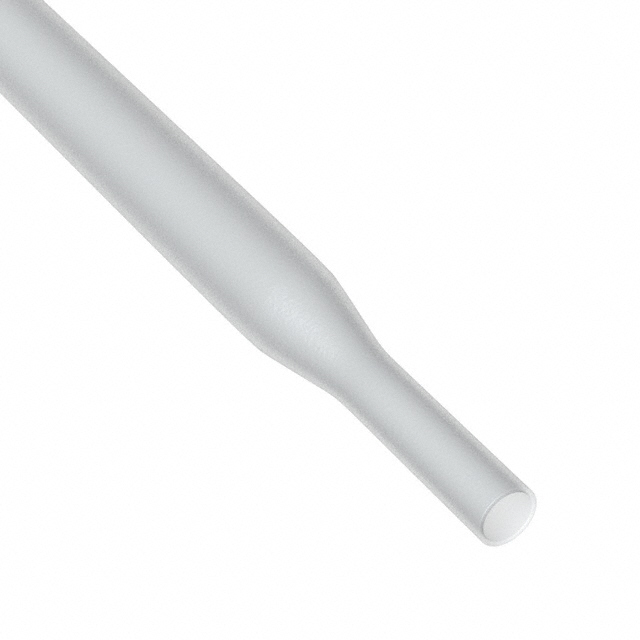

Qualtek Q-PTFE-14AWG-02-QB48IN-25	0.12 "	3.05 mm	40 °C	14 °F	-50 °F	40 °C	260 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	4 ft	1.22 m	350 °C	Chemical Resistant Flame Retardant	0.012 in	0.3 mm	1	2	0.072 "	1.83 mm	Clear	144 Months	Tubing Semi Rigid

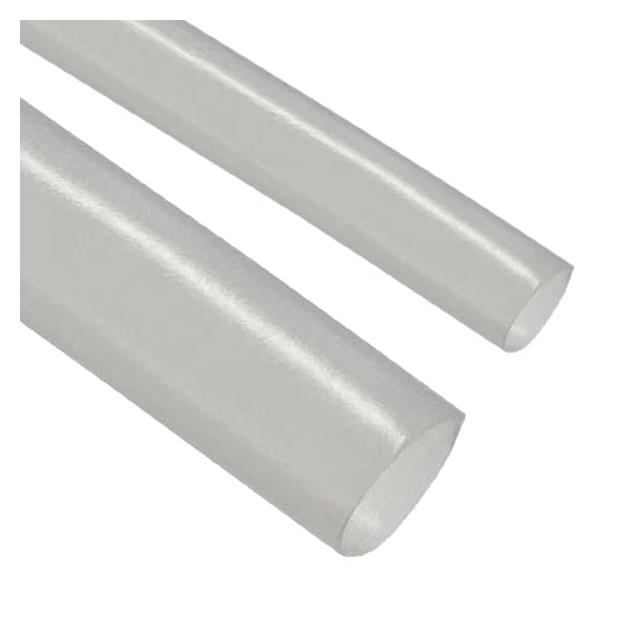

Qualtek Q-PTFE-2AWG-02-QB48IN-5	0.43 in	10.92 mm	40 °C	14 °F	-50 °F	40 °C	260 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	4 ft	1.22 m	350 °C	Chemical Resistant Flame Retardant	0.015 in	0.38 mm	1	2	0.272 in	6.91 mm	Clear	144 Months	Tubing Semi Rigid

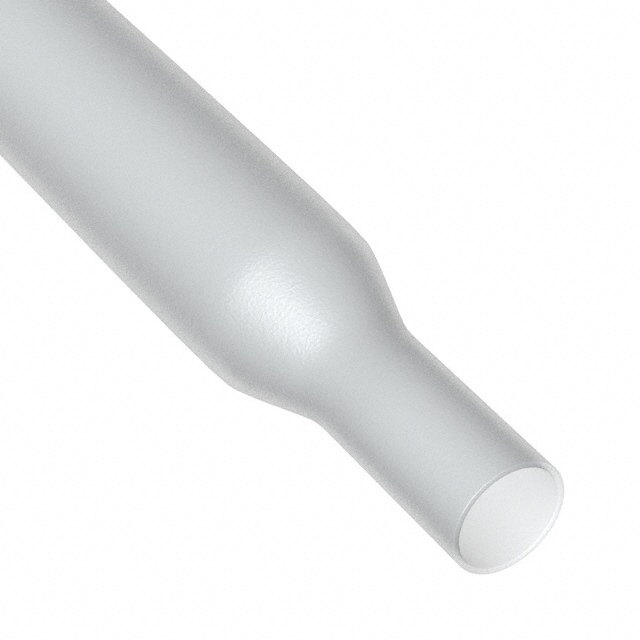

Qualtek Q-PTFE-8AWG-02-QB48IN-5	0.24 in	6.1 mm	40 °C	14 °F	-50 °F	40 °C	260 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	4 ft	1.22 m	350 °C	Chemical Resistant Flame Retardant	0.015 in	0.38 mm	1	2	0.14 in	3.56 mm	Clear	144 Months	Tubing Semi Rigid
