HLG-240H Series

Catalog

LED DRVR CC/CV AC/DC

Part	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output	Termination Style	Features	Ratings	Topology	Voltage - Input (Min) [Min]	Efficiency	Approval Agency	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Current - Output (Max)
MEAN WELL USA Inc. HLG-240H-36AB	Chassis Mount	6.7 A	1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in	36 V	Wire Leads	OCP OTP OVP SCP	IP65	AC DC Converter	90 VAC	92.5 %	CB CCC CE cURus EAC KC PSE RCM TUV	241 W	305 VAC
MEAN WELL USA Inc. HLG-240H-C2100B	Chassis Mount	2.1 A	1	Constant Current	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in		Wire Leads	OTP OVP SCP	IP67	AC DC Converter	90 VAC	93.5 %	CB CCC CE cURus ENEC RCM	250 W	305 VAC	59 V	119 V	Analog PWM
MEAN WELL USA Inc. HLG-240H-36B	Chassis Mount	6.7 A	1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in		Wire Leads	OCP OTP OVP SCP	IP67	AC DC Converter	90 VAC	92.5 %	CB CCC CE cURus PSE RCM TUV	241 W	305 VAC	18 V	36 V	Analog PWM

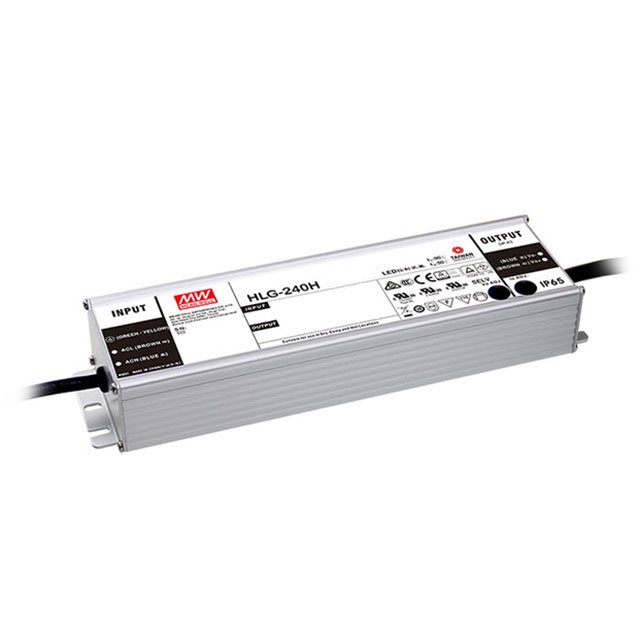

MEAN WELL USA Inc. HLG-240H-54AB	Chassis Mount	4.45 A	1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in	54 V	Wire Leads	OCP OTP OVP SCP	IP65	AC DC Converter	90 VAC	93.5 %	CB CCC CE cURus KC PSE RCM TUV	240 Watts	305 VAC			Analog PWM
MEAN WELL USA Inc. HLG-240H-48B	Chassis Mount		1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in		Wire Leads	OCP OTP OVP SCP	IP67	AC DC Converter	90 VAC	93 %	CB CCC CE cURus PSE RCM TUV	240 Watts	305 VAC	24 V	48 V	Analog PWM	5 A
MEAN WELL USA Inc. HLG-240H-12AB	Chassis Mount	16 A	1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in	12 V	Wire Leads	OCP OTP OVP SCP	IP65	AC DC Converter	90 VAC	90 %	CB CCC CE cURus EAC KC PSE RCM TUV	192 W	305 VAC
MEAN WELL USA Inc. HLG-240H-C700A	Chassis Mount	700 mA	1	Constant Current	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in		Wire Leads	OTP OVP SCP	IP65	AC DC Converter	90 VAC	93.5 %	CB CCC CE cURus ENEC RCM	250 W	305 VAC	178 V	357 V
MEAN WELL USA Inc. HLG-240H-24B	Chassis Mount	10 A	1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in		Wire Leads	OCP OTP OVP SCP	IP67	AC DC Converter	90 VAC	92.5 %	CB CCC CE cURus PSE RCM TUV	240 Watts	305 VAC	12 V	24 V	Analog PWM
MEAN WELL USA Inc. HLG-240H-42AB	Chassis Mount	5.72 A	1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in	42 V	Wire Leads	OCP OTP OVP SCP	IP65	AC DC Converter	90 VAC	92.5 %	CB CCC CE cURus EAC KC PSE RCM TUV	240 Watts	305 VAC
MEAN WELL USA Inc. HLG-240H-30B	Chassis Mount	8 A	1	Constant Current Voltage	90 °C	-40 C	3750 VDC	220.2 mm	1.53 in	8.67 "	38.8 mm	68 mm	2.68 in		Wire Leads	OCP OTP OVP SCP	IP67	AC DC Converter	90 VAC	92.5 %	CB CCC CE cURus PSE RCM TUV	240 Watts	305 VAC	15 V	30 VDC	Analog PWM
