392-098 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 98POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions	Number of Rows [custom]	Read Out	Card Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Gender	Pitch	Pitch	Contact Type	Features

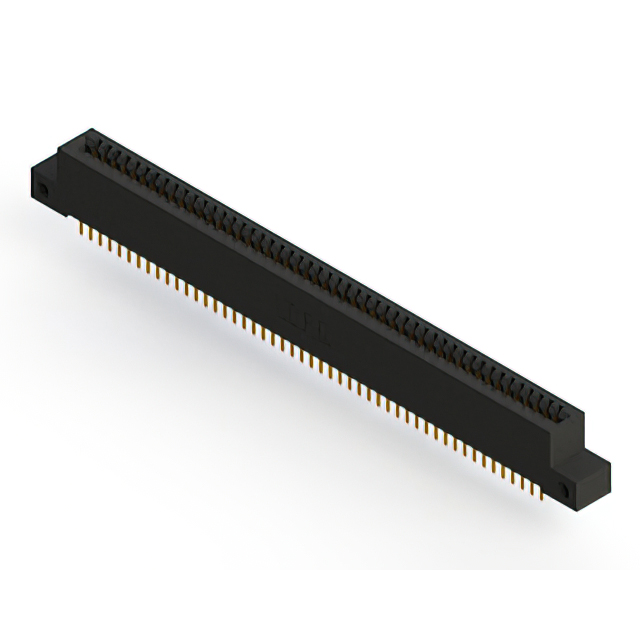

EDAC Inc. 392-098-521-212	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	-40 C	105 ░C	Solder	Female	0.1 "	2.54 mm	Cantilever
EDAC Inc. 392-098-520-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	-40 C	105 ░C	Solder	Female	0.1 "	2.54 mm	Cantilever
EDAC Inc. 392-098-540-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black				Copper Alloy	-40 C	105 ░C	Wire Wrap	Female	0.1 "	2.54 mm	Cantilever
EDAC Inc. 392-098-559-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	-40 C	105 ░C	Solder Wire Wrap	Female	0.1 "	2.54 mm	Cantilever
EDAC Inc. 392-098-556-212	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	-40 C	105 ░C	Solder	Female	0.1 "	2.54 mm	Cantilever	Card Extender
EDAC Inc. 392-098-555-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	-40 C	105 ░C	Solder Eyelet(s)	Female	0.1 "	2.54 mm	Cantilever	Card Extender
EDAC Inc. 392-098-544-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Wire Wrap	Female	0.1 "	2.54 mm	Cantilever
EDAC Inc. 392-098-523-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	-40 C	105 ░C	Solder	Female	0.1 "	2.54 mm	Cantilever
EDAC Inc. 392-098-520-202	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	-40 C	105 ░C	Solder	Female	0.1 "	2.54 mm	Cantilever
EDAC Inc. 392-098-555-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	98	2	Dual	Non Specified - Dual Edge	Gold	0.25 Ám	10 Áin	49	Black	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	-40 C	105 ░C	Solder Eyelet(s)	Female	0.1 "	2.54 mm	Cantilever	Card Extender
