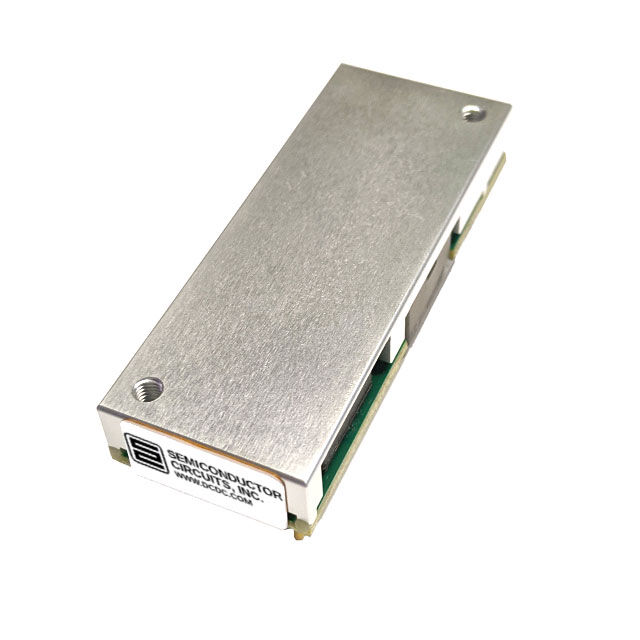

CPE15A18 Series
Manufacturer: Semiconductor Circuits, Inc.
Beta
⌘K
DC DC CONVERTER 5V 75W
| Part | Type | Voltage - Output 1 | Mounting Type | Power (Watts) | Current - Output (Max) [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Features | Number of Outputs | Supplier Device Package | Applications | Voltage - Input (Min) [Min] | Voltage - Isolation | Approval Agency | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semiconductor Circuits, Inc. | Isolated Module | 5 V | Through Hole | 75 W | 15 A | Eighth Brick | 22.9 mm | 0.5 in | 58.4 mm | 2.3 in | 12.7 mm | 0.9 in | 36 V | Adjustable Output Baseplate Remote On/Off Remote Sense | 1 | Eighth Brick | ITE (Commercial) | 9 V | 2250 VDC | CSA TUV UL | Active High Enable | -40 °C | 85 °C | 92 % | ||
 Semiconductor Circuits, Inc. | Isolated Module | 5 V | Through Hole | 75 W | 15 A | Eighth Brick | 0.46 in | 58.4 mm | 2.3 in | 0.9 in | 36 V | Adjustable Output Remote On/Off | 1 | Eighth Brick | ITE (Commercial) | 9 V | 2250 VDC | CSA TUV UL | Active High Enable | -40 °C | 85 °C | 92 % | 22.9 mm | 11.8 mm |
