5100 Series

Catalog

CIRCUIT BOARD HARDWARE - PCB JUMPER

Part	Pitch	Pitch	Contact Finish	Gender	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Height [z]	Height [z]	Current Rating (Amps)	Type	Plating	Material - Insulation	Material - Body	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Color	Hole Diameter	Hole Diameter [diameter]	Composition	Resistance	Size / Dimension [y]	Size / Dimension [y]	Number of Terminations [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Package / Case	Package / Case

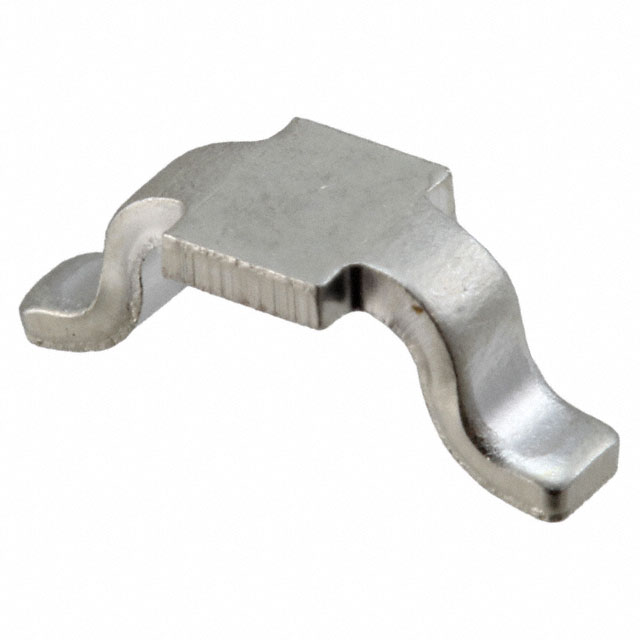

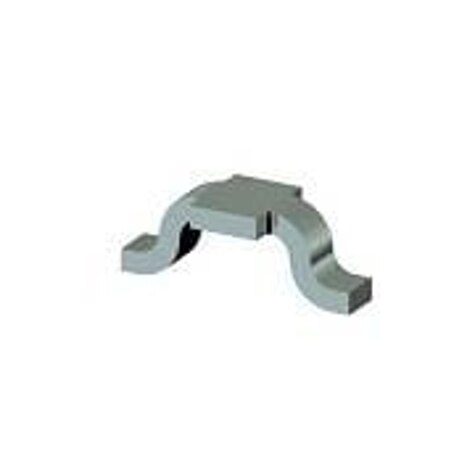

Keystone Electronics 5100	0.3 in	7.62 mm	Silver	Non-Gendered	1 x 2	2	2.54 mm	2.54 mm	20 A	Non-Insulated
Keystone Electronics 5100TR	0.3 in	7.62 mm	Silver	Non-Gendered	1 x 2	2	2.54 mm	2.54 mm	20 A	Non-Insulated
Keystone Electronics 5116										PC Test Point Miniature	Silver	Nylon 46 UL 94V-0	Phosphor Bronze	Through Hole	4.57 mm	0.18 in	2.54 mm	0.1 in	Green	1.02 mm	0.04 in
Keystone Electronics 5117										PC Test Point Miniature	Silver	Nylon 46 UL 94V-0	Phosphor Bronze	Through Hole	4.57 mm	0.18 in	2.54 mm	0.1 in	Blue	1.02 mm	0.04 in
Keystone Electronics 5110															1.55 mm	0.061 in						Metal Element	0 mOhms	0.85 mm	0.033 "	2	0.7 mm	0.028 "	Jumper	1608 Metric	0603
