ISL9103A

ISL9103A Series

500mA 2.4MHz Low IQ High Efficiency Synchronous Buck Converter

Manufacturer: Renesas Electronics Corporation

Catalog

500mA 2.4MHz Low IQ High Efficiency Synchronous Buck Converter

PartFrequency - SwitchingOutput ConfigurationSynchronous RectifierNumber of OutputsMounting TypeVoltage - Input (Min) [Min]Voltage - Output (Min/Fixed)Operating Temperature [Max]Operating Temperature [Min]Current - OutputVoltage - Input (Max) [Max]Output TypeSupplier Device PackageTopologyPackage / CaseFunctionVoltage - Output (Min/Fixed) [Min]

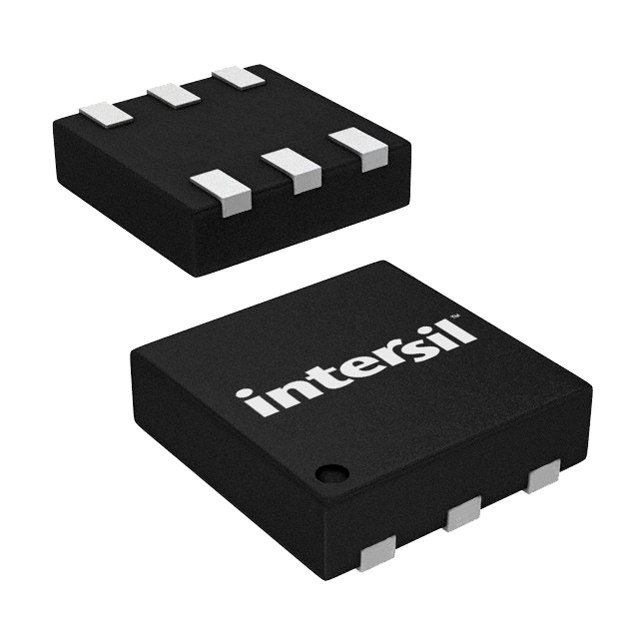

6-UTDFN, L6.1.6X1.6 PKG
Renesas Electronics Corporation
ISL9103IRUJZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
2.8 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down
ISL9103A Functional Diagram
Renesas Electronics Corporation
ISL9103AIRUCZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
1.8 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down
6-UTDFN, L6.1.6X1.6 PKG
Renesas Electronics Corporation
ISL9103IRUBZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
1.5 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down
6-UTDFN, L6.1.6X1.6 PKG
Renesas Electronics Corporation
ISL9103AIRUFZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
2.5 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down
6-UTDFN, L6.1.6X1.6 PKG
Renesas Electronics Corporation
ISL9103IRUDZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down
2 V
6-UTDFN, L6.1.6X1.6 PKG
Renesas Electronics Corporation
ISL9103AIRUWZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
1.2 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down
6-UTDFN, L6.1.6X1.6 PKG
Renesas Electronics Corporation
ISL9103IRUCZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
1.8 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down
6-UTDFN, L6.1.6X1.6 PKG
Renesas Electronics Corporation
ISL9103IRUWZ-T
2.4 MHz
Positive
1
Surface Mount
2.7 V
1.2 V
85 °C
-40 °C
500 mA
6 V
1.81 mOhm
6-UTDFN (1.6x1.6)
Buck
6-UFDFN
Step-Down

Description

AI
The ISL9103, ISL9103A is a 500mA, 2. 4MHz step-down regulator, which is ideal for powering low-voltage microprocessors in compact devices such as PDAs and cellular phones. It is optimized for generating low output voltages down to 0. 8V. The supply voltage range is from 2. 7V to 6V allowing the use of a single Li+ cell, three NiMH cells or a regulated 5V input. It has guaranteed minimum output current of 500mA. A high switching frequency of 2. 4MHz pulse-width modulation (PWM) allows using small external components. Under light load condition, the device operates at low IQskip mode with typical 20µA quiescent current for highest light load efficiency to maximize battery life, and it automatically switches to fixed frequency PWM mode under heavy load condition. The ISL9103, ISL9103A includes a pair of low ON-resistance P-Channel and N-Channel internal MOSFETs to maximize system efficiency and minimize the external component count. 100% duty-cycle operation allows less than 300mV dropout voltage at 500mA. The ISL9103, ISL9103A offers internal digital soft-start, enable for power sequence, overcurrent protection and thermal shutdown functions. In addition, the ISL9103, ISL9103A offers a quick bleeding function that discharges the output capacitor when the IC is disabled. The ISL9103, ISL9103A is offered in a 1. 6x1. 6mm UTDFN package. The complete converter occupies less than 0. 5cm2.
