1546306 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN BARRIER STRP 13CIRC 0.374"
| Part | Bottom Termination | Top Termination | Number of Rows | Terminal Block Type | Features | Pitch [x] | Pitch [x] | Voltage Rating | Barrier Type | Number of Wire Entries | Material - Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Screw Finish | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Material Flammability Rating | Number of Circuits | Color | Terminal Screw Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 26 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 13 | Black | Steel | Chassis Panel |

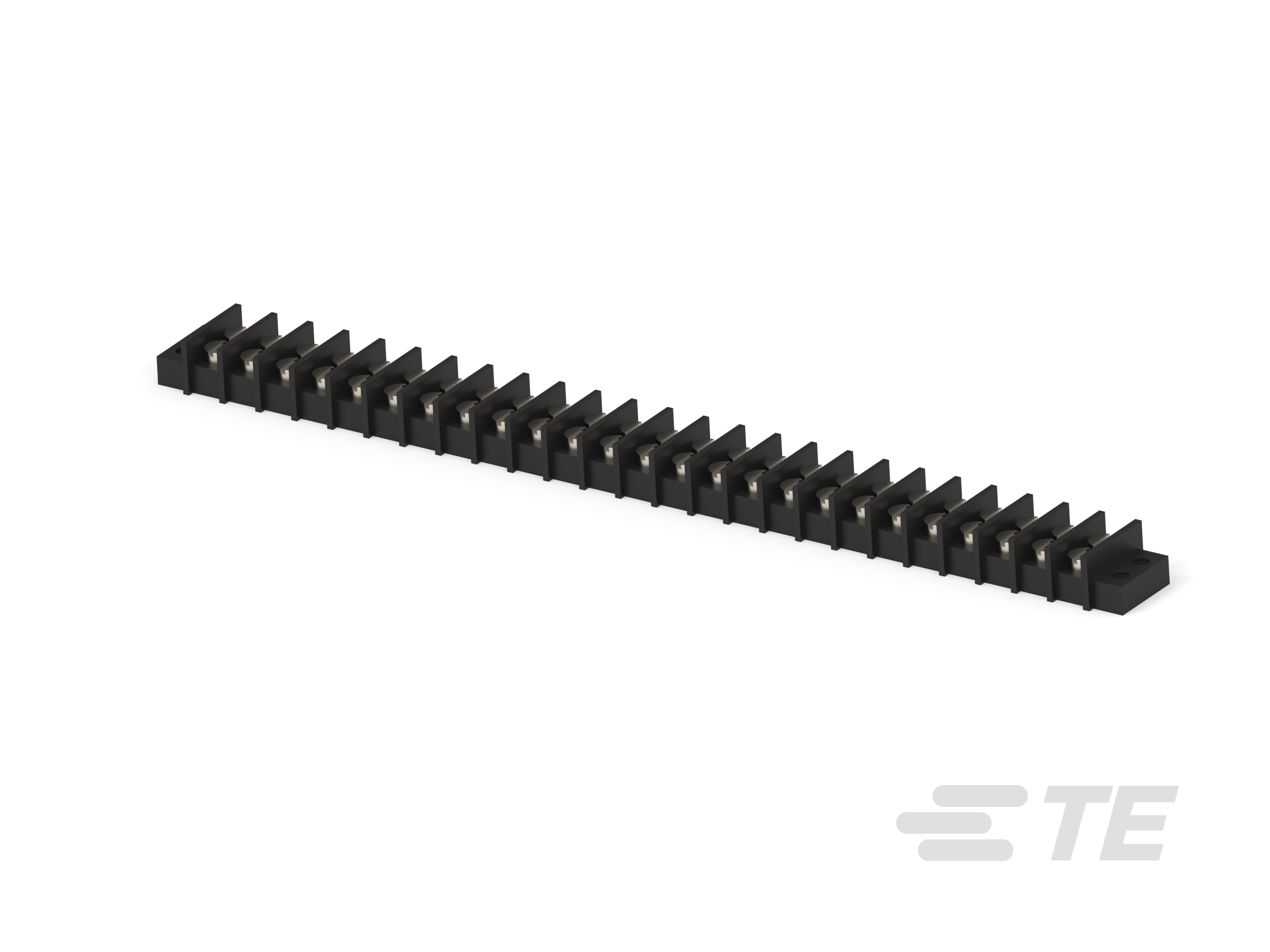

 TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 50 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 25 | Black | Steel | Chassis Panel |
TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 12 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 12 | Black | Brass | Chassis Panel |

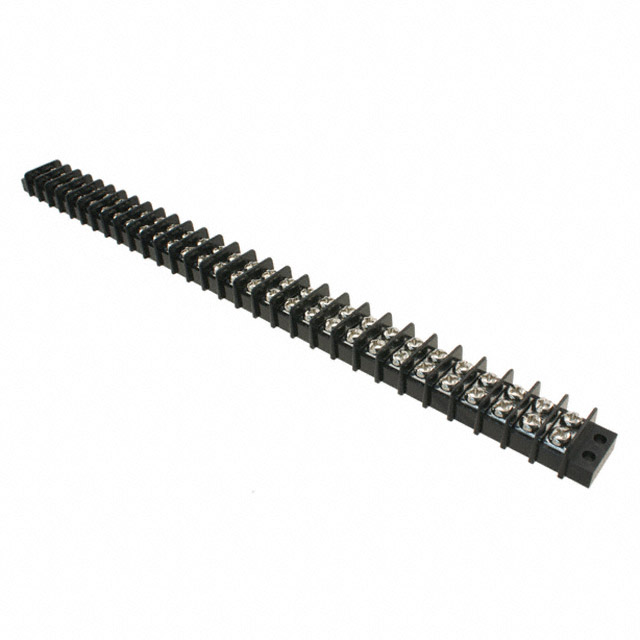

 TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 60 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 30 | Black | Steel | Chassis Panel |
 TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 10 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 5 | Black | Steel | Chassis Panel |

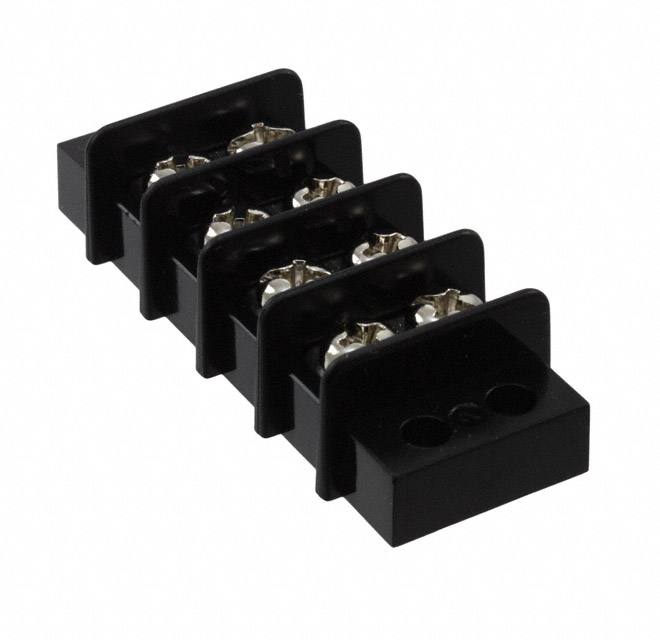

 TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 8 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 4 | Black | Steel | Chassis Panel |
TE Connectivity Raychem Cable Protection | Closed | Screws with Quick Connect Tabs | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 6 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 6 | Black | Steel | Chassis Panel |
TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 18 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | Black | Steel | Chassis Panel | |

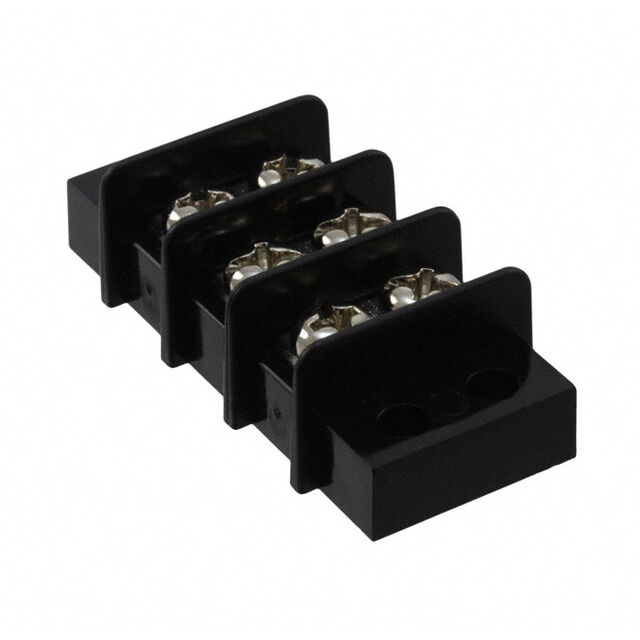

 TE Connectivity Raychem Cable Protection | Closed | Screws | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 6 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 3 | Black | Steel | Chassis Panel |

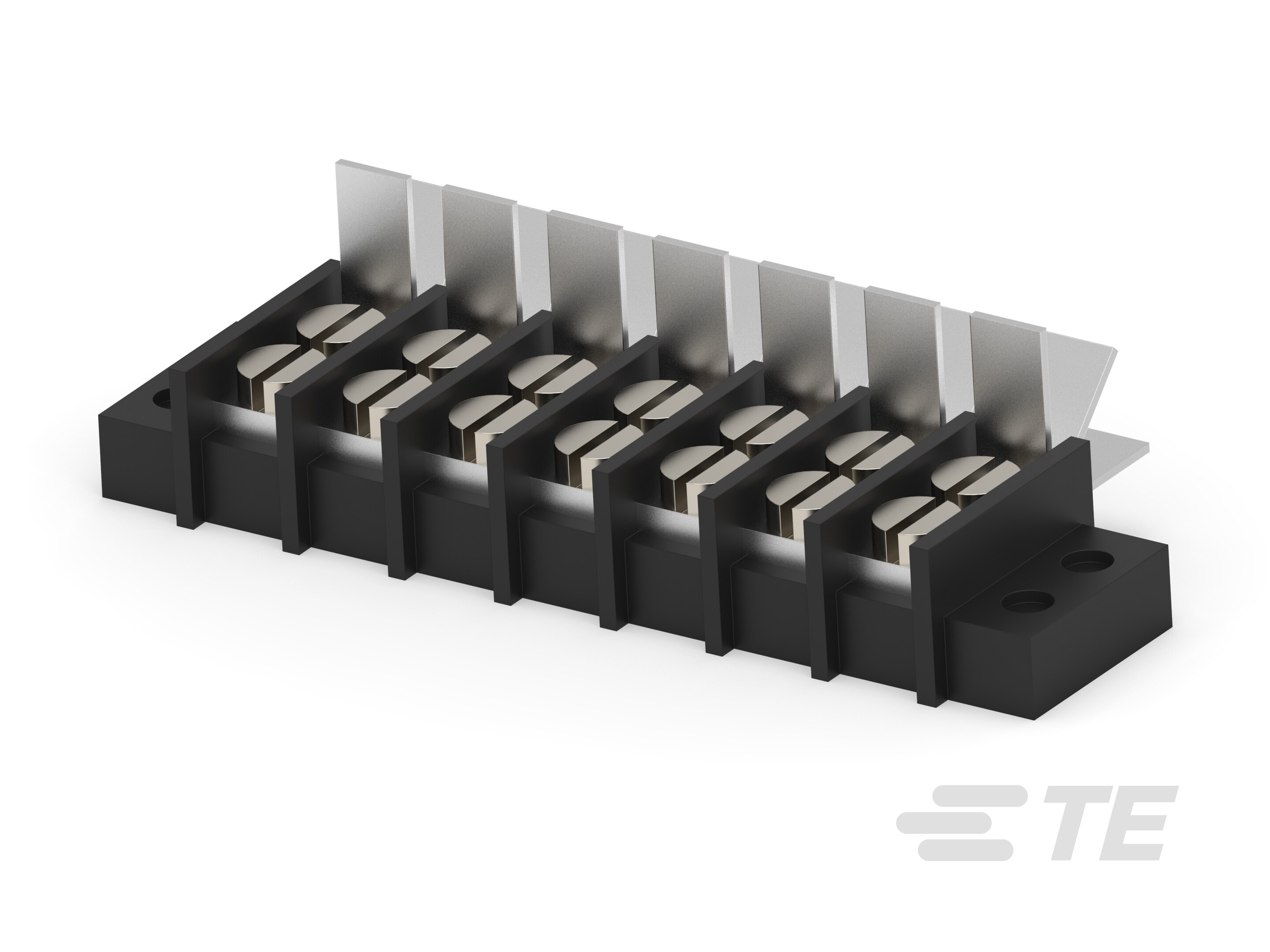

 TE Connectivity Raychem Cable Protection | Closed | Screws with Quick Connect Tabs | 2 | Barrier Block | Flange | 0.374 in | 9.5 mm | 300 VDC | 2 Wall (Dual) | 7 | Thermoplastic | 12 AWG | 22 AWG | Nickel | -40 °C | 120 °C | 20 A | UL94 V-0 | 7 | Black | Steel | Chassis Panel |
