TR9KI1000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

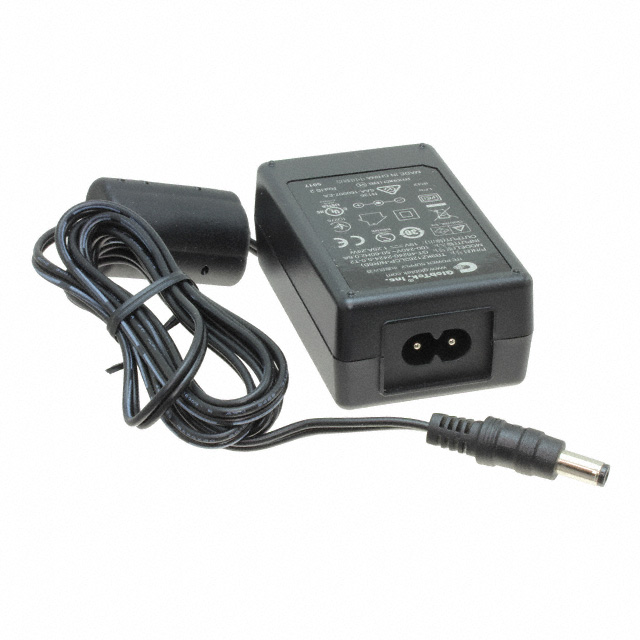

AC/DC DESKTOP ADAPTER 24V 24W
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector [diameter] | Output Connector | Output Connector [x] | Operating Temperature [Max] | Operating Temperature [Min] | Region Utilized | Current - Output (Max) [Max] | Cord Length | Cord Length | Input Type | Form | Efficiency | Input Connector | Power (Watts) | Approval Agency | No Load Power Consumption | Standard Number | Polarization | Voltage - Output | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 264 VAC | 90 VAC | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 40 °C | 0 °C | International | 1 A | 60.2 in | 1.53 m | Cord (Sold Separately) | Desktop (Class II) | Level VI | IEC 320-C8 | 24 W | CB CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI | 75 mW | 60950-1 | Positive Center | 24 V | ITE (Commercial) | 31 mm | 1.97 in | 80.6 mm | 50 mm | 1.22 in | 3.17 in |
