IL-G-12P Series
Manufacturer: JAE Electronics
Beta
⌘K

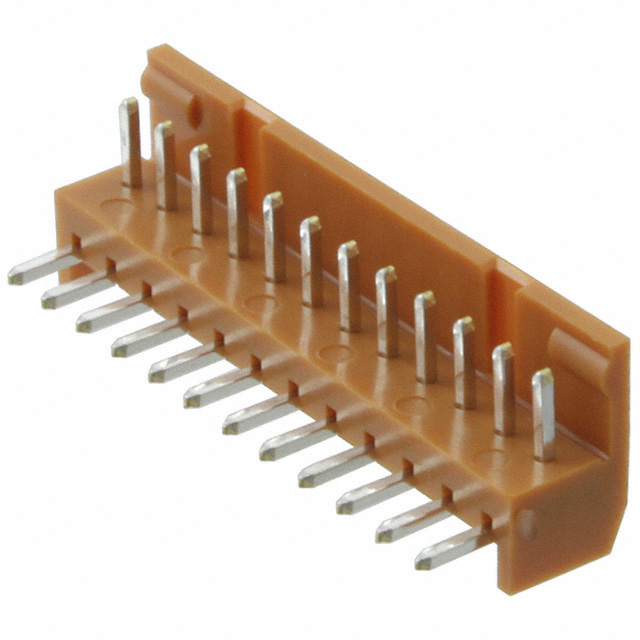

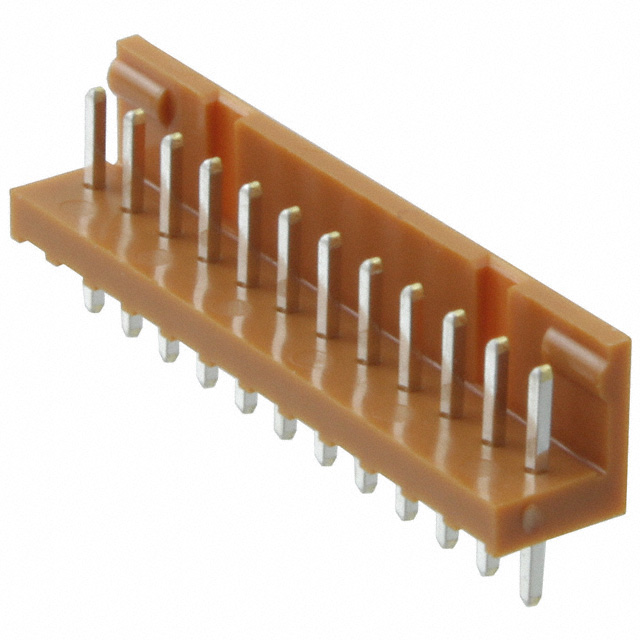

CONN HEADER R/A 12POS 2.5MM
| Part | Fastening Type | Contact Type | Insulation Height [custom] | Insulation Height [custom] | Termination | Current Rating (Amps) | Insulation Color | Insulation Material | Contact Shape | Style | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Shrouding | Contact Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Length - Post | Contact Length - Post | Mounting Type | Number of Rows | Mated Stacking Heights | Overall Contact Length | Overall Contact Length | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Friction Lock | Male Pin | 0.236 " | 6 mm | Solder | 3 A | Brown | Nylon 6/6 Polyamide (PA66) | Square | Board to Cable/Wire | UL94 V-0 | 2.5 mm | 0.098 in | All | 4 mm | 0.157 in | Tin | Shrouded - 1 Wall | Brass | 12 | 85 °C | -40 C | Header | 0.138 in | 3.5 mm | Right Angle Through Hole | 1 | |||||
 JAE Electronics | Friction Lock | Male Pin | Solder | 3 A | Brown | Nylon 6/6 Polyamide (PA66) | Square | Board to Cable/Wire | UL94 V-0 | 2.5 mm | 0.098 in | All | 4 mm | 0.157 in | Tin | Shrouded - 1 Wall | Brass | 12 | 85 °C | -40 C | Header | 0.138 in | 3.5 mm | Through Hole | 1 | 10 mm | 9.6 mm | 0.378 in | 0.28 in | 7.1 mm |
