MTC Series

Rack & Panel Connectors MTC50-BS2-P32

Manufacturer: TE Connectivity AMP Connectors

Catalog

Rack & Panel Connectors MTC50-BS2-P32

Catalog

Rack & Panel Connectors MTC50-BS2-P32

Part	Contact Material	Insulation Material	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Style	Voltage Rating	Mounting Type	Number of Rows [custom]	Number of Positions Loaded	Contact Shape	Contact Finish - Mating	Insulation Color	Current Rating (Amps)	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination	Shrouding	Row Spacing	Row Spacing	Pitch	Pitch	Contact Termination	Wire Type	Contact Finish	Color	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Cable Termination	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
TE Connectivity AMP Connectors MTC100-BXMT-001-302CS015	Copper Alloy	Aluminum Alloy	40	0.1 in	2.54 mm	Receptacle	Male Pin	Threaded	150 °C	-65 ░C	Dust Cap Mounting Flange Mounting Hardware	Board to Cable/Wire	375 V	Panel Mount Through Hole	2	All	Rectangular	Gold	Black	5 A	UL94 V-0	0.1 "	2.54 mm	Solder	Shrouded - 4 Wall
TE Connectivity AMP Connectors MTCC1P-COAX-01S-01CS013
TE Connectivity AMP Connectors 1-1193696-4		Thermoplastic	20			Insert	Female Socket		150 °C	-65 ░C	Sealed			Free Hanging (In-Line)	2											2.54 mm	0.1 "	0.1 "	2.54 mm	Crimp
TE Connectivity AMP Connectors MTC100-JB1-S11			10				Female Socket							Free Hanging (In-Line)														0.05 in	1.27 mm		Discrete	Gold	Black	1	19.5 AWG	26 AWG	Crimp
TE Connectivity AMP Connectors MTCC1P-COAX-01S-01
TE Connectivity AMP Connectors MTC50-BS2-P32	Copper Alloy	Aluminum Alloy	80	0.1 in	2.54 mm	Receptacle	Male Pin	Threaded	125 °C	-65 ░C	Dust Cap Mounting Flange Mounting Hardware	Board to Cable/Wire		Panel Mount Through Hole	2	All	Rectangular	Gold	Black		UL94 V-0	0.1 "	2.54 mm	Solder	Shrouded - 4 Wall													Varies by Wire Gauge	6.1 mm	0.24 in

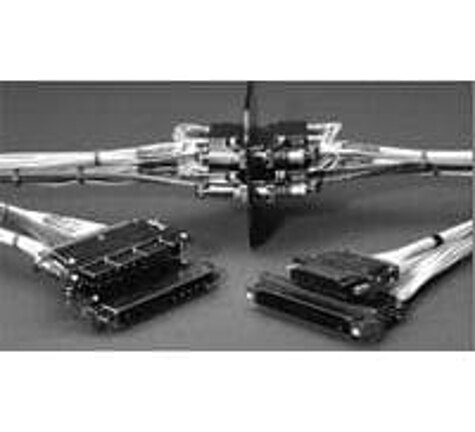

TE Connectivity AMP Connectors MTC100-BF2-P31	Copper Alloy	Aluminum Alloy	40	0.1 in	2.54 mm	Receptacle	Male Pin	Threaded	125 °C	-65 ░C	Dust Cap Mounting Flange Mounting Hardware	Board to Cable/Wire		Panel Mount Through Hole	2	All	Rectangular		Black		UL94 V-0	0.1 "	2.54 mm	Wire Wrap	Shrouded - 4 Wall													Varies by Wire Gauge			14.73 mm	0.58 in
TE Connectivity AMP Connectors CN1471-000			22			Receptacle	Female Socket		125 °C	-65 ░C	Jackscrew			Free Hanging (In-Line)																Crimp
TE Connectivity AMP Connectors MTCC1P-COAX-01S-01			4			Plug					Jackscrews			Free Hanging (In-Line)														0.25 in	6.35 mm		Coaxial			1			Crimp
