VAD2HW6B Series

Catalog

SWITCH ROCKER DPST 20A 12V

Part	Color - Actuator/Cap	Illumination Type, Color	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Switch Function	Mounting Type	Actuator Type	Current Rating (Amps)	Illumination Voltage (Nominal)	Ingress Protection	Approval Agency	Mechanical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC
Carling Technologies VAD2HW6B-APE00-0	Black	Incandescent Red	100000 Cycles	21.08 mm	36.83 mm	No Marking	On-Off	Panel Mount Snap-In	Locking - Illuminated	20 A	12 VAC/DC	IP66/IP68	CSA UL VDE	100000 Cycles	DPST	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	12 V

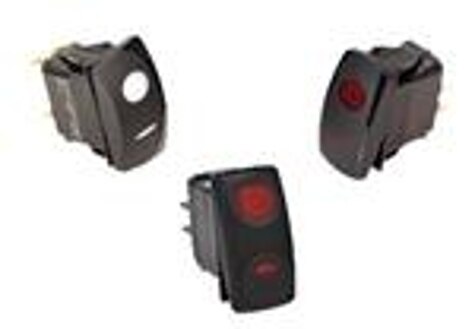

Carling Technologies VAD2HW6B-GPB00-0	Red	Incandescent Red	100000 Cycles	21.08 mm	36.83 mm	No Marking	On-Off	Panel Mount Snap-In	Locking - Illuminated	20 A	12 VAC/DC	IP66/IP68	CSA UL VDE	100000 Cycles	DPST	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	12 V
Carling Technologies VAD2HW6B-APA00-0	Black	Incandescent Red	100000 Cycles	21.08 mm	36.83 mm	No Marking	On-Off	Panel Mount Snap-In	Locking - Illuminated	20 A	12 VAC/DC	IP66/IP68	CSA UL VDE	100000 Cycles	DPST	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	12 V
