ST1200 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

SCR 1.8KV 3080A A24

Part	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Off State (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Supplier Device Package	SCR Type	Current - On State (It (AV)) (Max) [Max]	Package / Case	Voltage - On State (Vtm) (Max) [Max]	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]

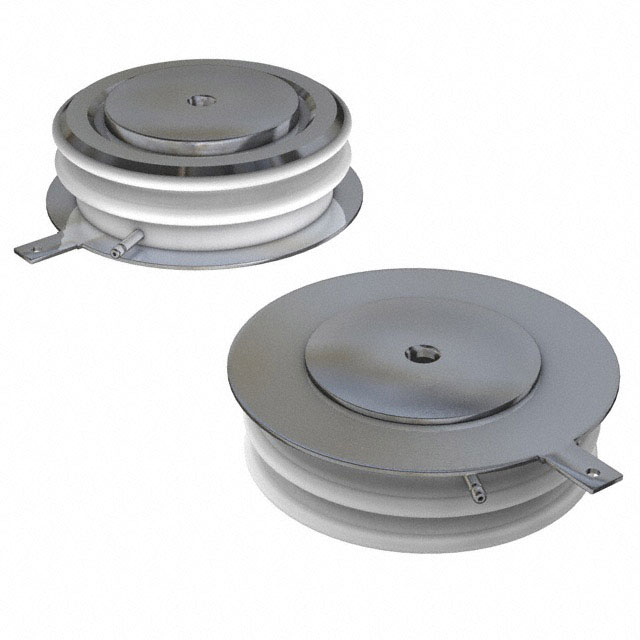

Vishay General Semiconductor - Diodes Division VS-ST1200C18K1	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C	25700 A 26900 A	A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	1.8 kV
Vishay General Semiconductor - Diodes Division VS-ST1200C20K1	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C	25700 A 26900 A	A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	2 kV
Vishay General Semiconductor - Diodes Division VS-ST1200C20K0LP	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C	25700 A 26900 A	A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	2 kV
Vishay General Semiconductor - Diodes Division VS-ST1200C14K0P	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C	25700 A 26900 A	A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	1.4 kV

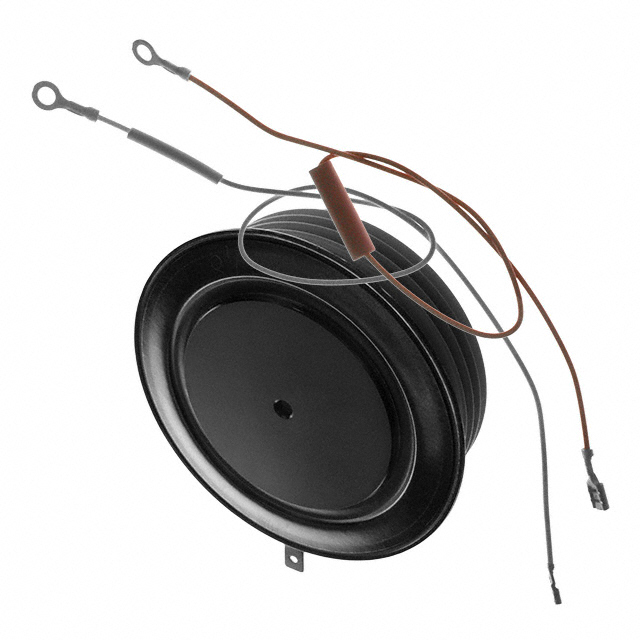

Vishay General Semiconductor - Diodes Division VS-ST1200C20K0	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C		A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	2 kV	32000 A	30500 A
Vishay General Semiconductor - Diodes Division VS-ST1200C20K1P	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C	25700 A 26900 A	A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	2 kV
Vishay General Semiconductor - Diodes Division VS-ST1200C20K0P	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C	25700 A 26900 A	A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	2 kV
Vishay General Semiconductor - Diodes Division VS-ST1200C16K0	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C		A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	1.6 kV	32000 A	30500 A
Vishay General Semiconductor - Diodes Division VS-ST1200C18K0	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C		A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	1.8 kV	32000 A	30500 A
Vishay General Semiconductor - Diodes Division VS-ST1200C12K0	200 mA	3080 A	100 mA	Clamp On	125 °C	-40 °C		A-24 (K-Puk)	Standard Recovery	1650 A	A-24 K-PUK TO-200AC	1.73 V	1.2 kV	32000 A	30500 A
