194017 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

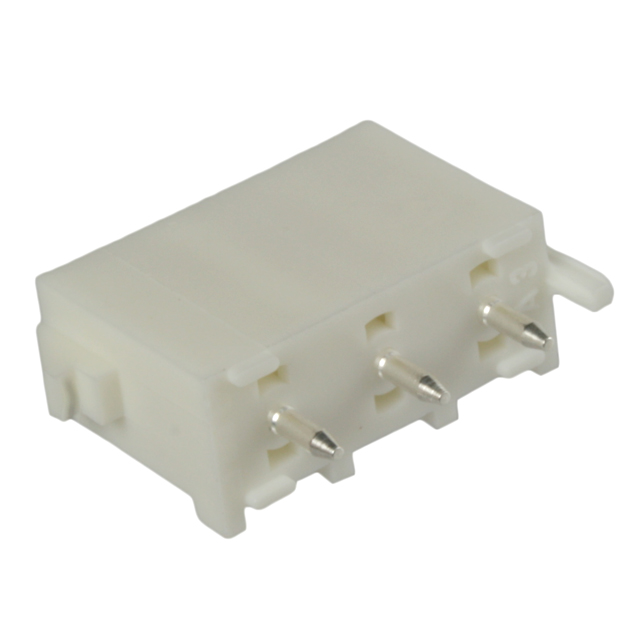

CONN HEADER VERT 3POS 6.35MM
| Part | Mounting Type | Number of Positions Loaded | Connector Type | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Contact Length - Post | Contact Length - Post | Insulation Material | Contact Shape | Style | Insulation Height | Insulation Height | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Pitch - Mating | Pitch - Mating | Number of Rows | Shrouding | Contact Material | Applications | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole | All | Header | UL94 V-0 | 5.08 µm | 200 µin | Board Guide | 0.145 in | 3.68 mm | Nylon Polyamide (PA) | Circular | Board to Cable/Wire | 0.55 in | 13.97 mm | Solder | 105 ░C | -55 °C | Male Pin | 6.35 mm | 0.25 in | 1 | Shrouded - 4 Wall | Copper Alloy | General Purpose | Locking Ramp | Silver |
