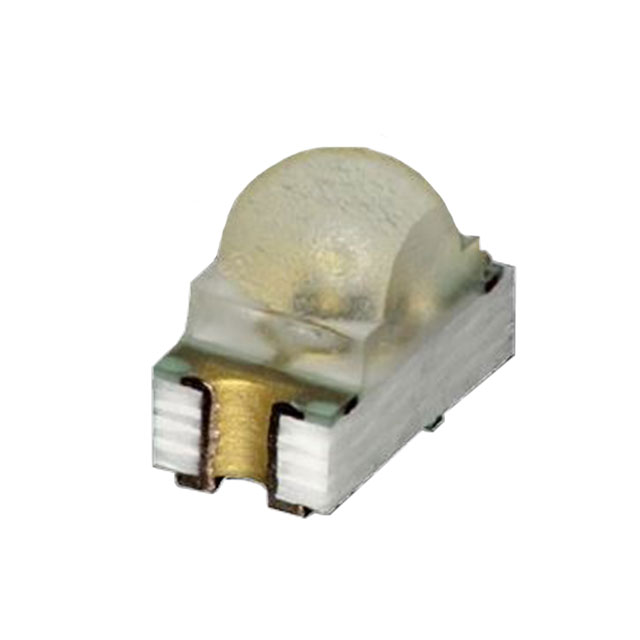

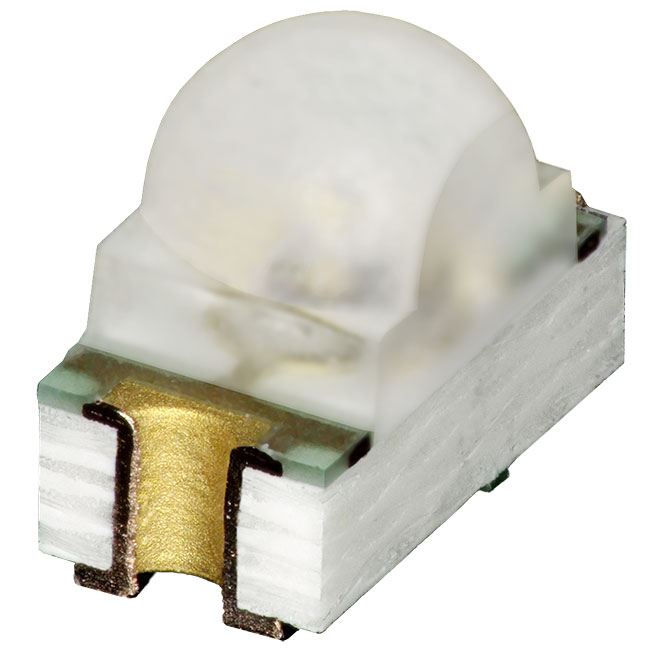

Automotive, Yellow-green chip LED with high brightness lens
Automotive, Yellow-green chip LED with high brightness lens
Automotive, Yellow-green chip LED with high brightness lens
| Part | Current - Test | Grade | Color | Mounting Type | Package / Case | Wavelength - Dominant | Height (Max) [Max] | Lens Size [x] | Lens Size [y] | Size / Dimension [x] | Size / Dimension [y] | Millicandela Rating | Lens Style | Voltage - Forward (Vf) (Typ) | Qualification | Lens Size [diameter] | Lens Transparency | Lens Color | Wavelength - Dominant [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 20 mA | Automotive | Yellow | Surface Mount | 0603 (1608 Metric) | 590 nm | 1.34 mm | 1.14 mm | 0.8 mm | 1.6 mm | 0.8 mm | 320 mcd | Rectangle with Domed Top | 2.1 V | AEC-Q102 | ||||
 Rohm Semiconductor | 20 mA | Automotive | Yellow | Surface Mount | 0603 (1608 Metric) | 587 nm | 1.34 mm | 1.14 mm | 0.8 mm | 1.6 mm | 0.8 mm | 280 mcd | Rectangle with Domed Top | 2.1 V | AEC-Q102 | ||||
Rohm Semiconductor | 20 mA | Automotive | Surface Mount | 0603 (1608 Metric) | 605 nm | 1.34 mm | 1.14 mm | 0.8 mm | 1.6 mm | 0.8 mm | 400 mcd | Rectangle with Domed Top | 2.1 V | AEC-Q102 | |||||
Rohm Semiconductor | 20 mA | Automotive | Red | Surface Mount | 0603 (1608 Metric) | 620 nm | 1.34 mm | 1.14 mm | 0.8 mm | 1.6 mm | 0.8 mm | 280 mcd | Rectangle with Domed Top | 2.1 V | AEC-Q102 | ||||
Rohm Semiconductor | 20 mA | Automotive | Yellow-Green | Surface Mount | 0603 (1608 Metric) | 571 nm | 1.34 mm | 1.14 mm | 0.8 mm | 1.6 mm | 0.8 mm | 120 mcd | Rectangle with Domed Top | 2.1 V | AEC-Q102 | ||||
Rohm Semiconductor | 20 mA | Surface Mount | 0603 (1608 Metric) | 605 nm | 1.34 mm | 1.6 mm | 0.8 mm | 400 mcd | Round with Domed Top | 2.1 V | 1.14 mm | Clear | Colorless | ||||||
 Rohm Semiconductor | 20 mA | Automotive | Green | Surface Mount | 0603 (1608 Metric) | 560 nm | 1.34 mm | 1.14 mm | 0.8 mm | 1.6 mm | 0.8 mm | 25 mcd | Rectangle with Domed Top | 2.1 V | AEC-Q102 | ||||
Rohm Semiconductor | 5 mA | Automotive | Green | Surface Mount | 0603 (1608 Metric) | 1.34 mm | 1.14 mm | 0.8 mm | 1.6 mm | 0.8 mm | 360 mcd | Rectangle with Domed Top | 3 V | AEC-Q102 | 527 nm | ||||
 Rohm Semiconductor | 20 mA | Red | Surface Mount | 0603 (1608 Metric) | 630 nm | 1.34 mm | 1.6 mm | 0.8 mm | 180 mcd | Round with Domed Top | 2.1 V | 1.14 mm | Clear | Colorless |
