1033-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Contact Material	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish
Mill-Max Manufacturing Corp. 1033-0-15-80-30-84-10-0	-55 C	125 °C	No Tail	2.54 µm	100 µin	5.16 mm	0.203 in	Beryllium Copper	5.16 mm	0.203 in	1.45 mm	0.057 in	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Tin

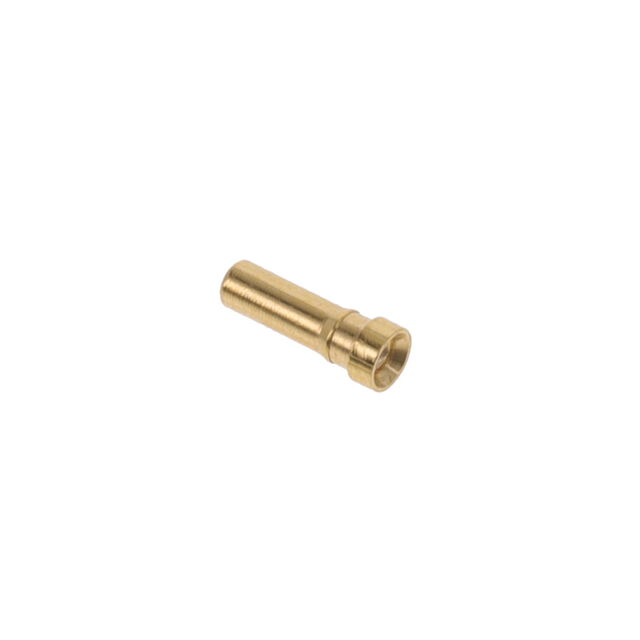

Mill-Max Manufacturing Corp. 1033-0-15-15-30-14-10-0	-55 C	125 °C	No Tail	0.25 Ám	10 Áin	5.16 mm	0.203 in	Beryllium Copper	5.16 mm	0.203 in	1.45 mm	0.057 in	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold
Mill-Max Manufacturing Corp. 1033-0-15-01-30-14-10-0	-55 C	125 °C	No Tail	0.25 Ám	10 Áin	5.16 mm	0.203 in	Beryllium Copper	5.16 mm	0.203 in	1.45 mm	0.057 in	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold
Mill-Max Manufacturing Corp. 1033-0-15-80-30-27-10-0	-55 C	125 °C	No Tail	0.76 Ám	30 Áin	5.16 mm	0.203 in	Beryllium Copper	5.16 mm	0.203 in	1.45 mm	0.057 in	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold
