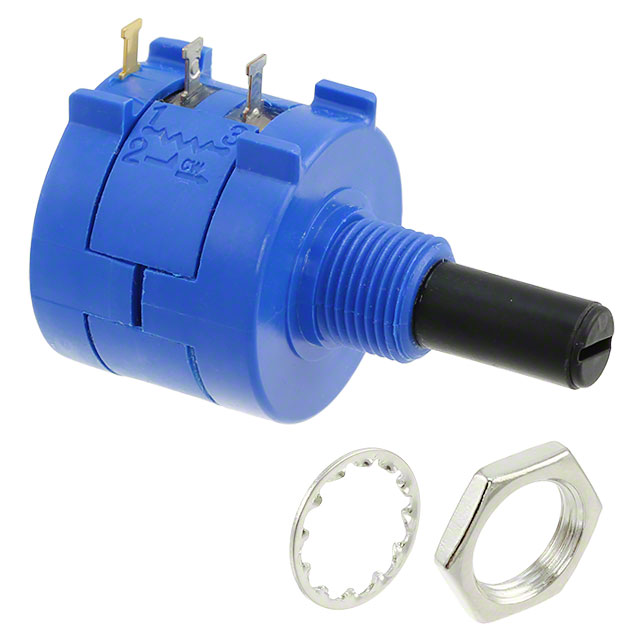

3590S Series
Manufacturer: Bourns Inc.
Beta
⌘K
PRECISION POTENTIOMETERS 7/8" WW 200OHM .25% 10TURN
| Part | Size - Body [diameter] | Size - Body [diameter] | Rotation | Adjustment Type | Tolerance | Power (Watts) | Number of Turns | Termination Style | Resistive Material | Actuator Length [x] | Actuator Length [x] | Taper | Mounting Type | Resistance (Ohms) [custom] | Actuator Type | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Gangs | Bushing Thread | Temperature Coefficient | Built in Switch | Resistance (Ohms) | Resistance (Ohms) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | 200 Ohms | Slotted | 0.2497 in | 6.34 mm | 1 | 3/8-32 | 50 ppm/░C | None | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | Slotted | 0.2497 in | 6.34 mm | 1 | 3/8-32 | 50 ppm/░C | None | 1k | |||
 Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | Slotted | 0.248 " | 6.3 mm | 1 | 3/8-32 | 50 ppm/░C | None | 5 kOhms | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | Slotted | 0.248 " | 6.3 mm | 1 | 3/8-32 | 50 ppm/░C | None | 2 kOhms | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | 50 kOhms | Slotted | 0.248 " | 6.3 mm | 1 | 3/8-32 | 50 ppm/░C | None | |||
 Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | Slotted | 0.2497 in | 6.34 mm | 1 | 3/8-32 | 50 ppm/░C | None | 5 kOhms | Sealed | ||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | Slotted | 0.236 in | 6 mm | 1 | M9 x 0.375 | 50 ppm/░C | None | 10k | Sealed | ||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | Slotted | 0.248 " | 6.3 mm | 1 | 3/8-32 | 50 ppm/░C | None | 20 kOhms | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | Slotted | 0.248 " | 6.3 mm | 1 | 3/8-32 | 50 ppm/░C | None | 5 kOhms | |||
Bourns Inc. | 22.23 mm | 0.875 " | 3600 ° | User Defined | 5 % | 2 W | 10 | Solder Lug | Wirewound | 0.812 in | 20.63 mm | Linear | Panel Mount | 500 Ohms | Slotted | 0.2497 in | 6.34 mm | 1 | 3/8-32 | 50 ppm/░C | None |
