TC12-11 Series

Catalog

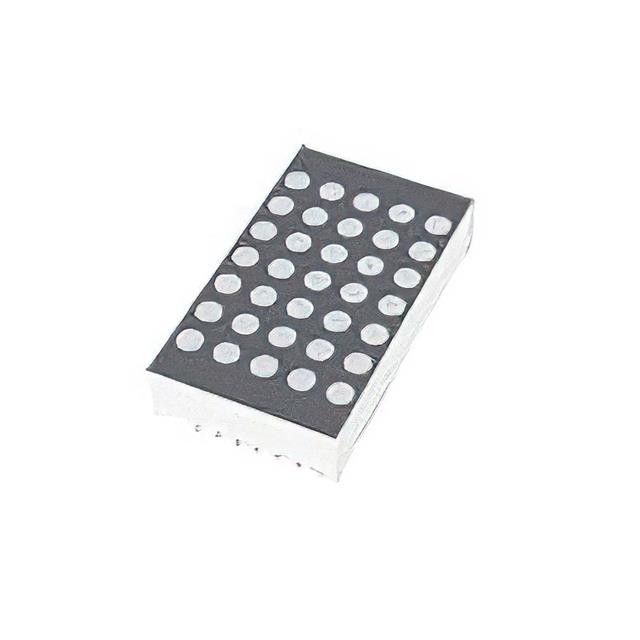

1.2" 5X7 DOT MATRIX RED LED DISP

Part	Internal Connection	Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Configuration [x]	Configuration [y]
Kingbright TC12-11SURKWA	Common Cathode	Red	0.9 in	0.32 "	8 mm	22.9 mm	1.54 in	39 mm	130 mcd	1.85 V	5	7
Kingbright TC12-11EWA	Common Anode Row Common Cathode Column	Red	1.54 in	0.32 "	8 mm	39 mm	0.9 in	22.9 mm	14 mcd	2 V	5	7
Kingbright TC12-11SRWA	Common Anode Row Common Cathode Column	Red	0.9 in 1.54 in	0.32 "	8 mm	22.9 mm 39 mm	0.9 in 1.54 in	22.9 mm 39 mm	45 mcd	1.85 V	5	7
