796608 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN BARRIER STRP 30CIRC 0.375"
| Part | Operating Temperature | Terminal Screw Finish | Material Flammability Rating | Mounting Type | Terminal Screw Material | Material - Insulation | Number of Wire Entries | Number of Rows | Color | Terminal Block Type | Current Rating (Amps) | Pitch | Pitch | Voltage Rating | Top Termination | Barrier Type | Bottom Termination | Number of Circuits | Wire Gauge [Max] | Wire Gauge [Min] | Number of Circuits [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

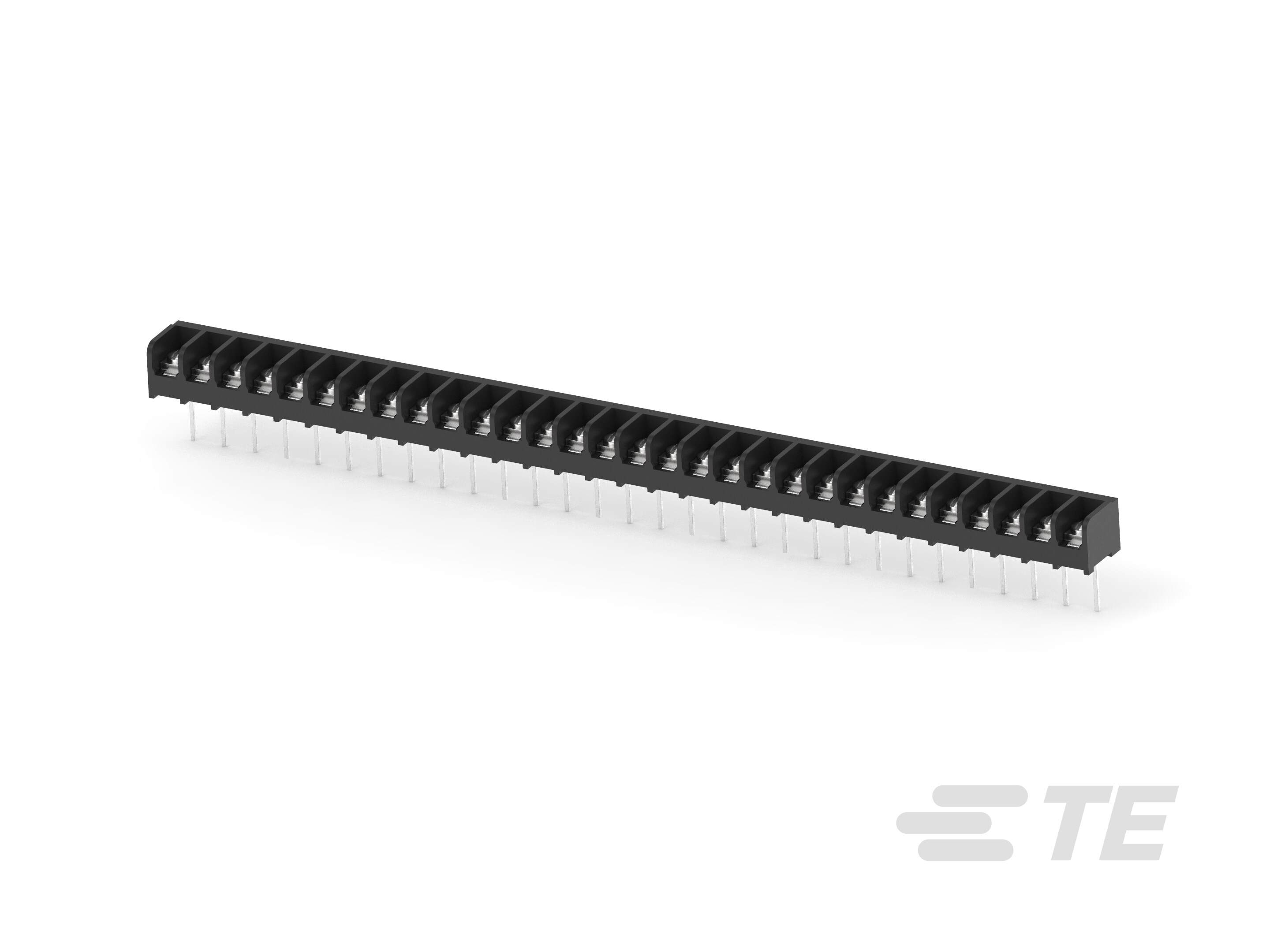

 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Through Hole | Steel | Thermoplastic | 30 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 30 | 22 AWG | 12 AWG | ||

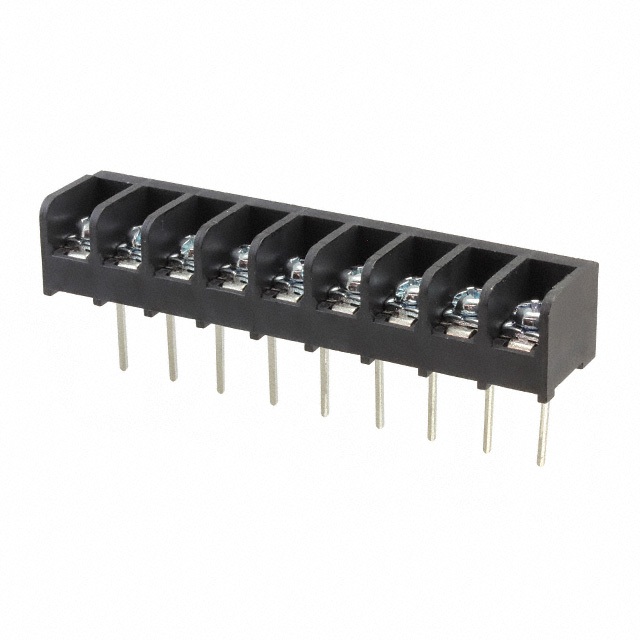

 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Through Hole | Steel | Thermoplastic | 9 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 22 AWG | 12 AWG | 9 | ||
 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Through Hole | Steel | Thermoplastic | 22 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 22 | 22 AWG | 12 AWG | ||
 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Chassis Panel Through Hole | Steel | Nylon Polyamide (PA) | 14 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 14 | 22 AWG | 17.5 AWG | Flange | |
 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Chassis Panel Through Hole | Steel | Nylon Polyamide (PA) | 27 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 27 | 22 AWG | 17.5 AWG | Flange | |
 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Through Hole | Steel | Thermoplastic | 18 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 18 | 22 AWG | 12 AWG | ||

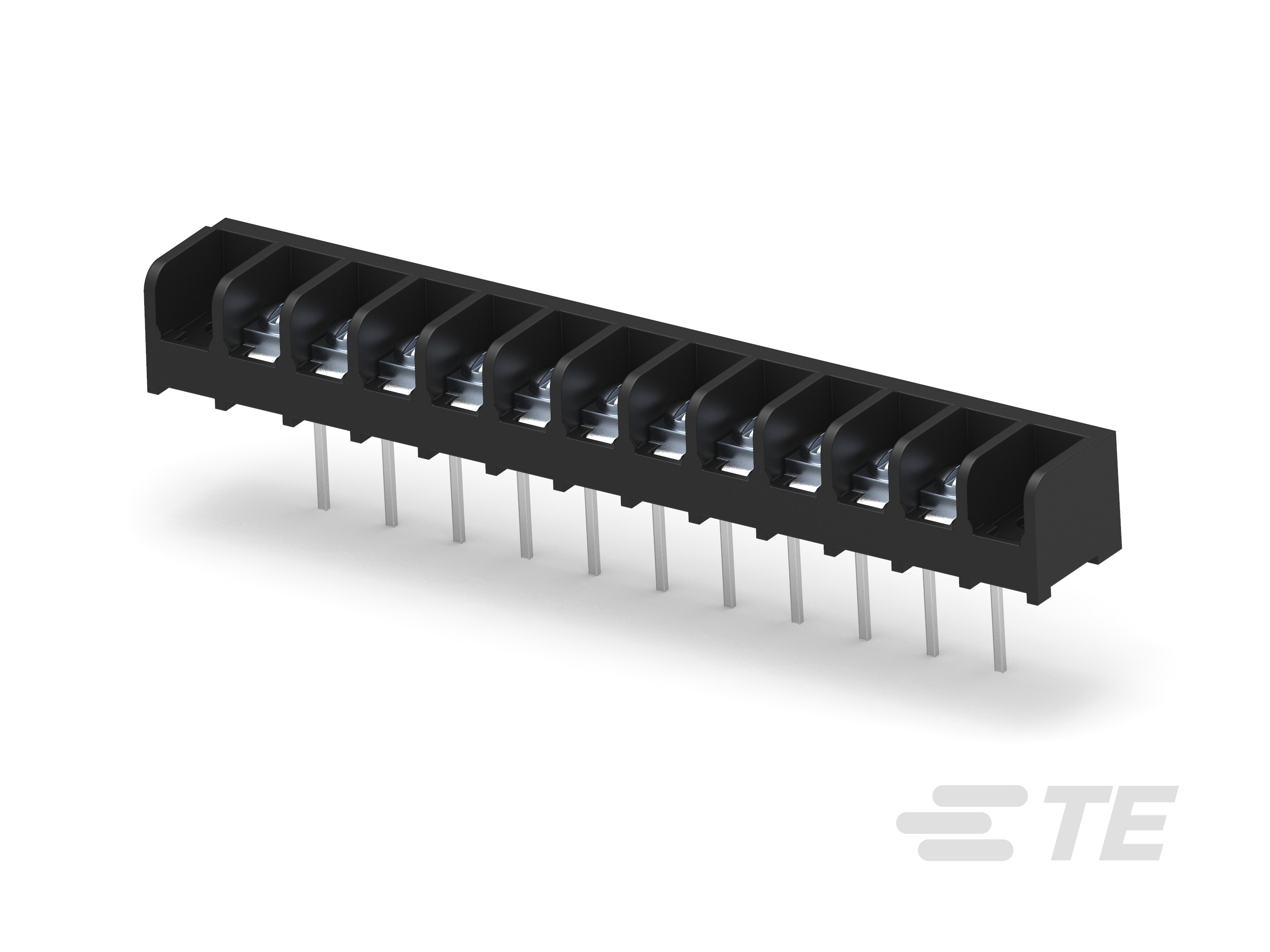

 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Chassis Panel Through Hole | Steel | Nylon Polyamide (PA) | 11 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 11 | 22 AWG | 17.5 AWG | Flange | |
TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Chassis Panel Through Hole | Steel | Nylon Polyamide (PA) | 25 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 25 | 22 AWG | 17.5 AWG | Flange | |
 TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Chassis Panel Through Hole | Steel | Nylon Polyamide (PA) | 13 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 13 | 22 AWG | 17.5 AWG | Flange | |
TE Connectivity AMP Connectors | 105 C | Clear Chromate Zinc | UL94 V-0 | Chassis Panel Through Hole | Steel | Nylon Polyamide (PA) | 19 | 1 | Black | Barrier Block | 25 A | 9.53 mm | 0.375 in | 300 VDC | Screws with Captive Plate | 3 Wall (Tri) | Wire Wrap | 19 | 22 AWG | 17.5 AWG | Flange |
