628-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

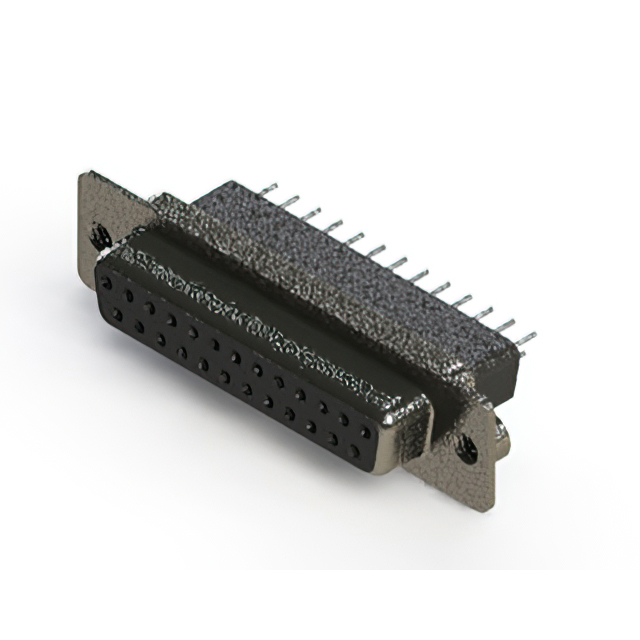

CONN D-SUB RCPT 25POS VERT SLDR
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Type | Termination | Flange Feature | Number of Positions | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Type | Contact Finish | Number of Rows [custom] | Connector Style | Material Flammability Rating | Current Rating (Amps) | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Through Hole | Solder | Board Side (4-40) | 25 | Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | ||||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Through Hole | Solder | Board Side (4-40) | 25 | Board Lock Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | Nickel Plated Steel | 0.38 µm | 15 µin | |
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Through Hole | Solder | Board Side (4-40) | 25 | Board Lock Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Free Hanging (In-Line) | Board Side (4-40) | 25 | Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | Flash | ||||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Through Hole | Solder | Board Side (4-40) | 25 | Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | Nickel Plated Steel | 0.38 µm | 15 µin | |
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Free Hanging (In-Line) | Board Side (4-40) | 25 | Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | Flash | ||||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Free Hanging (In-Line) | Board Side (4-40) | 25 | Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | Nickel Plated Steel | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Through Hole | Solder | Board Side (4-40) | 25 | Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | Nickel Plated Steel | Flash | ||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Through Hole | Solder | Board Side (4-40) | 25 | Board Lock Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | Receptacle Female Sockets | Through Hole | Solder | Board Side (4-40) | 25 | Shielded | B DB | 3 | Signal | Gold | 2 | D-Sub | UL94 V-0 | 3 A | Nickel Plated Steel | 0.76 Ám | 30 Áin |
